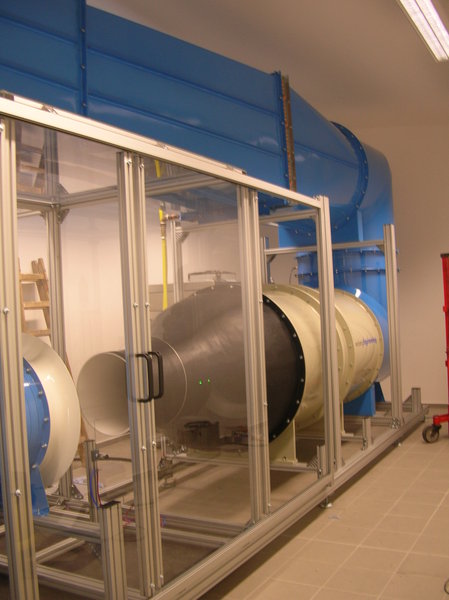

Göttinger-Type Wind Tunnels
The wind tunnel according to the Göttingen-type is a circular tunnel and has a closed circuit. Wind tunnels according to the Göttingen-type may be operated optionally by means of a closed or open section of measurements. In the case of this type, the distance between the blower and the section of measurements is very large in comparison to wind tunnels designed in a different way. In spite of the closed flow circuit, the flows induced by the blower are, however, barely measurable
The essential advantage of a wind tunnel according to the Göttigen-type is that the power requirements of the blower are significantly reduced.
All wind tunnels are designed and manufactured by us in accordance with the requirements of the individual customer specifications.
Technical data: |
|
|
Diameter of jet outlet: |
320 mm |
|
Length of measuring section: |
468 mm |
|
Contraction ratio: |
8 |
|
Max flow velocity: |
0.1 bis 70 m/s |
|
Turbulence ratio at 20 m/s: |
0.3% - 0.5% |
|
Fan connection: |
400 V / 50 Hz |
|
Motor output: |
12 kW |
|
Dimensions (width, height, length): |
2790 x 1600 x 6995 mm |
Modifications are possible on request.
