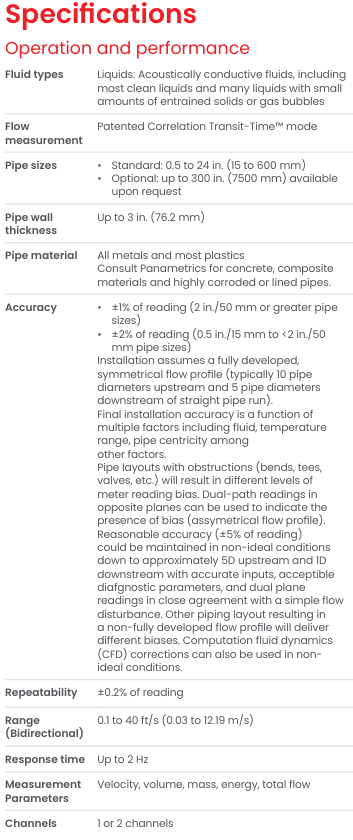

TransPort PT900 specifications

Operation and performance
Fluid types
Liquids: Acoustically conductive fluids, including most clean
liquids and many liquids with small amounts of entrained
solids or gas bubbles
Flow measurement
Patented Correlation Transit-Time™ mode

Pipe sizes
• Standard: 0.5 to 24 in. (15 to 600 mm)
• Optional: up to 300 in. (7500 mm) available upon request

Pipe wall thickness
Up to 3 in. (76.2 mm)

Pipe material
All metals and most plastics
Consult Panametrics for concrete, composite materials and
highly corroded or lined pipes.

Accuracy
• ±1% of reading (2 in./50 mm or greater pipe sizes)
• ±2% of reading (0.5 in./15 mm to <2 in./50 mm pipe sizes)
Installation assumes a fully developed, symmetrical flow profile
(typically 10 pipe diameters upstream and 5 pipe diameters
downstream of straight pipe run).
Final installation accuracy is a function of multiple factors
including fluid, temperature range, pipe centricity among
other factors.

Repeatability
±0.2% of reading

Range (Bidirectional)
0.1 to 40 ft/s (0.03 to 12.19 m/s)

Response time
Up to 2 Hz

Measurement Parameters
Velocity, volume, mass, energy, total flow

Channels
1 or 2 channels
