압전 센서 Piezoelectric for continuous measurements
압전 센서 Piezoelectric for continuous measurements
압전 센서 Piezoelectric for continuous measurements 모델명: DQC001.15

► Different models with different lengths of submersible ventilated cable for pressure compensation

► Analogue output: 4 ÷ 20 mA

► Wide thermal compensation up to 70 ° C



※ For industry and laboratory application only

제품 카달로그
견적문의
제품특징

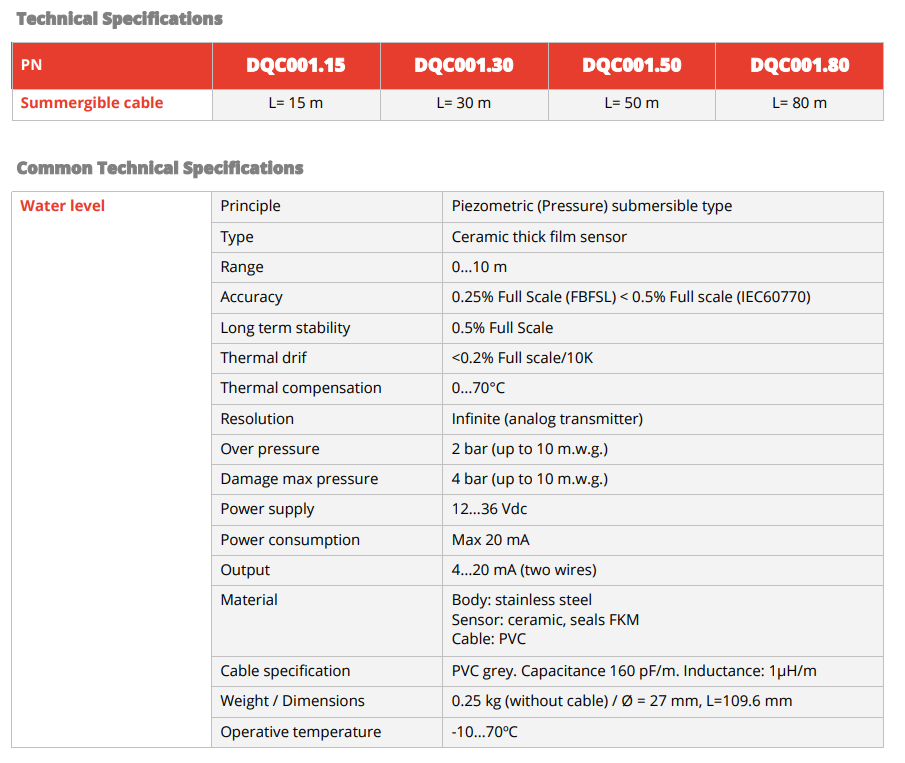

상세사양

Piezometric submersible sensors designed for continuous level measurement in water applications. The sensor has a stainless steel housing and a flush ceramic diaphragm which prevents from the build up of solids of time and makes it easy to clean. The piezoelectric element detects the pressure difference between its location and the atmospheric pressure on the surface. This pressure difference is proportional the water level above the sensor. A special (ventilated) cable connects the sensor sensing element with the surface.
