3상 참조 표준 Three Phase Reference Standard 모델명: TS23

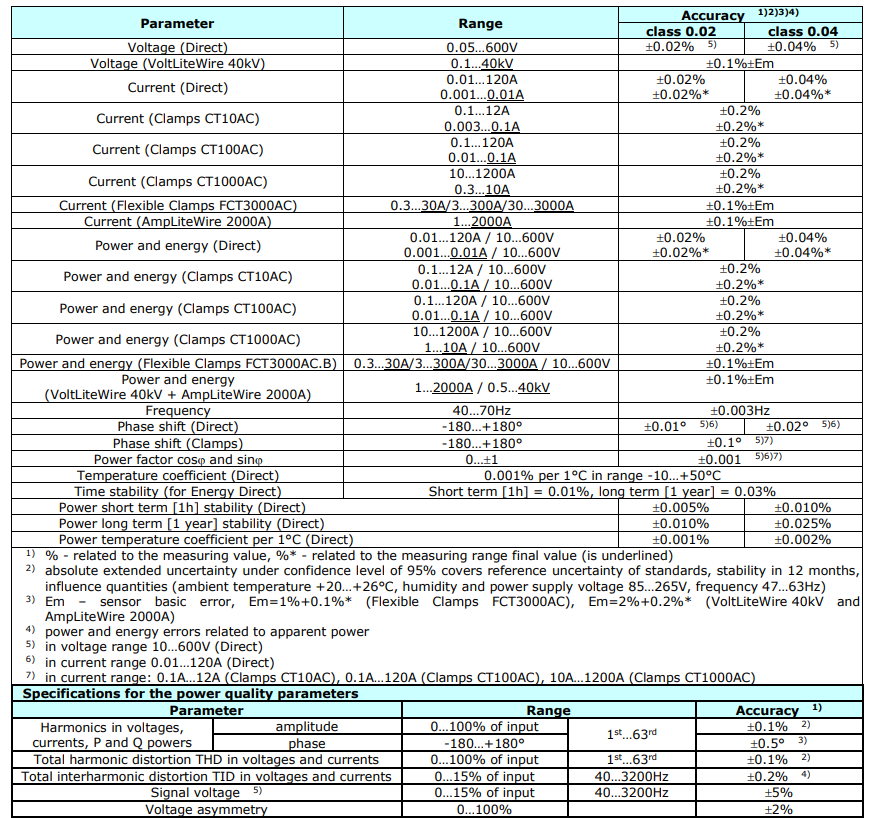

► Measures power and energy in 0.02 or 0.04 accuracy class
► Voltage range: 0.05…600V and 0.1…40kV
► Current range direct input: 1mA…120A and with current clamps: 120A, 1200A, 30/300/3000A
► Display of vector diagram, phase sequence, waveform oscilloscope, harmonics spectrum bar and trend charts for analysis of the mains conditions
► Testing of Electricity Meters and CT/PT Transformers
► The measurement system may be used either as a standalone reference standard meter class 0.02, 0.04 in laboratory or test bench station or as portable working standard for measurements on site
► Data readout and test system control via USB, Ethernet and Bluetooth and Calmet TS PC soft
► Modern SD flash memory card up to 32GB for storage of customer data and measurement results
► Large 7" color Touchscreen
► Two pulse inputs for simultaneously testing of 2 meters or testing in two quadrants
※ For industry and laboratory application only
제품 카달로그
제품문의
Three phase reference standard of accuracy 0.02% (or 0.04%). It makes possible electricity meters testing on the site or in the laboratory up to 3x120A/600V.
