고출력 3상 완전 자동 테스트 시스템 High Power Three-phase Fully Automatic Test System 모델명: TS41
► Easy verification of meters under precise load conditions, using integrated current and voltage source
► Automatic operation with predefined load points without need of an external PC
► High output power per channel: up to 300VA for current and up to 150VA for voltage
► Modern SD flash memory card up to 32GB for storage of customer data and measurement results
► Display of vector diagram, phase sequence, wave form oscilloscope, harmonics spectrum bar and trend charts for analysis of the mains conditions
► User-friendly system for data input and operation of combined source and reference meter
► The system may be used as a stand-alone reference standard meter class 0.02 or 0.04, or together with the integrated power source, or power source with reference meter for new or modernized test bench station
► Data readout and test system control via USB & Ethernet
► 4-wire voltage output and sense connection
제품 카달로그
견적문의

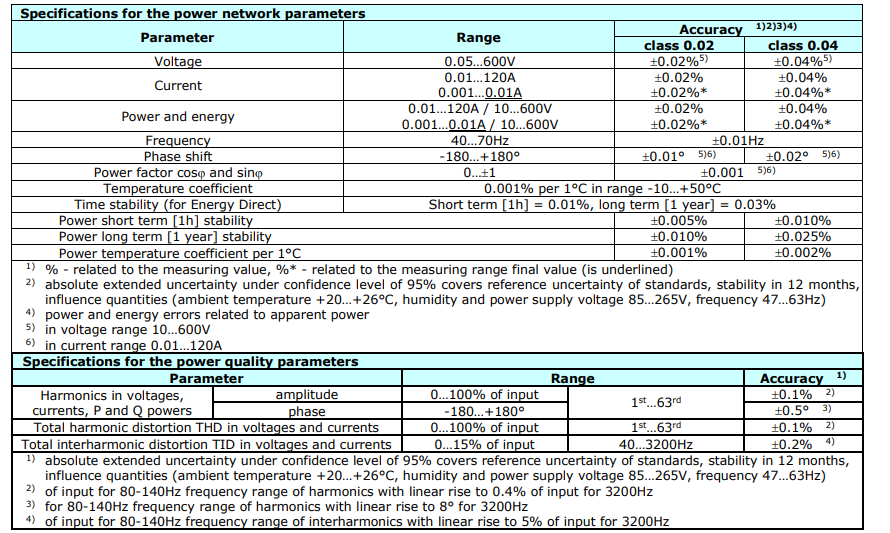

The Calmet TS41 test system consists of a three-phase reference meter of accuracy class 0.02% (or 0.04%) and an integrated three-phase current and voltage source up to 3x120A/600V. It makes possible automatic testing of electricity meters in meter test stations.
