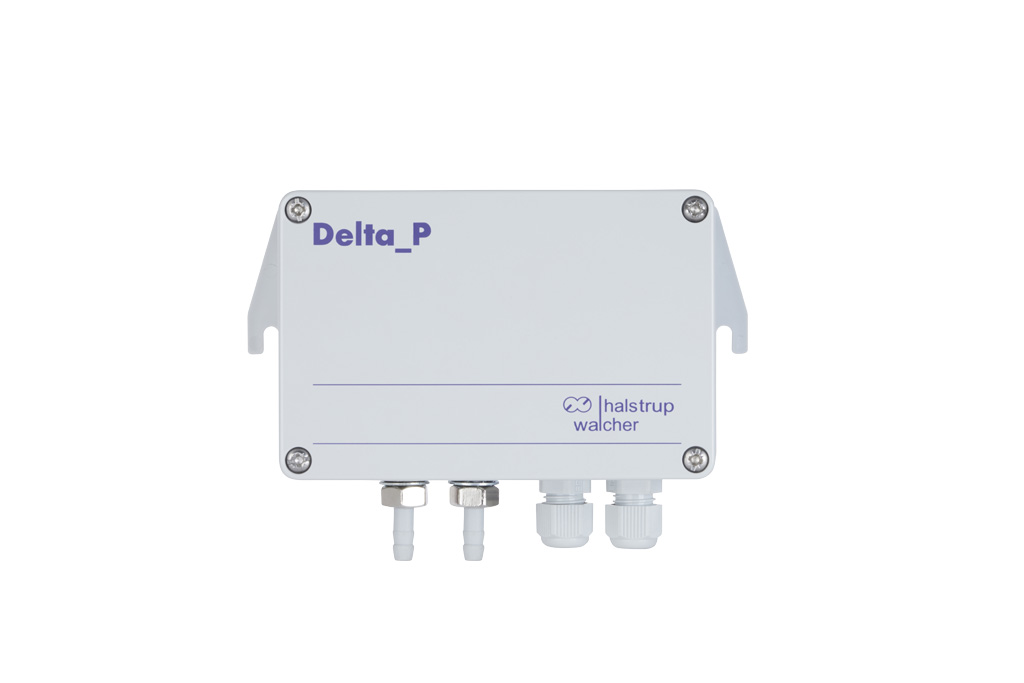

Differential pressure transmitter available in a range of precision classes for measurement of positive or negative differential pressures

Special features

• High level of accuracy

• Little zero point drift or hysteresis; largely independent of temperature

• LCD display (optional)

• Output signal: 0 .. 10 V (PU), 0/4 .. 20 mA (PI)

• Factory-adjusted attenuation of the output signal of up to 5 s possible (optional)

• Can be calibrated

These differential pressure transmitters are available in a wide range of precision classes and therefore suitable for applications in the heating, air-conditioning and ventilation industries as well as sophisticated laboratory applications. An optional display allows measurement values to be read directly on-site in Pa, kPa or mmH 2 O. An optional time constant (up to 5s) allows the instrument to generate an attenuated output signal, even under fluctuating pressure conditions.

Options

• Available with an factory calibration certificate or calibration certificate according to DKD-R 6-1 (optional).

Measurement ranges

50 / 100 / 250 / 500 Pa1 / 2.5 / 5 / 10 / 20 / 50 / 100 kPaOthers available upon request

Margin of error (0,3 Pa for the reference)

± 0.2 % of max. value for measurement ranges ≥ 250 Pa and ≤ 50 kPa± 0.5 % of max. value± 1 % FS

Output (signal)

PU: 0 .. 10 V (R_L ≥ 2 k Ω)PI: 0/4 .. 20 mA (R_L ≤ 500 Ω)

Display

3 1/2 digit, 4 1/2 digit

Protection class

IP 65

Power supply

24 VDC, +20 % / -15 %24 VAC, +6 % / -15 %115 VAC, +6 % / -15 %230 VAC, +6 % / -15 %
