제품소개 Products

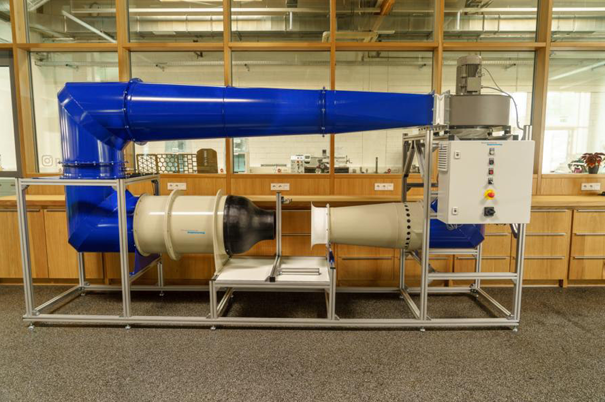

풍동 the Göttinger-Type Wind Tunnels 모델명: Type WK 825535-E
제품 카달로그
견적문의
Technical data: |
|
Diameter of jet outlet: |
255 mm |
Length of measuring section: |
350 mm |
Contraction ratio: |
4 |
Max flow velocity: |
0.3 m/s 35 m/s |
Turbulence ratio at 20 m/s: |
0.3% - 0.5% |
Fan connection: |
230 V / 50 Hz |
Motor output: |
3 kW |
Dimensions (width, height, length): |
1400 x 2100 x 4100 mm |
