초음파 카메라 가스 누설 감지기 모델명: Ultrasonic Gas Leak Detection Camera
Principles

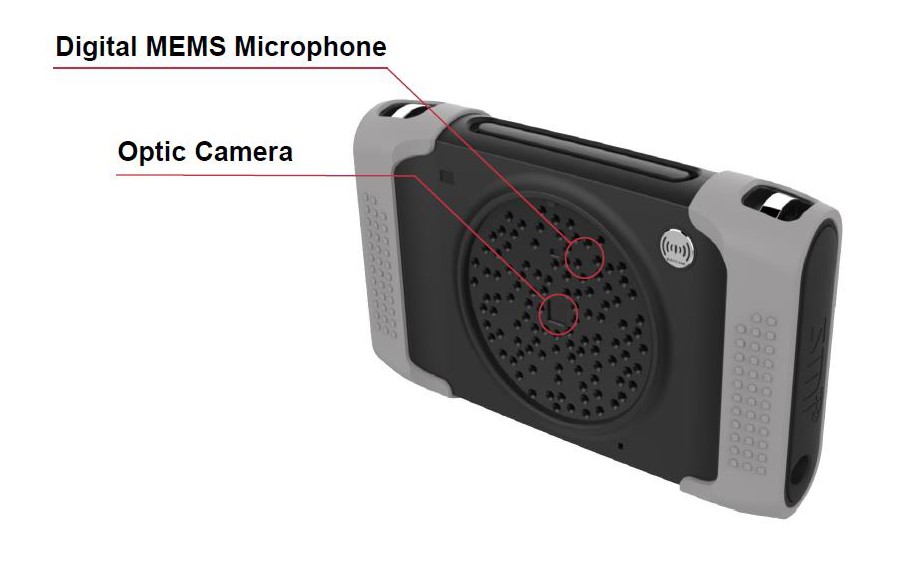

► Analyze frequency of sound source and delay from ultrasonic sensor array
► separate each sound source by analyzing time delay per individual sound frequency
► Pinpoint location of sound source (leak) on the image of optic camera
제품 카달로그
견적문의
적용 사례 및 판매 가능 APPLICATION 소개 (ULTRASONIC CAMERA GAS LEAK DETECTOR)
Technical Spec |
|
Detection Method |
Beamforming Technology |
Sensor Type |
112 Ch Digital MEMS |
Frequency Range |
2 k ~ 48 kHz |
Microphone Sensitivity |
-41 dBFS |
Signal-to-noise Ratio (SNR) |
66 dB(A) |
Detection Range* |
0.3 m ~ 50 m (depends on condition) |
Frame Rate |
25 FPS |
Display |
5 inch 640 x 480 touch screen interface |
Internal Storage |
50 GB, save up to 170 hours |
File Format |
JPG, AVI |
Display Output |
HDMI x 1 |
Audio Output |
3.5 mm audio jack |
External Storage |
USB 2.0 for data backup and FW update |
System Language |
English, Korean, Chinese, French |
Self-diagnose |
Self-diagnose mode available |
General Spec |
|
Dimensions |
237 mm x 146 mm x 56 mm |
Weight |
1.2 kg |
Storage Temp |
-20 ~ 70 °C |
Operating Temp |
-20 ~ 50 °C |
Operating Humidity |
10 to 85%RH |
Operating Hours* |
4 hours |
Battery Pack** |
Rechargeable battery pack |
Warranty Period |
12 months limited warranty |
Approvals |
|
LVD/EMC |
EN50032:2015/AC:2016, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013 |
Wireless |
FCC, KC |
Battery |
IEC52133:2012, EN62133:2013, UN38.3 |
Accessories |
|
Power Adaptor |
12V LEMO 3P connector |
Neck Strap |
For Cleanroom |
