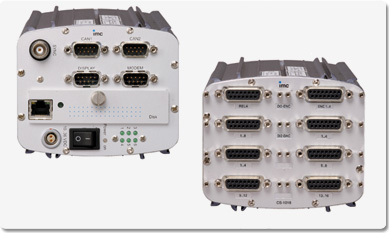

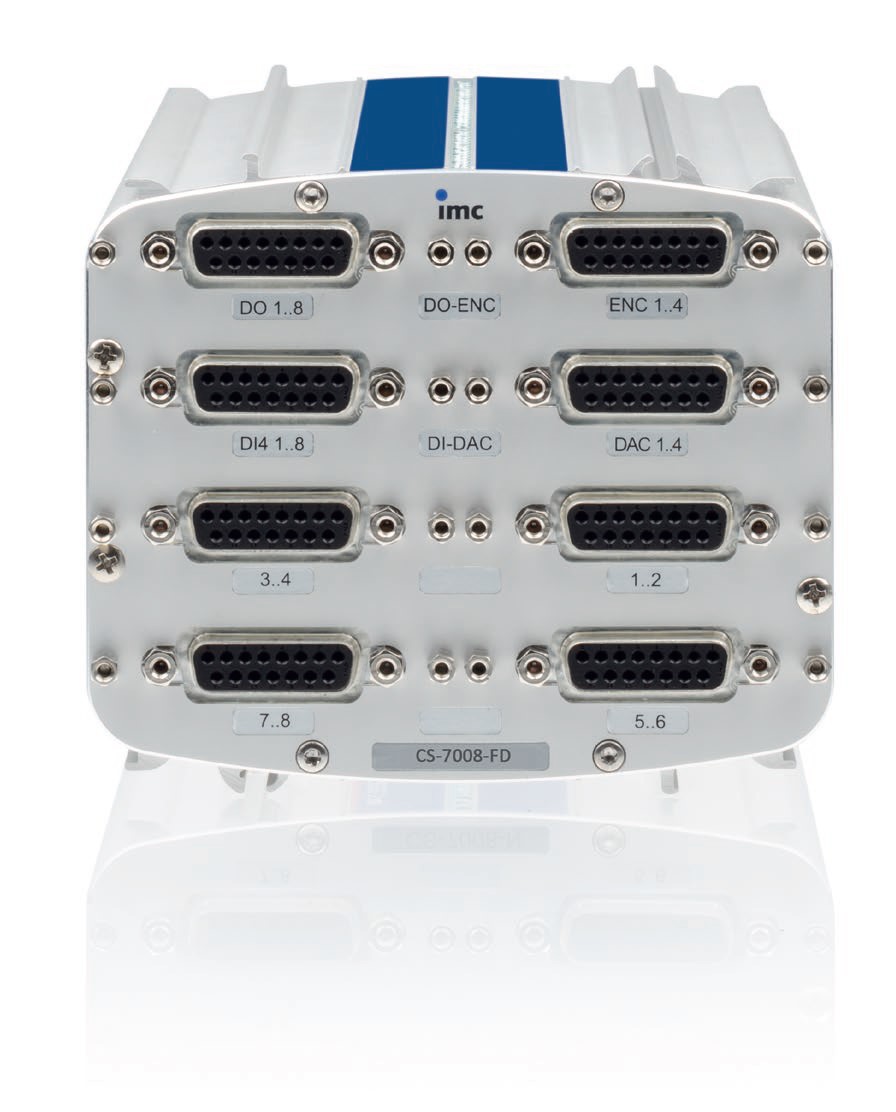

컴팩트 데이터 수집 장비 모델명: C-SERIES
► Portable measurement and control system
► All data synchronous: analog, digital, CAN or CAN FD
► Up to 400 kS/s per system and up to 100 kS/s per channel
► Universal signal conditioner
► Networkable with other imc systems for synchronous acquisition of thousands of channels
► Integrated real-time analysis and data reduction
► Stand-alone, remote or interactive operation (via Ethernet TCP/IP connection)
제품 카달로그
견적문의
Productive testing with imc C-SERIES
Portable design goes wherever you go
♦ All-in-one design ensures the essential I/O is always ready for your testing
♦ Integrated signal conditioning means the convenience of a one-box solution
♦ Supports all electromechanical sensors in mixed-signal measurements
♦ Software based configurations are easily stored, loaded, and modified to meet test demands
Maximize your test efficiency
♦ Real-time data processing while the test is running; so results are immediately available
♦ Intuitive trigger system stores only the important data for easier post-processing
♦ Easily switch between interactive, remote, or stand-alone operation as tests require
♦ Standardized hardware addresses all your testing needs
Saving your money
♦ Universal amplifiers incorporate signal conditioning for most sensors types, from static to
highly dynamic measurements
♦ Synchronous recording of analog, digital and CAN-based signals in one system
♦ Future-proof: also supports the new fast CAN FD standard
♦ imc’s unique breakout connectors provide quick connections for any existing sensor
♦ Supports sensor-based automatic sensor recognition, and add-on TEDS from imc
♦ Expandable via distributed synchronous CAN I/O modules
Gaining your independence
♦ Measurement and real-time control in one unit
♦ Portable design goes from field to test bench as your testing requires
♦ Stand-alone operation with the flip of a software switch when the PC cannot be used
♦ Includes power-up self-start and internal storage
Securing your investment
♦ Robust and reliable wide range DC power supply
♦ Guaranteed data integrity even upon power outage: integrated Super-Cap ensures safe termination of onboard storage
♦ Redundant data storage options: to local flash media in addition to parallel storage on PC or network drive (NAS)
|
CS |
CL |
General |
||
Aggregate sampling rate |
400 kSps |
|
Housing type |
alu profile |
portable polyme |
Weight |
2 kg |
3.5 kg |
Operating conditions |
||
Standard operating temp. range |
standard |
optional |
Extended temp. range (incl. condensation) |
|
|
Shock and vibration rating |
MIL 810F (40g) |
|
Connectivity |
||
Ethernet |
|
|
WLAN (WiFi) internal |
|
|
GPS connection port |
|
|
Display connection port |
|
|
Display integrated |
|
|
Remote controlled main switch |
|
|
Synchronization signal |
|
|
Isolated SYNC signal |
|
|
Programmable status feedback (LEDs) |
|
|
Data storage |
||
CF card slot (Compact Flash) |
|
|
Storage on PC / network drive |
|
|
Hard disk (internal) |
|
|
Stand-alone capabilities |
||
PC independent complex trigger functionality |
|
|
Onboard real-time data analysis (imc Online FAMOS) |
|
|
Autarkic PC-less operation, self start |
|
|
Synchronization & clock |
||
Master-Slave between different systems |
|
|
NTP network based synchronization |
|
|
Via external GPS signal |
|
|
Via externem IRIG-B & DCF-77 signal |
|
|
Field bus extensions |
||
CAN (2 nodes) incl. CAN FD (max. 8 MBaud) |
|
|
Pulse counter and process control (digital I/O, analog out) |
||
8 bit digital in, 8 bit digital out |
|
|
4 pulse counter (2 chan quadrature mode) |
|
|
4 channel analog out (DAC) |
|
|
Power supply |
||
DC input 10V to 32V |
|
|
AC/DC adaptor (110 to 230VAC) |
|
|
Data integrity upon power fail |
|
|
Short-term UPS |
|
|
Automatic shutdown after power failure |
|
|
Isolated power supply input |
|
|
Software |
||
imc STUDIO test & measurement software |
|
|
imc REMOTE WebServer |
|
|
