산소 센서 Oxygen Deficiency Monitor 모델명: Series 1300

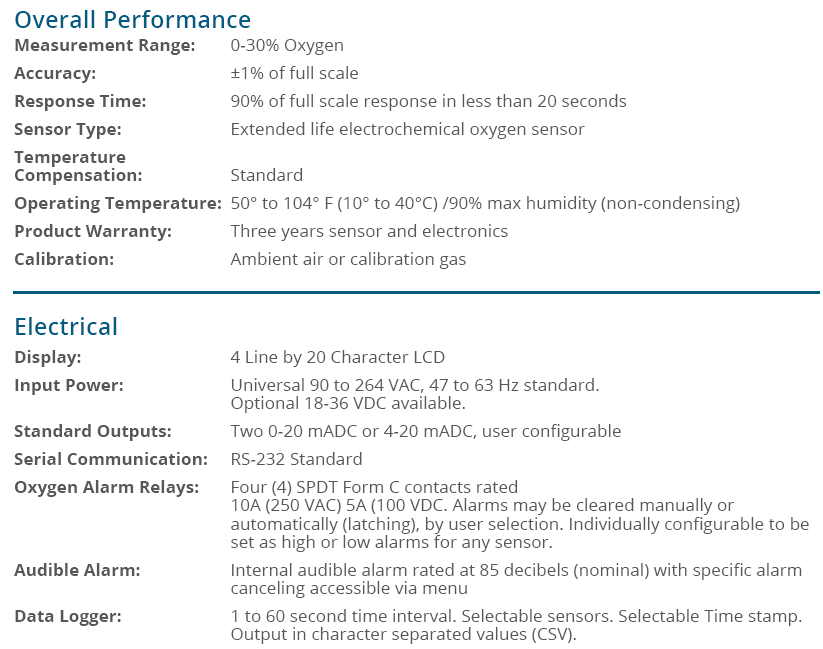

▶ Measurement Range: 0-30% Oxygen
▶ Accuracy: ±1% of full scale
▶ Response Time: 90% of full scale response in less than 20 seconds
▶ Sensor Type: Extended life electrochemical oxygen sensor
▶ Temperature Compensation: Standard
▶ Operating Temperature: 50° to 104° F (10° to 40°C) /90% max humidity (non-condensing)
▶ Calibration: Ambient air or calibration gas
제품 카달로그
제품 매뉴얼
견적문의
Full Three-Year Sensor Warranty: Unprecedented sensor warranty for trouble-free and cost-effective operation.
Multiple Sensor Operation: Per point pricing around $1.5K (with 3 sensors)
Four Alarm Relays Standard: Users can select a multiple of alarming functions
Insensitive to Air Currents: Won’t produce erroneous oxygen readings from air movement as does high temperature zirconium oxide sensors
Protects from Frequent False Alarms: Helps to alleviate false low oxygen alarms typical of fuel cell oxygen sensors
No sensor failures from high temperature fatigue: When heated zirconium oxide sensors fail, often both the sensor and electronics board needs replacement-a costly proposition
Built-in Data Logger Standard: Provides easy method of downloading and displaying oxygen values
Open sensor diffuser: Does not require a pump for aspiration of the air
