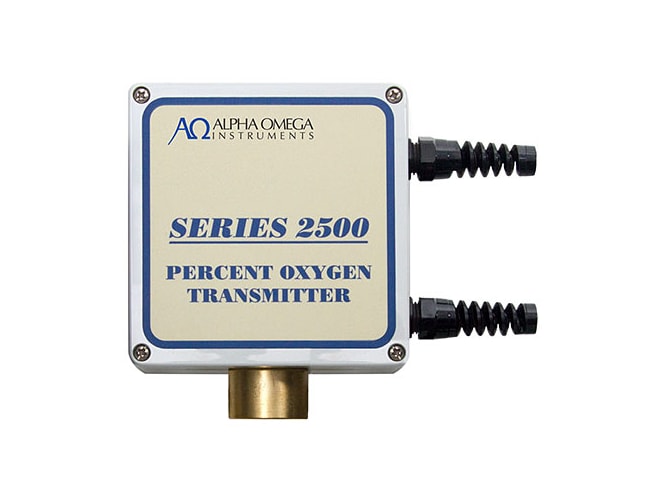

방폭 산소 트랜스미터 Explosion Proof Percent Oxygen Transmitters 모델명: Series 2500 EX
▶ Measurement Ranges
in Percent: 0-2/100
0-5/100
0-10/100
0-25/100
0-100/10
Switchable Range (Calibrated on the first range)
▶ Accuracy1: ±1% of full scale (± 5% of full scale on ranges ≤ 0-5%)
▶ Response Time: 90% of full scale response in less than 20 seconds (typical)
▶ Sensor Type: Long-life electrochemical sensor
▶ Temperature Compensation: Standard
▶ Operating Temperature Range: 40° to 104° F (5° to 40°C)
▶ Input power: 14-32 VDC
※ For industry and laboratory application only
제품 카달로그
제품 매뉴얼
제품문의
A factory Certificate of Performance Verification and Calibration is included at no additional charge. The product performance is verified in accordance with manufacturing specifications using a National Institute of Standards and Technology (NIST) traceable transfer calibrated standard gas mix.
Wide Number of Ranges: Measure from <0.1% to 100% Oxygen
Exceptional Speed of Response: Responds Instantaneously to Changes in Oxygen
Rugged and Versatile Construction: Light weight corrosion resistant copper-free aluminum NEMA 7 housing
Economically Priced: Save Thousands of Dollars vs Other Methods
Patented Extended Life Sensor: Eliminates Frequent Sensor Replacement
Acid Gas Resistant Sensor: Eliminates Sample Conditioning for Many Applications
