제품소개 Products

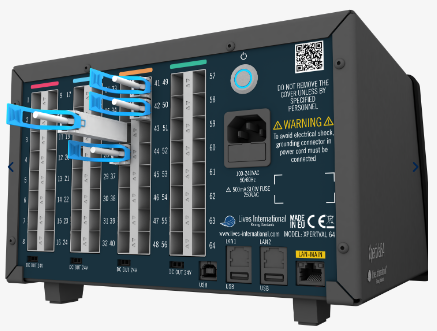

64 Channels Thermocouple Systems 모델명: XPERTVAL 64

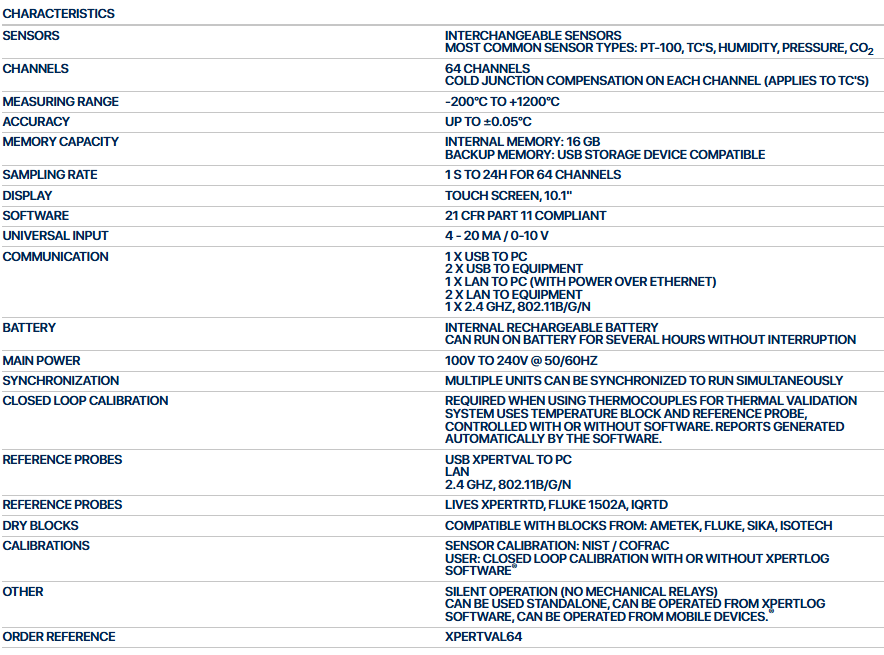

▶ SENSORS : INTERCHANGEABLE SENSORS MOST COMMON SENSOR TYPES: PT-100, TC'S, HUMIDITY, PRESSURE, CO2
▶ CHANNELS : 64 CHANNELS COLD JUNCTION COMPENSATION ON EACH CHANNEL (APPLIES TO TC'S)
▶ MEASURING RANGE : -200°C TO +1200°C
▶ ACCURACY : UP TO ±0.05°C
▶ MEMORY CAPACITY : INTERNAL MEMORY: 16 GB BACKUP MEMORY: USB STORAGE DEVICE COMPATIBLE
▶ SAMPLING RATE : 1 S TO 24H FOR 64 CHANNELS
▶ DISPLAY : TOUCH SCREEN, 10.1"
▶ SOFTWARE : 21 CFR PART 11 COMPLIANT
▶ UNIVERSAL INPUT : 4 - 20 MA / 0-10 V
※ For industry and laboratory application only
제품 카달로그
견적문의

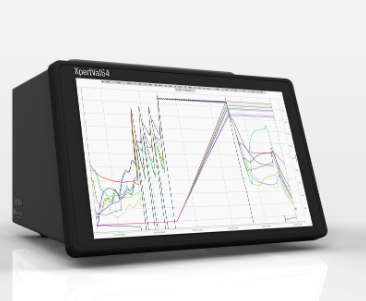

XPERTVAL 64
-90°C TO +140°C
64 CHANNELS DATA ACQUISITION SYSTEM FOR THERMAL MAPPING AND VALIDATION WITH MULTIPLE TYPES OF SENSOR (PT-100, TC, PRESSURE, HUMIDITY).
+ 64 CHANNELS THERMOCOUPLE SYSTEMS
+MOST COMMON SENSOR TYPES
+ COEFFICIENTS STORED FOR EACH SENSOR
+ SENSORS COMPATIBLE WITH XPERTMON
+ CLOUD/LOCAL BASED DATA STORAGE
