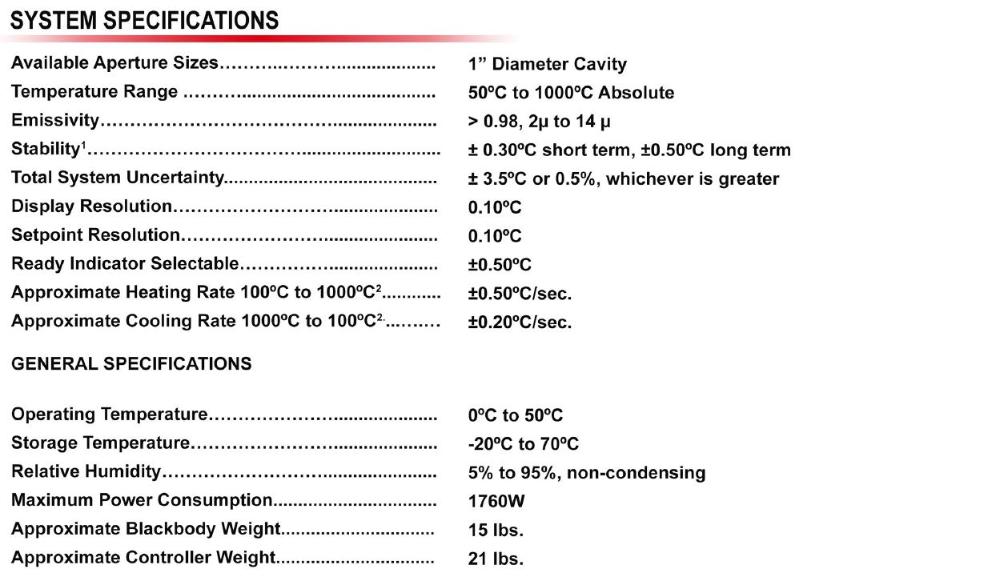

► Available Sizes 1” Diameter Cavity
► Temperature Range 50ºC to 1000ºC Absolute
► Emissivity 0.98, 2µ to 14µ
► Display resolution 0.10ºC
► Setpoint resolution 0.10ºC
► Stability ± 0.30ºC short term, ±0.50ºC long term
► Total System Uncertainty ±3.5ºC or 0.5%, whichever is greater
Superior Uniformity and Speed
The unique cavity construction of the 4100 preserves the high emissivity of traditional cavity blackbody designs, but greatly
improves the uniformity and slew rate of the system. Cooling rates are markedly faster, significantly reducing test times.
High Accuracy and Repeatability

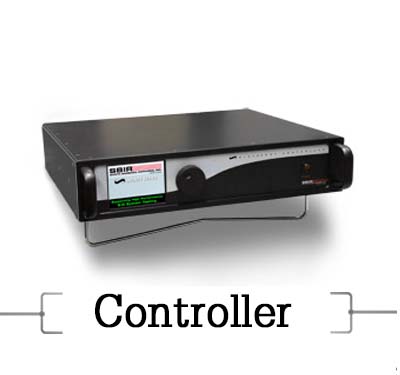

The microprocessor-based temperature controller is designed for optimum accuracy and stability. A high resolution enhanced
PID temperature servo provides zero drift and low jitter control of the emitting surface’s temperature.
Ease of Calibration
Calibration is fast and easy. All adjustments can be made directly from the front panel or through the remote interface.
Calibration points are independent of each other, allowing the user to touch up a single calibration point.
