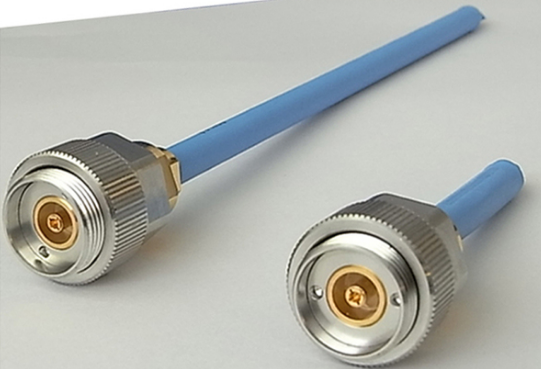

SGL Series Inductance Standard for Sub-Giga Herz Bandwidth 모델명: SGL Series Inductance Standard
▶ APC7 Connector is used.
▶ Precision type consists of inner conductor and outer conductor. The structure makes calculation of inductance per unit length possible.
▶ Simplified type is inexpensive so that it can be used as a daily check in the field.
▶ Any inductance value can be specified when ordering.
제품 카달로그
견적문의
SGL series is for sub-giga herz inductance standard. Operable as an inductance standard for network analyzer.
Frequency Range |
10 MHｚ～1 GHz |
Connector Type |
APC7 (consult with us for other connector types) |
Inductance Range |
5 nH ～ 22 nH @500 MHz |
33 nH ～ 100 nH @300 MHz |
|
Inductance Accuracy
|
±0.55 % @5 nH – 10 nH 500 MHz |
±0.25 % @10 nH – Less Than 15 nH, 500 MHz |
|
±0.15 % other ranges |
|
Inductance Accuracy
|
±0.60 % @5 nH – 10 nH 500 MHz |
±0.30 % @10 nH – Less Than 15 nH, 500 MHz |
|
±0.20 % other ranges |
-
Specifications are subject to change without notice due to improvement
-
SunJEM will design products to meet your individual requirements.
Please feel free to consult with us for products other than ready-made ones.
