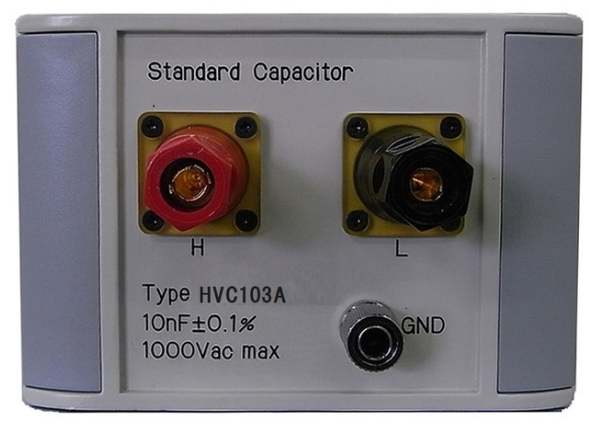

HVC Series High Voltage Standard Capacitance 모델명: HVC Series

▶ Structured 3-Teminal Binding Post, Max. Applicable Voltage is AC 1000V.
▶ Suitable for a Calibration Standard due to excellent Accuracy, Temperature Coefficient and Stability
▶ Arbitrary capacitance value and terminals are available upon request

제품 카달로그

견적문의

제품특징

상세사양

HVC Series High Voltage Standard Capacitance is a capacitor using ceramics as dielectrics.

Item/Model	HVC101A	HVC102A	HVC103A
Nominal Capacitance	100 pF	1 nF	10 nF
Accuracy*¹	±1 ％ *2	±0.5 % *2	±0.1 % *2
Dissipation Factor*¹	Less than5☓10⁻⁴
Temperature Coefficient	±50 ppm/℃
Stability	±100 ppm/year
Max. Applicable Voltage	1000 Vac
Weight	approx. 400ｇ
Size(W×D×H)mm	100×70×81

1 Value at 1 kHz
2 Floating Capacitance approx. 0.5 pF between terminals

Specifications are subject to change without notice due to improvement
SunJEM will design products to meet your individual requirements.
Please feel free to consult with us for products other than ready-made ones.
