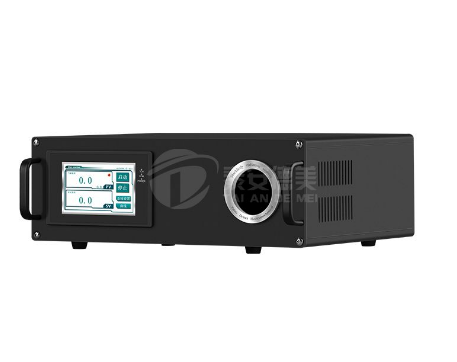

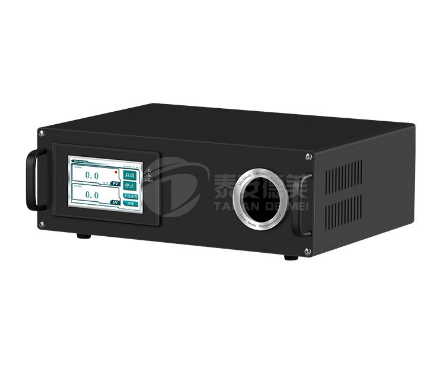

흑체로 Portable Blackbody Furnace for Temperature Gun 모델명: NOVA-HTY
► Chamber style : Deep cavity cone type
► Temperature Range : 30℃~45℃ (Customizable)
► Temperature Resolution : 0.1℃
► Cavity Diameter : φ50mm
► Deep cavity : 180mm
► Emissivity : ≥0.998
제품 카달로그
견적문의
Product Introduction
NOVA-HTY portable blackbody is independently developed and produced by our company, which is mainly used
for calibration of red outer ear temperature gun and infrared forehead temperature gun,
as well as calibration of infrared body surface screening instrument.
The black body furnace of portable infrared temperature gun can be used through the temperature circulating system developed
by our company and the new material developed by our company.
The emissitivity can reach above 0.99. It is an ideal product for calibrating red outer ear temperature gun and forehead temperature gun.
Model |
NOVA-HTY1 |
NOVA-HTY3 |
Chamber style |
Short cavity plane type |
Deep cavity cone type |
Temperature Range |
30℃~45℃ (Customizable) |
30℃~45℃ (Customizable) |
Control Mode |
Touch Screen |
Touch Screen |
Temperature Resolution |
0.1℃ |
0.01℃ |
Cavity Diameter |
φ50mm |
φ50mm |
Deep cavity |
50mm |
180mm |
Emissivity |
≥0.99 |
≥0.998 |
Temperature Stability |
±0.2℃/10min |
±0.15℃/10min |
Temperature Uniformity |
±0.2℃ |
±0.15℃ |
Power Supply |
220V AC 50HZ 100W |
220V AC 50HZ 100W |
Weight |
4.0Kg |
4.0Kg |
Dimension(L×W×H) |
225mm×225mm×115mm |
|
