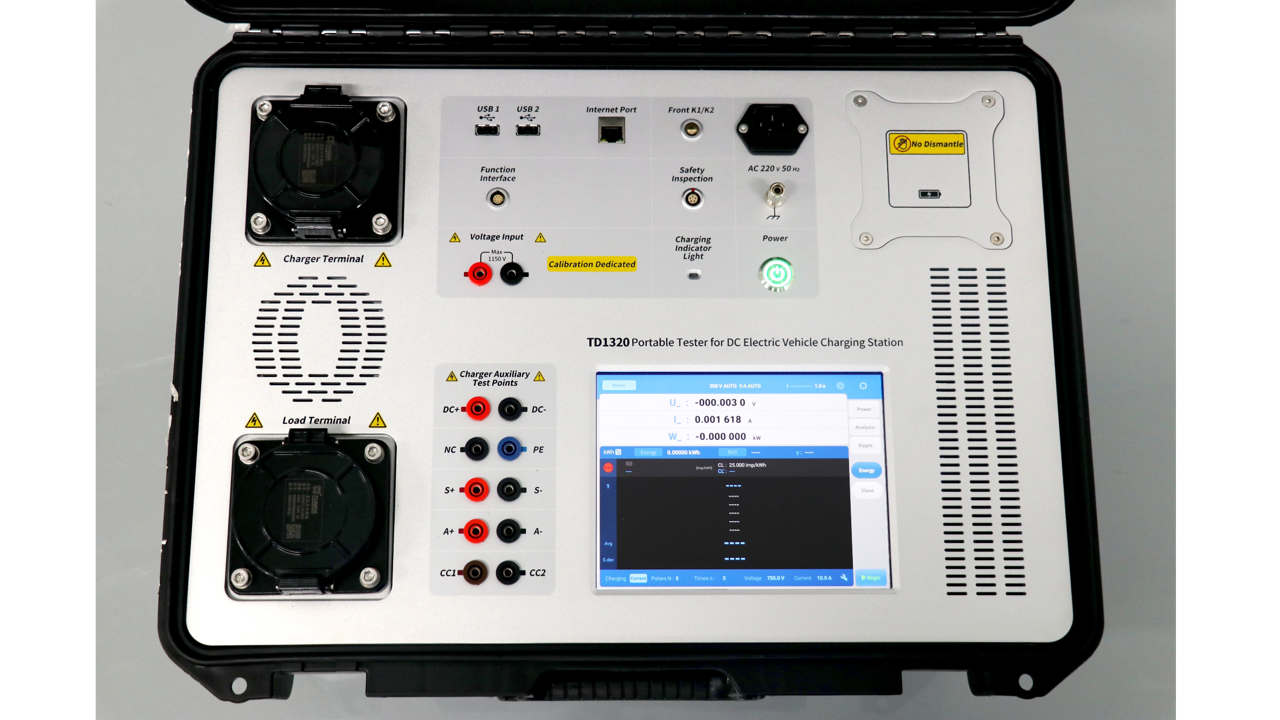

Portable Tester for DC EV Chargers 모델명: TD1320
▶ DCV measurements up to 1150 V
▶ DCI measurements up to 250A(CCS1, 2 or others), 300A(GB/T).
▶ Accuracy : class 0.05 / 0.1
▶ Working Temperature : -25~55℃
▶ Compatible Plug : GB/T, CCS1, CCS2 or others
▶ Load : Adjustable Resistive Load(Max 240kw), EV
※ For industry and laboratory application only
제품 카달로그
견적문의

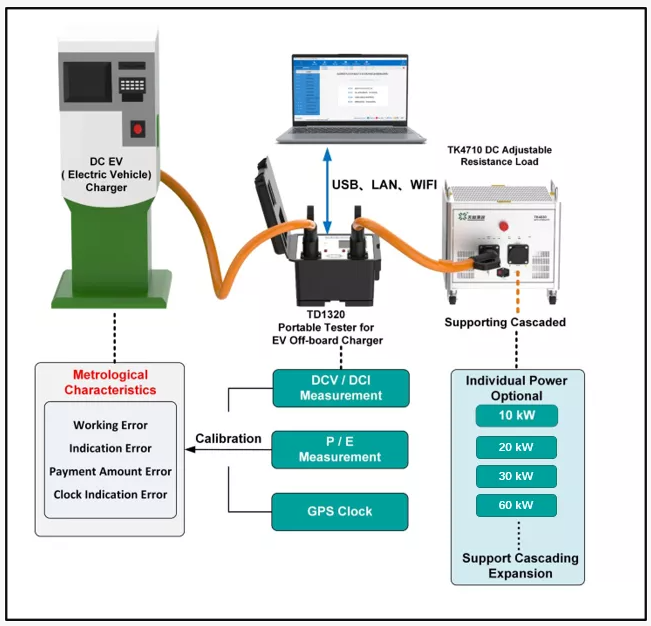

Application of TD1320 Portable Tester for DC EV Chargers

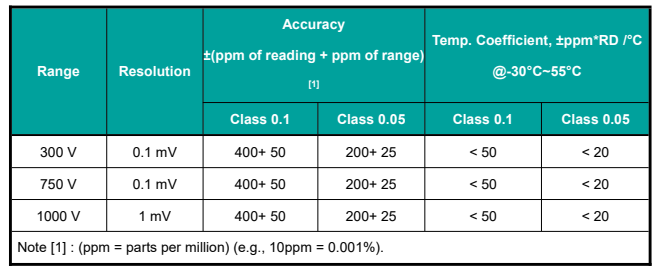

▶ DCV Measurement Range Resolution
- Range: Manual/auto shift
- Measurement range: 30V~1150 V
- Ripple uncertainty (k = 2): 0.05%*RG,RMS；bandwidth: ≤ 1 kHz

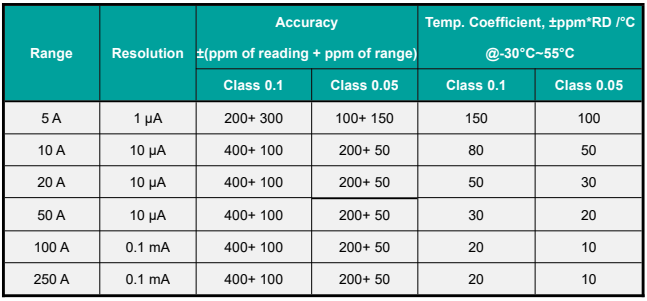

▶ DCI Measurement
- Range: Manual/auto shift
- Measurement range: 0.5 A ~ 250A(CCS1, 2 or others), 300A(GB/T).
