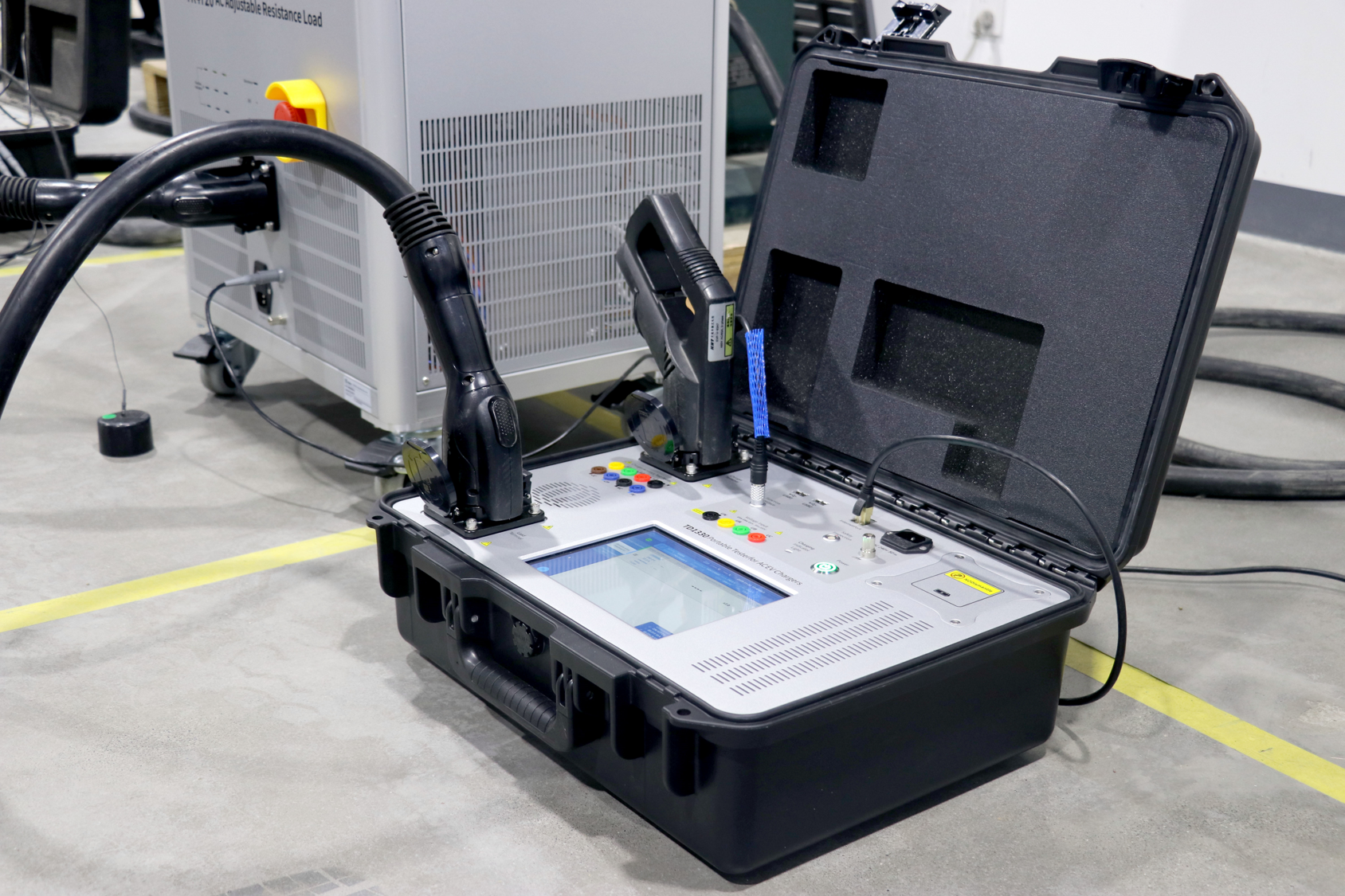

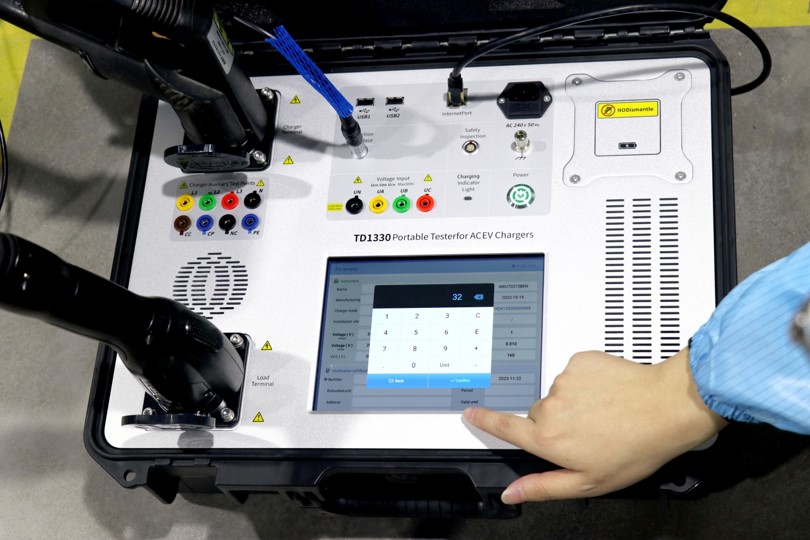

Portable Tester for AC EV Chargers 모델명: TD1330
▶ Three-phase AC voltage measurements up to 300 V
▶ Three-phase AC current measurements up to 78 A
▶ Accuracy : class 0.05 / 0.1
▶ Working Temperature : -25~55℃
▶ Compatible Plug : GB/T, CCS1, CCS2 or others
▶ Load : Adjustable Resistive Load(9kW@1-ph，45kW@3-ph), EV
※ For industry and laboratory application only
제품 카달로그
견적문의

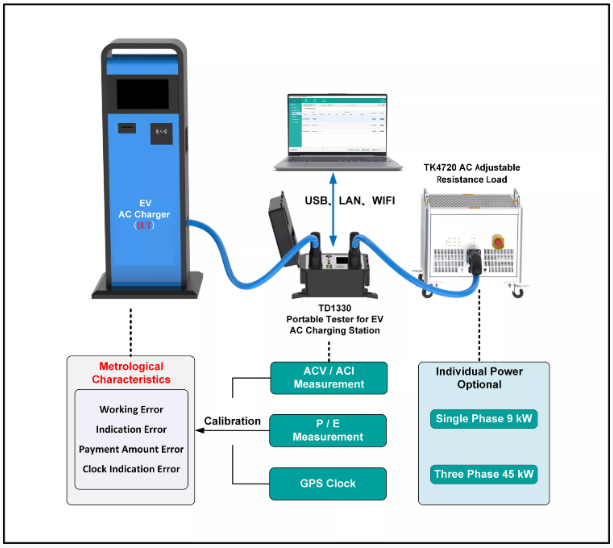

Application of TD1330 Portable Tester for AC EV Chargers

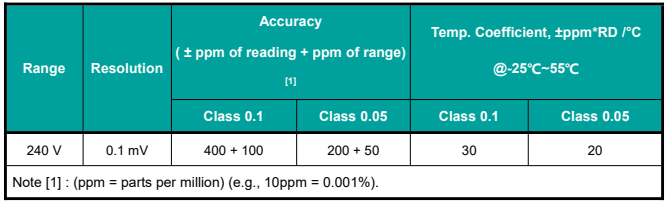

▶ Three-phase ACV Measurement
- Range: Manual/auto shift
- Measurement range: 30 V ~ 300 V
- Harmonic Measurement Uncertainty (k = 2): 0.05% * RG, RMS

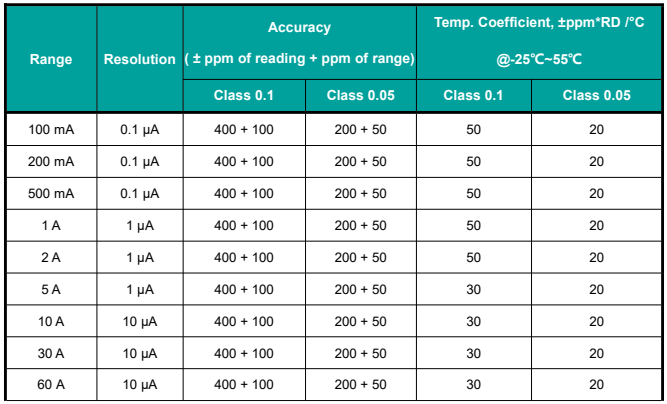

▶ Three-phase ACI measurement
- Range: Manual/auto shift
- Measurement range: 10 mA ~ 78 A
- Harmonic measurement uncertainty (k = 2): 0.05% * RG, RMS
