▶ DC Voltage/Current : up to 1000V / 250 A

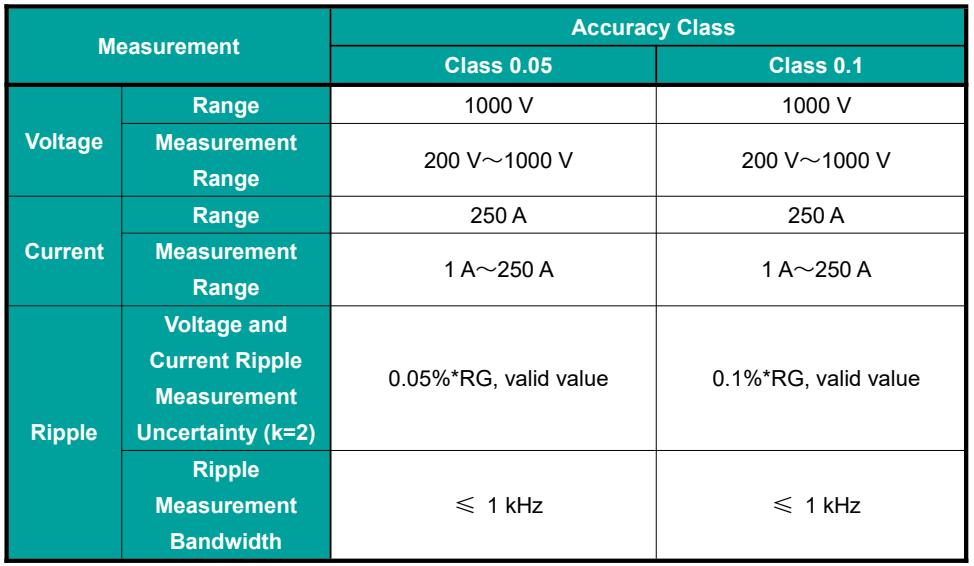

▶ Accuracy : class 0.05 / 0.1
▶ Working Temperature : -30℃～60℃
▶ Compatible Plug : GB/T, CCS1, CCS2 or others
▶ Load Power : built-in 8 kW
※ For industry and laboratory application only
TK4850E is one of the all-in-one portable instruments specially designed for on-site testing of off-board chargers of electric vehicles.

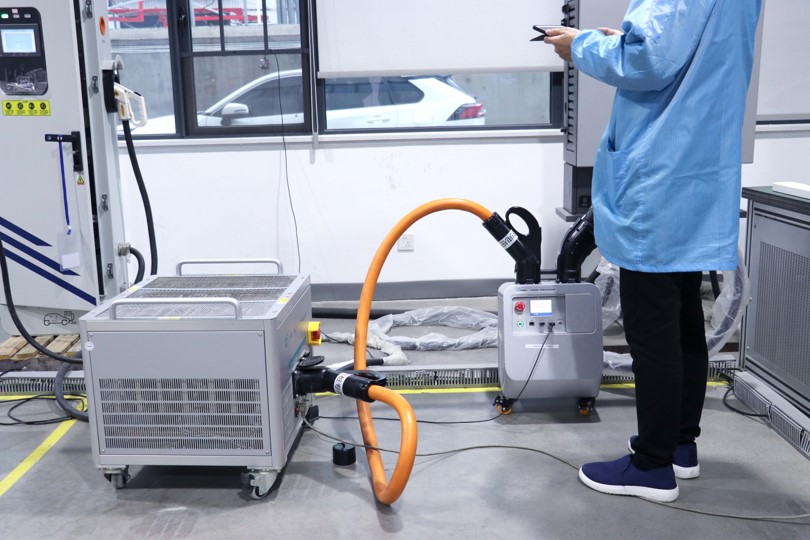

The instrument integrates a small DC load, supports load expansion, and supports using new energy vehicles as loads.

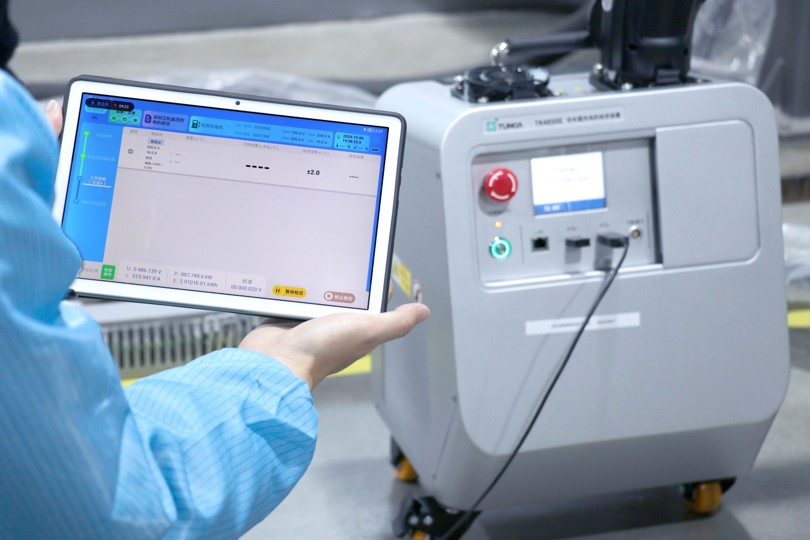

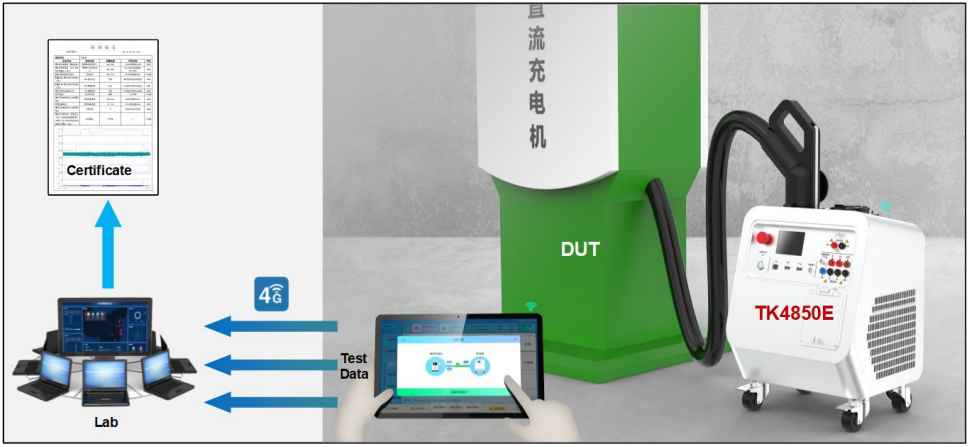

The instrument is operated through a wireless tablet. A single device can complete the working error and clock time error test of the off-board chargers.
It is easy to carry and a single person can easily complete the on-site verification of the off-board chargers.
Application
