DC Adjustable Resistance Load TK4710
DC Adjustable Resistance Load TK4710
DC Adjustable Resistance Load TK4710
DC Adjustable Resistance Load TK4710
DC Adjustable Resistance Load TK4710 모델명: TK4710

▶ Rated Power : 20 kW~60 kW @1000V/750V/500V

▶ Operation Ranges : Voltage 0 ~ 1000 V, Current 0 ~ 120 A

▶ Minimum Current Step : Current is continuously adjustable

▶ Temperature Performance : Working temperature: -25°C~55°C

▶ Communication Interface : RS232, CAN-BUS

제품 카달로그
견적문의
제품특징
상세사양

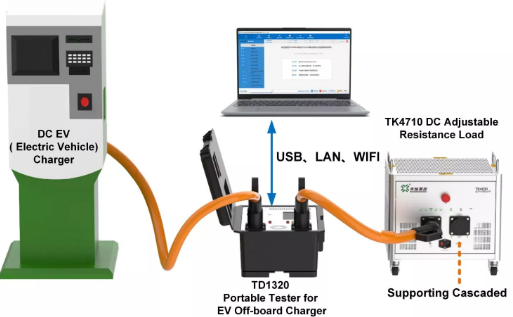

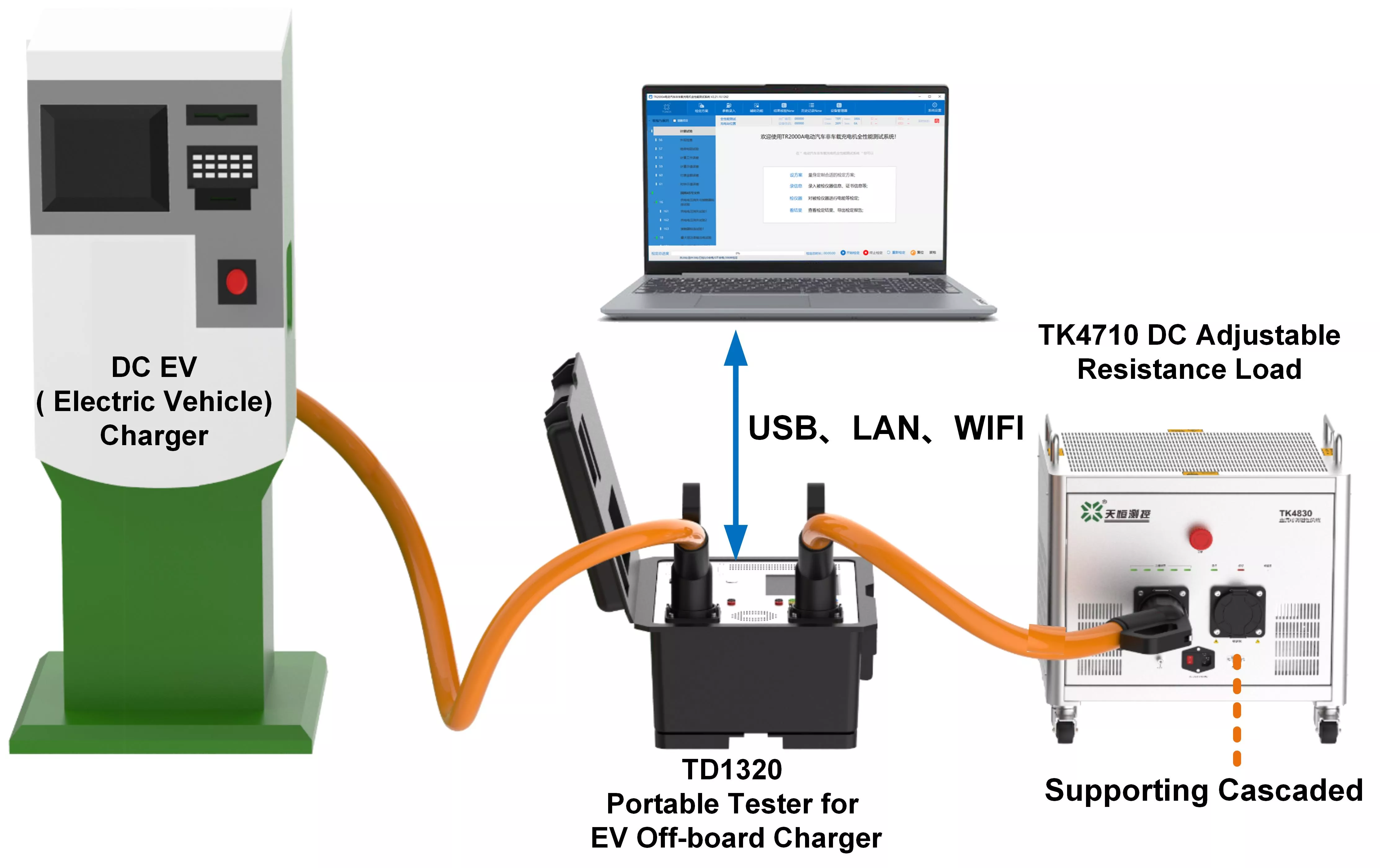

TK4710 is a DC adjustable resistive load box with optional rated power of 20kW, 30kW and 60kW. The panel is equipped with a standard DC charging socket and can be used with DC charger field testers to achieve on-site calibration of DC chargers for electric vehicles.

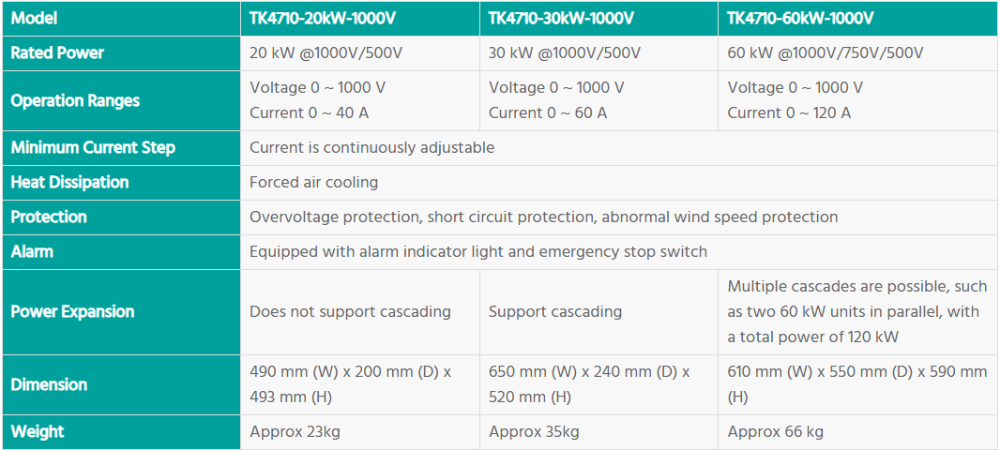

▶ Specification of TK4710 DC Adjustable Resistance Load

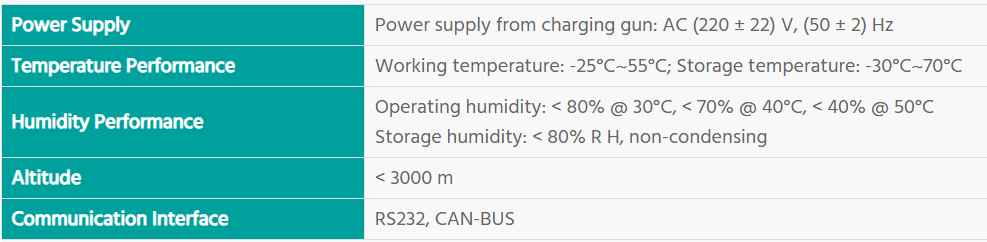

▶ General Specification of TK4710 DC Adjustable Resistance Load
