TK4860E-S (Single-Phase)
▶ DC Voltage/Current : up to 220V / 36 A
▶ Accuracy : class 0.05 / 0.1
▶ The single-phase TK4860E-S has a built-in 8 kW single-phase AC load
▶ Load Power : Single phase 8kW, does not support load expansion
TK4860E-T (Three-Phase)
▶ DC Voltage/Current : up to 220V / 72 A
▶ Accuracy : class 0.05 / 0.1
▶ Load Power : Supports cascaded three-phase 45kW resistive loads or electric vehicles

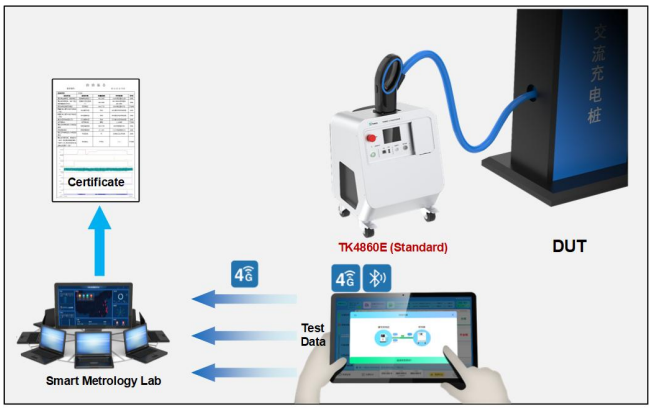

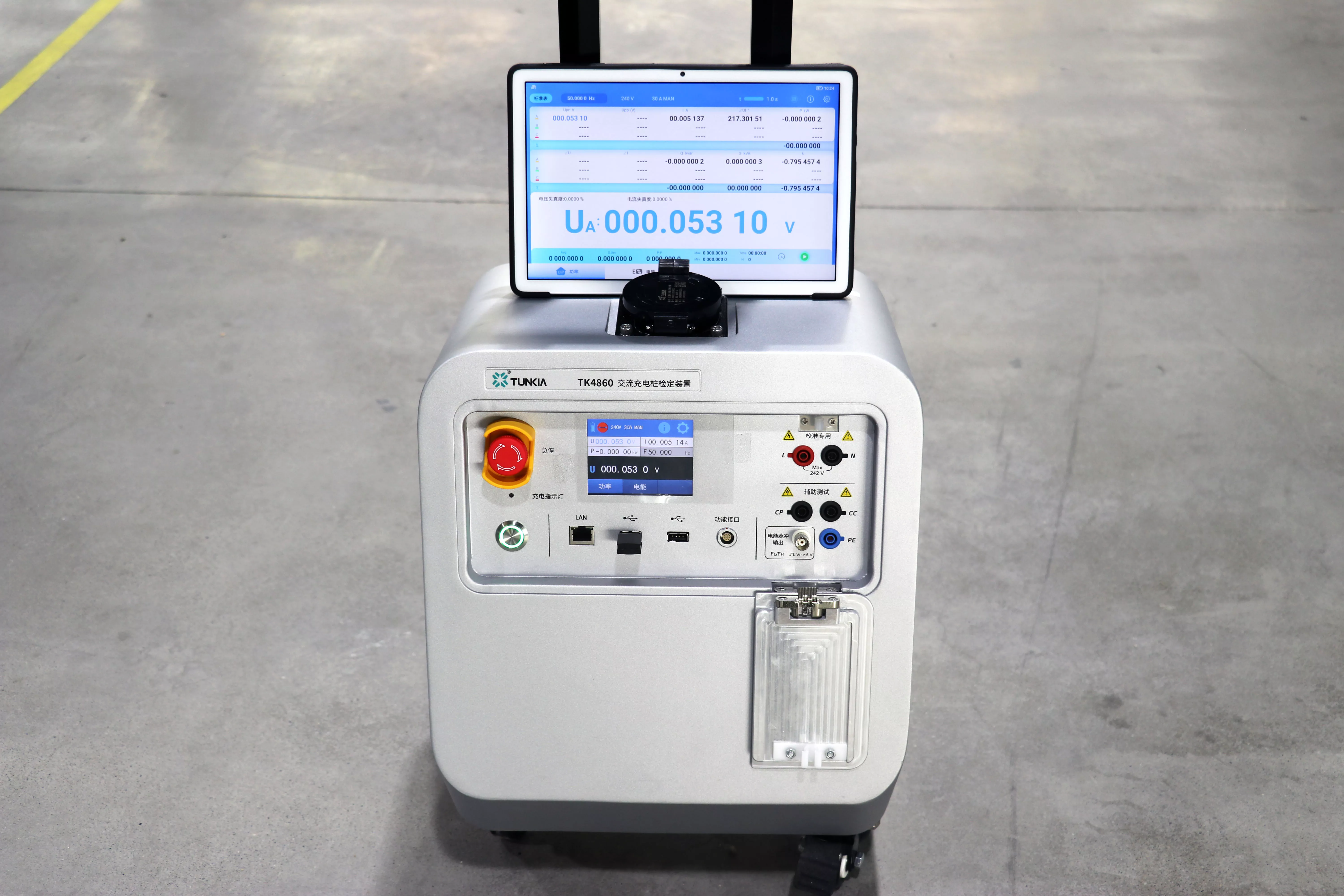

TK4860E is one of the all-in-one portable instruments specially designed for on-site metrological testing of AC charging stations for electric vehicles.
It is available in single-phase and three-phase options. Among them, the single-phase TK4860E-S instrument integrates a single-phase 8kW load internally.
In addition to the single-phase 8kW load integrated inside the single-phase TK4860E-T instrument, it can also be connected to an external high-power AC resistive load or electric vehicle.

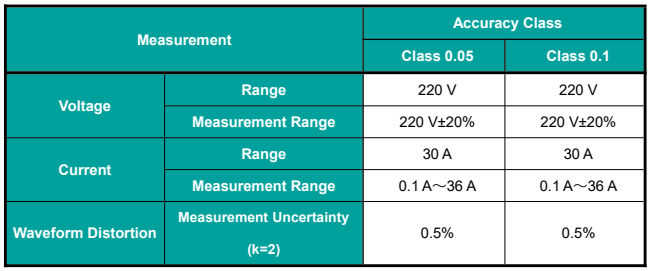

TK4860E-S (Single-Phase)

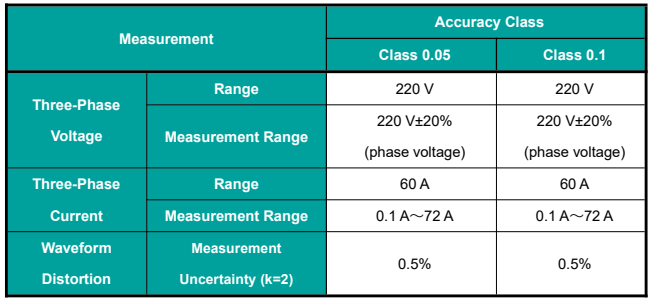

TK4860E-T (Three-phase)
