제품소개 Products
AC Adjustable Resistance Load 모델명: TK4720

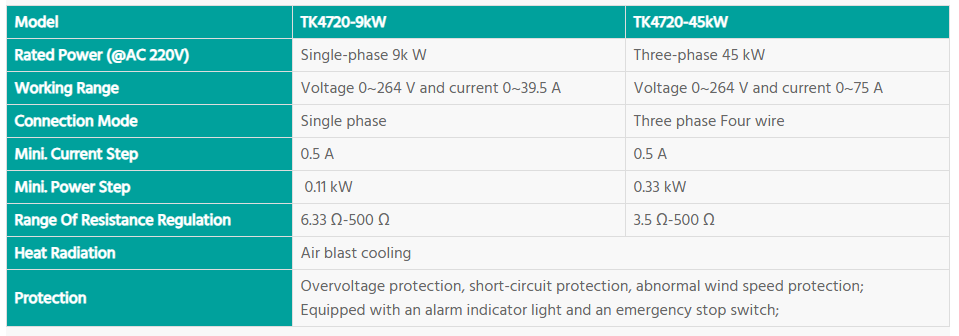

TK4720-9kW
▶ Rated Power : Single-phase 9kW
▶ Operation Ranges : Voltage 0~264 V and current 0~39.5A
▶ Connection Mode : Single phase
TK4720-45kW
▶ Rated Power : Three-phase 45 kW
▶ Operation Ranges : Voltage 0~264 V and current 0~75 A
▶ Connection Mode : Three phase Four lines
제품 카달로그
견적문의

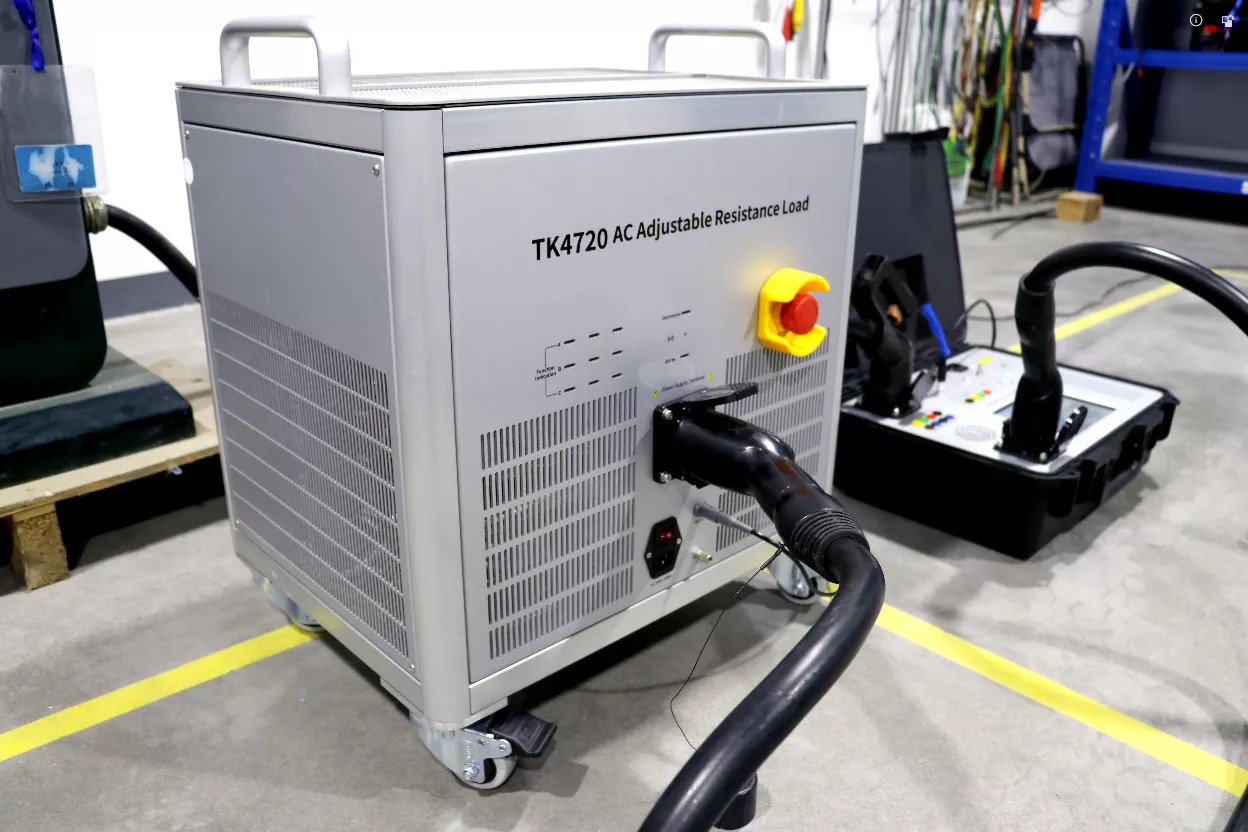

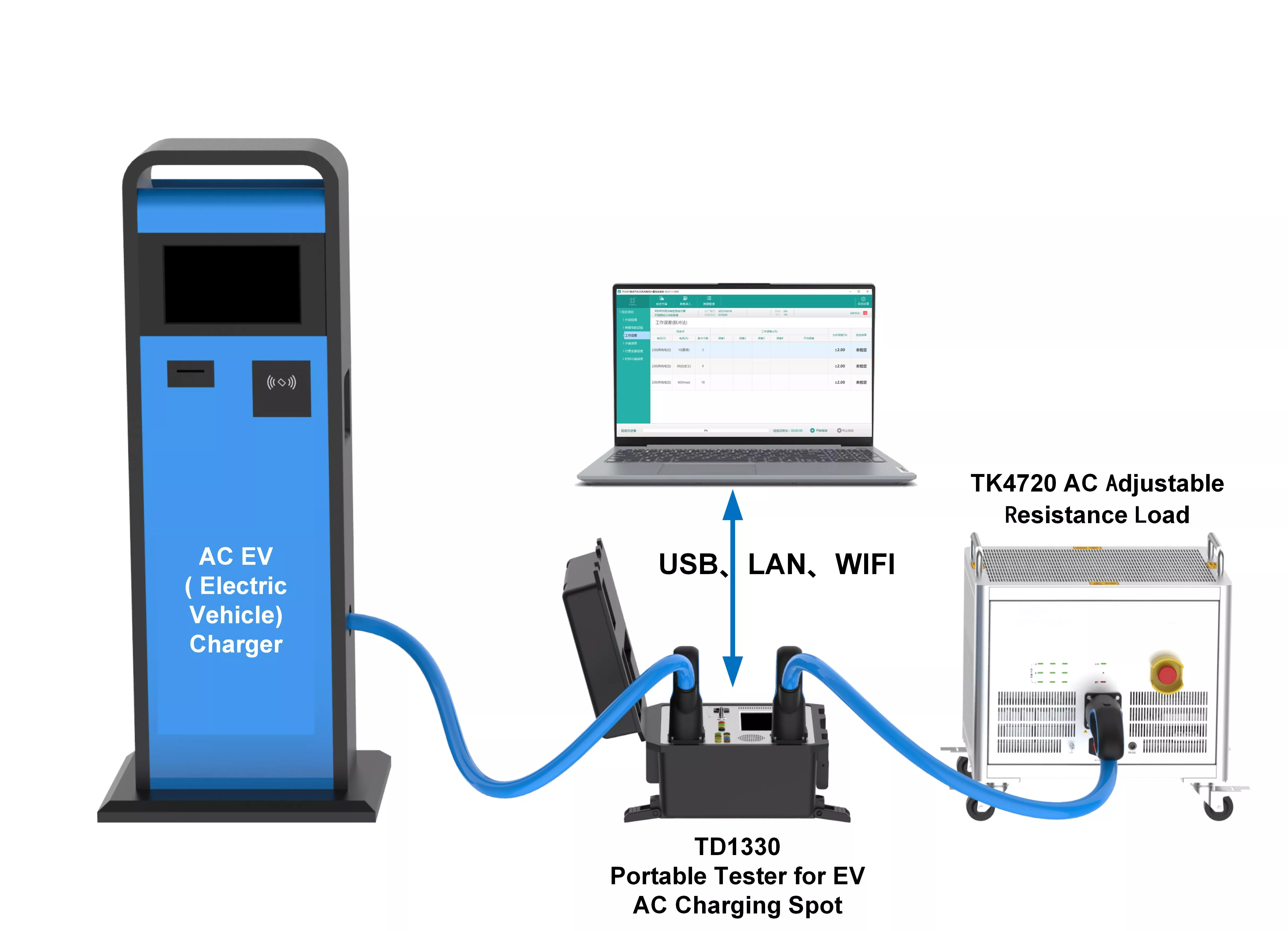

TK4720 is an AC adjustable resistance load box with rated power single-phase 9kW or three-phase 45kW. The panel is equipped with standard AC charging socket, which can be used with AC charging pile field tester, to realize the on-site verification of AC charging pile for electric vehicles.
