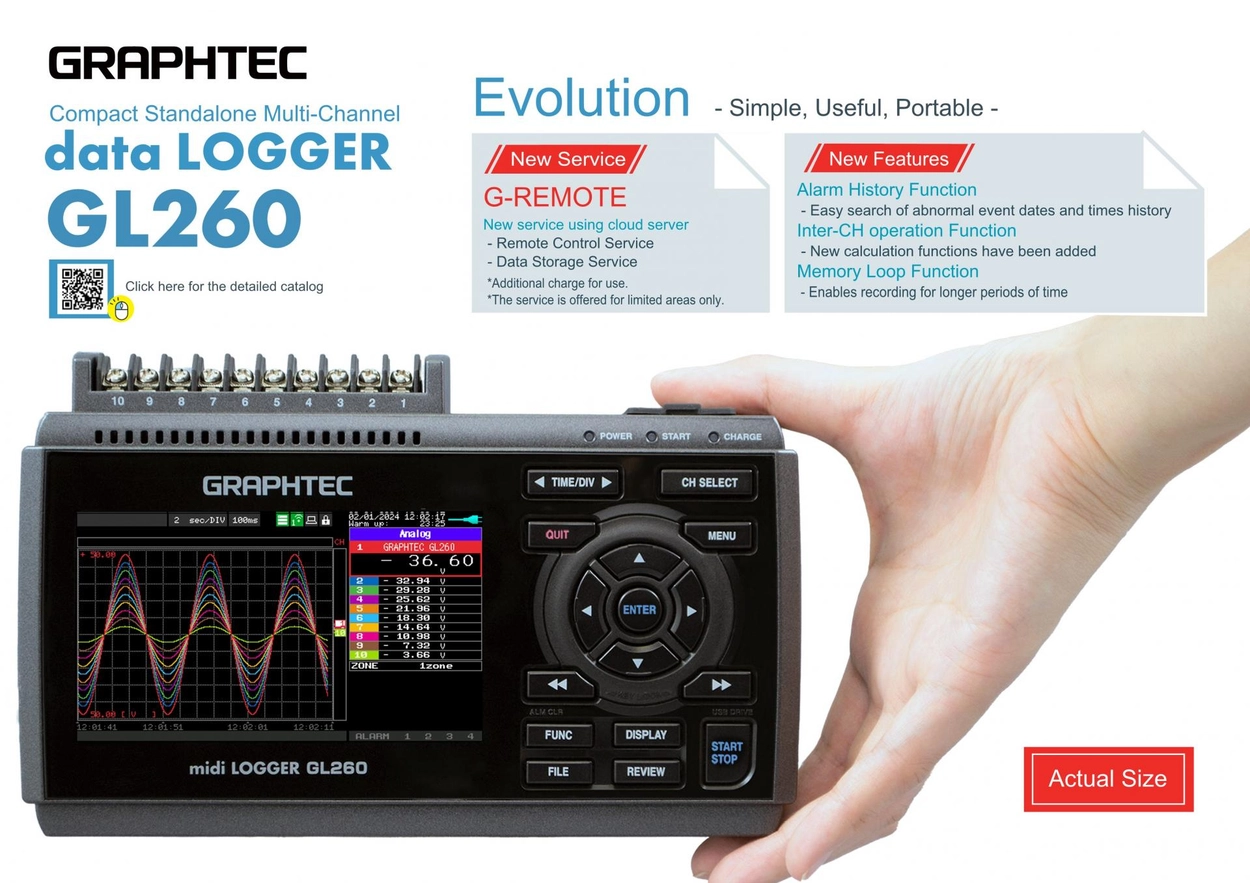

10채널 데이터로거 GL260 모델명: GL260

▶ New service G-REMOTE

▶ 3 new functions (Alarm history, Improved Inter-CH calculation, Memory loop function)

▶ The usability has been greatly improved.

▶ Supports all channel isolated and multi-function input.

▶ By narrowing down the number of channels, data are captured at sampling interval of up to 10ms is possible.

▶ WLAN unit (optional) enables wireless measurement with a PC and remote monitoring.

제품 카달로그

제품 매뉴얼

견적문의

제품특징

상세사양

GL260 is a 10-channel type data logger that supports all channel isolated and multi-function input. It can measure various phenomena such as voltage and temperature. It operates recording at intervals of 10ms to 1 hour. Also an optional Wireless LAN unit enables wireless measurement and remote monitoring. GL260 supports the new Remote control service "G-REMOTE", which makes your measuring more efficient. *G-REMOTE is offered for limited areas only

GL260		Description
Number of analog input channels		10 channels
External input/ output (*1)	Input	Trigger or Sampling (1 channel), Logic/Pulse (4 channels) Voltage range: Up to 24V (common ground) Signal type: Voltage, Open collector, Contact (relay) Threshold: Approx. + 2.5 V (Hysteresis: Approx. 0.5V (2.5V to 3V))
External input/ output (*1)	Output	Alarm (4 channels) Output signal: Open collector (pull-up to 5V by 10kΩ resistor) Voltage: Max. 30V Current: Max. 0.5A Collector dissipation: Max. 0.2W
Sampling interval		10 ms to 1 hour (10ms to 50ms: voltage only, Minimum interval varies by number of channels used.), External signal (*1)
Time scale of waveform display		1sec. to 24 hour /division
Trigger, Alarm function	Trigger action	Start or stop capturing data by the trigger
	Repeat action	Off, On (auto rearmed)
	Trigger source	Start: Off, Measured signal, Alarm, External, Clock, Week or Time Stop: Off, Measured signal, Alarm, External, Clock, Week or Time
	Condition Setting	Combination: OR or AND Analog signal: Rising (High), Falling (Low), Window-in, Window-out Logic signal: Pattern (combination of each input signal in high or low) Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out
Pulse input function	Measurement mode	Rotation count (RPM) mode Accumulating count mode Instant count mode
Pulse input function	Maximum number of pulse inputs	Maximum input frequency : 50kHz Maximum number of count : 50kC/sampling (16-bit counter)
Interface to PC		USB (Hi-speed), WLAN (using B-568 option) * B-568 is available in limited region.
Storage device	Internal	Built-in 8GB Flash Memory (*2)
	External	One SD card slot (Support SDHC memory card, up to 32GB) (2)(3)
	Saved contents	Captured data, Setting conditions, Screen copy
Display		4.3-inch TFT color LCD (WQVGA: 480 × 272 dots)
Operating environment		0 to 45 ºC, 5 to 85 % RH (non condensed) (When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)
Power source	AC adapter	100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory)
	DC power	8.5 to 24 V DC (DC drive cable (option B-514) is required)
	Battery pack	Mountable battery pack (battery pack (option B-573): 7.2V DC, 2875mAh)
Power consumption		Max. 36 VA (Rating under maximum power consumption using the AC adapter, with LCD display on, and battery pack being charged.)
External dimensions (W x D x H)		Approx.188 x 117 x 42 mm (excluding projections)
Weight		Approx. 500 g (excludes AC adapter and battery pack)

1 Input/Output cable for GL (option B-513) is required to connect the signal.
2 Figures are approximate. File size of captured data is 2GB in GBD or CSV file format on this chart.
*3 SD memory card cannot be used on SD card slot while the wireless LAN unit (optional item B-568) is used.

Item		Description
Type of input terminal		M3 screw type terminals (Rectangular flat washer)
Input method		Photo MOS relay scanning system All channels isolated, balanced input
Measurement range	Voltage	20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, 1-5 V F.S.
	Thermocouple	K, J, E, T, R, S, B, N, C (W: WRe5-26)
	Humidity	0 to 100% (voltage 0 to 1 V scaling conversion) – using the humidity sensor (option B-530)
Filter		Off, 2, 5, 10, 20, 40 (moving average in selected number)
A/D converter		Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range)
Maximum input voltage	Between +/– terminals	20 mV to 1 V range: 60 Vp-p, 2 V to 100 V range: 110 Vp-p
	Between +/– terminals	20 mV to 1 V range: 60 Vp-p, 2 V to 100 V range: 110 Vp-p	Between input terminal / input terminal	60 Vp-p
	Between input terminal / GND	60 Vp-p

목록으로

▶ New service G-REMOTE

▶ 3 new functions (Alarm history, Improved Inter-CH calculation, Memory loop function)

▶ The usability has been greatly improved.

▶ Supports all channel isolated and multi-function input.

▶ By narrowing down the number of channels, data are captured at sampling interval of up to 10ms is possible.

▶ WLAN unit (optional) enables wireless measurement with a PC and remote monitoring.

GL260

Description

Number of analog input channels

10 channels

External input/ output (*1)

Input

Trigger or Sampling (1 channel), Logic/Pulse (4 channels) Voltage range: Up to 24V (common ground) Signal type: Voltage, Open collector, Contact (relay) Threshold: Approx. + 2.5 V (Hysteresis: Approx. 0.5V (2.5V to 3V))

Output

Alarm (4 channels) Output signal: Open collector (pull-up to 5V by 10kΩ resistor) Voltage: Max. 30V Current: Max. 0.5A Collector dissipation: Max. 0.2W

Sampling interval

10 ms to 1 hour (10ms to 50ms: voltage only, Minimum interval varies by number of channels used.), External signal (*1)

Time scale of waveform display

1sec. to 24 hour /division

Trigger, Alarm function

Trigger action

Start or stop capturing data by the trigger

Repeat action

Off, On (auto rearmed)

Trigger source

Start: Off, Measured signal, Alarm, External, Clock, Week or Time Stop: Off, Measured signal, Alarm, External, Clock, Week or Time

Condition Setting

Combination: OR or AND Analog signal: Rising (High), Falling (Low), Window-in, Window-out Logic signal: Pattern (combination of each input signal in high or low) Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out

Pulse input function

Measurement mode

Rotation count (RPM) mode Accumulating count mode Instant count mode

Maximum number of pulse inputs

Maximum input frequency : 50kHz Maximum number of count : 50kC/sampling (16-bit counter)

Interface to PC

USB (Hi-speed), WLAN (using B-568 option) * B-568 is available in limited region.

Storage device

Internal

Built-in 8GB Flash Memory (*2)

External

One SD card slot (Support SDHC memory card, up to 32GB) (*2)(*3)

Saved contents

Captured data, Setting conditions, Screen copy

Display

4.3-inch TFT color LCD (WQVGA: 480 × 272 dots)

Operating environment

0 to 45 ºC, 5 to 85 % RH (non condensed) (When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)

Power source

AC adapter

100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory)

DC power

8.5 to 24 V DC (DC drive cable (option B-514) is required)

Battery pack

Mountable battery pack (battery pack (option B-573): 7.2V DC, 2875mAh)

Power consumption

Max. 36 VA (Rating under maximum power consumption using the AC adapter, with LCD display on, and battery pack being charged.)

External dimensions (W x D x H)

Approx.188 x 117 x 42 mm (excluding projections)

Weight

Approx. 500 g (excludes AC adapter and battery pack)

*1 Input/Output cable for GL (option B-513) is required to connect the signal. *2 Figures are approximate. File size of captured data is 2GB in GBD or CSV file format on this chart. *3 SD memory card cannot be used on SD card slot while the wireless LAN unit (optional item B-568) is used.

Item

Description

Type of input terminal

M3 screw type terminals (Rectangular flat washer)

Input method

Photo MOS relay scanning system All channels isolated, balanced input

Measurement range

Voltage

20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, 1-5 V F.S.

Thermocouple

K, J, E, T, R, S, B, N, C (W: WRe5-26)

Humidity

0 to 100% (voltage 0 to 1 V scaling conversion) – using the humidity sensor (option B-530)

Filter

Off, 2, 5, 10, 20, 40 (moving average in selected number)

A/D converter

Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range)

Maximum input voltage

Between +/– terminals

20 mV to 1 V range: 60 Vp-p, 2 V to 100 V range: 110 Vp-p
