기계식 토크 교정기 to 400 N·m 모델명: 7791
▶ Mechanical calibration system up to 400 N·m for torque wrenches and torque screwdrivers.
▶ MANUTORK® 7791 significantly reduces the effort and time required for calibration and adjustment of torque wrenches.
▶ A special force transmission system prevents the force application point from shifting during the calibration process.
▶ A handwheel drives a lever that is moved linearly by a spindle and thus transmits a rotational movement to the transducer.
▶ Reduced transverse forces on the pick-up and friction-free torque wrench support largely prevent accuracys.
제품 카달로그
견적문의

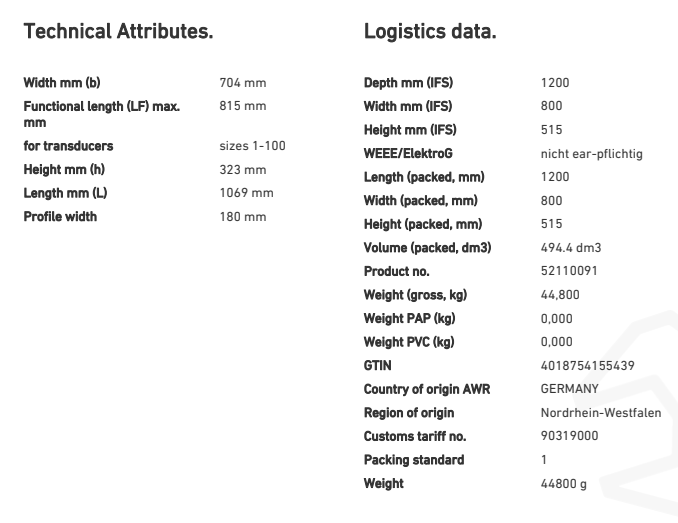

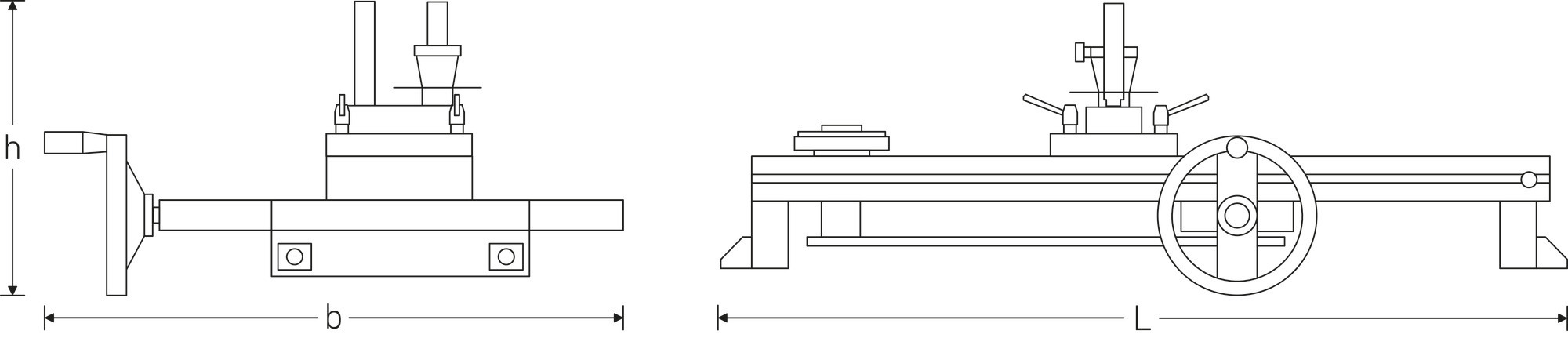

| Product no. | Model | Length mm (L) | Width mm (b) | Height mm (h) | Range N·m | Functional length (LF) max. mm | for transducers | Weight (g) | Profile width |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 52110091 | 7791 | 1069 mm | 704 mm | 323 mm | up to 400 N·m | 815 mm | sizes 1-100 | 44800 g | 180 mm |
