기계식 토크 교정기 to 1000 N·m 모델명: 7792
▶ the special power transmission system prevents the force application point from shifting
▶ the handwheel drives a lever linearly via a spindle, whereby this movement is converted into a rotary movement for the transducer
▶ 2 ball-bearing bushings ensure a friction-free contact surface and enable the horizontal alignment of the wrench
▶ the torque wrench remains in a fixed position during the calibration process
▶ minimal transverse forces and reduced friction minimise measurement errors
▶ protected by national and international patents
제품 카달로그
견적문의

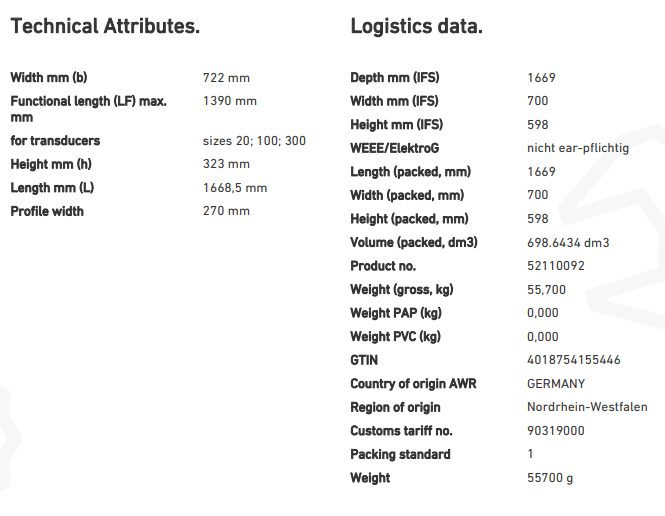

| Product no. | Model | Length mm (L) | Width mm (b) | Height mm (h) | Range N·m | Functional length (LF) max. mm | for transducers | Weight (g) | Profile width | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52110092 | MANUTORK® 7792 | 1668,5 mm | 722 mm | 323 mm | 1390 mm | sizes 20; 100; 300 | 55700 g | 270 mm |
