▶ Temperature Range: 160℃～550℃
▶ Temperature Fluctuation: ±0.015℃（Above 600℃,±0.02）/10min
▶ Temperature Uniformity: Horizontal temperature field 0.03℃
▶ Tank Volume: 15L
▶ Size of workspace φ（mm）: φ130（mm）Diameter
▶Effective Depth（mm): 400mm
▶ External DimensionL×W×H（mm）: 900*800*1135（mm)
▶ Worktable Height(mm) Overall Height 850（mm）
▶ Working Medium: Formula Salt

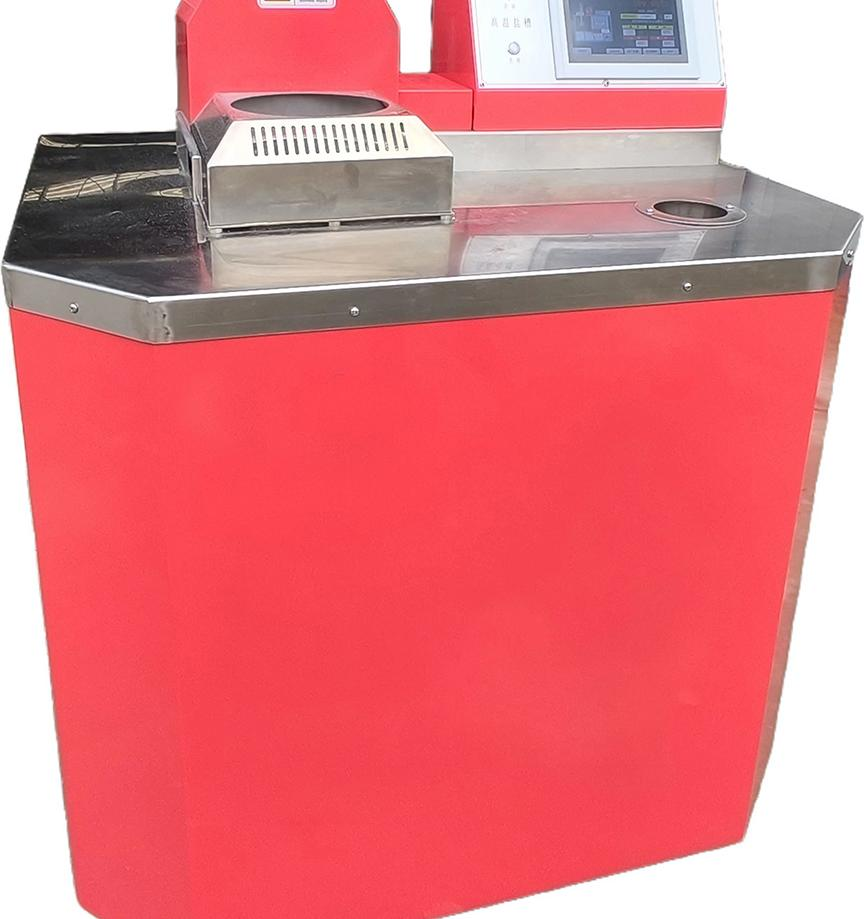

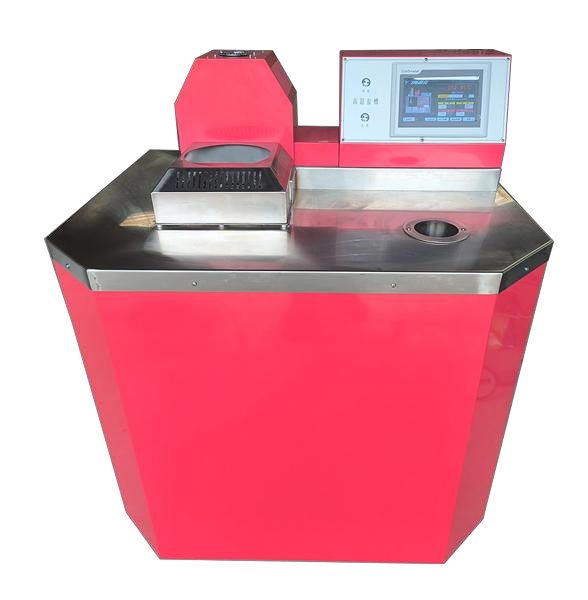

High-precision constant temperature salt bath is a high-precision temperature calibration device, which has the characteristics of good temperature stability, uniform temperature field, high temperature control accuracy, etc. The digital temperature controller realizes automatic temperature control according to the PID regulation law, with compact structure, convenient operation and intuitive bath temperature reading. It is suitable for various measurement, biochemistry, petroleum, meteorology, energy, environmental protection, medicine and other departments and manufacturers of thermometers and temperature controllers to detect physical parameters, and can provide a constant temperature source for other experimental research work.
Technical Indicators
| Product Name | High precision constant temperature salt bath |
| Model | DY-YC-550 |
| Range of Working Temperature(℃) | 160℃～550（600℃） |
| Temperature Fluctuations(℃/10min) | ±0.015℃ (Above 600℃,±0.02 )/10min |
| Temperature Uniformity(℃) | Horizontal temperature field 0.03℃ |
| Heating rate | Room temperature rises to 550℃＜2 hours |
| Working medium | Formula Salt |
| Volume(L) | 15L |
| Communication interface | R485 communication interface (Need to be customized) |
| Environmental requirements |
Ambient temperature: 15℃～30℃, relative humidity: no more than 80%RH;
No strong vibration, electromagnetic radiation, electromagnetic shielding, no dust and corrosive substances around |
| Installed Power(kw) | 360kW |
| Power Supply(v/50hz) |
220±10% VAC, 50±1Hz
Independent power supply, a separate air switch should be installed, good grounding |
| Effective depth (mm) | 400mm |
| Overall dimensions L×W×H (mm) | 900mm×800mm×1135mm |
| Working area size | φ130（mm）Diameter |
| Outer shell material of the inner bladder | Stainless steel hairline plate |
