► Output Current Range: 3.16 μ A ~ 10 A
► Resistance Measurement Range: 1 m Ω ~ 11 M Ω
► Measurement Cycle: 8 seconds (adjustable)
► High reliability with excellent protection mechanisms
※ For industry and laboratory application only

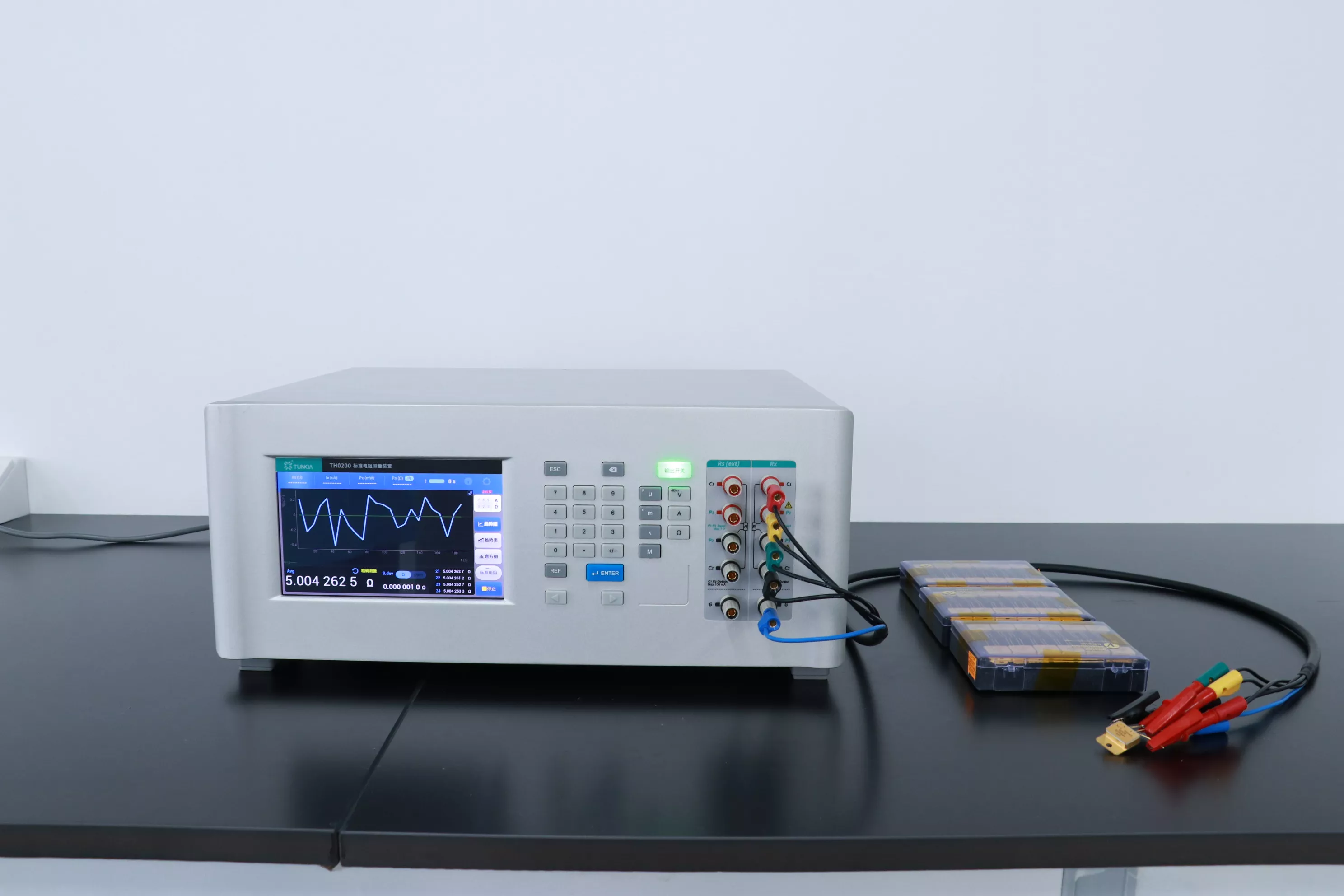

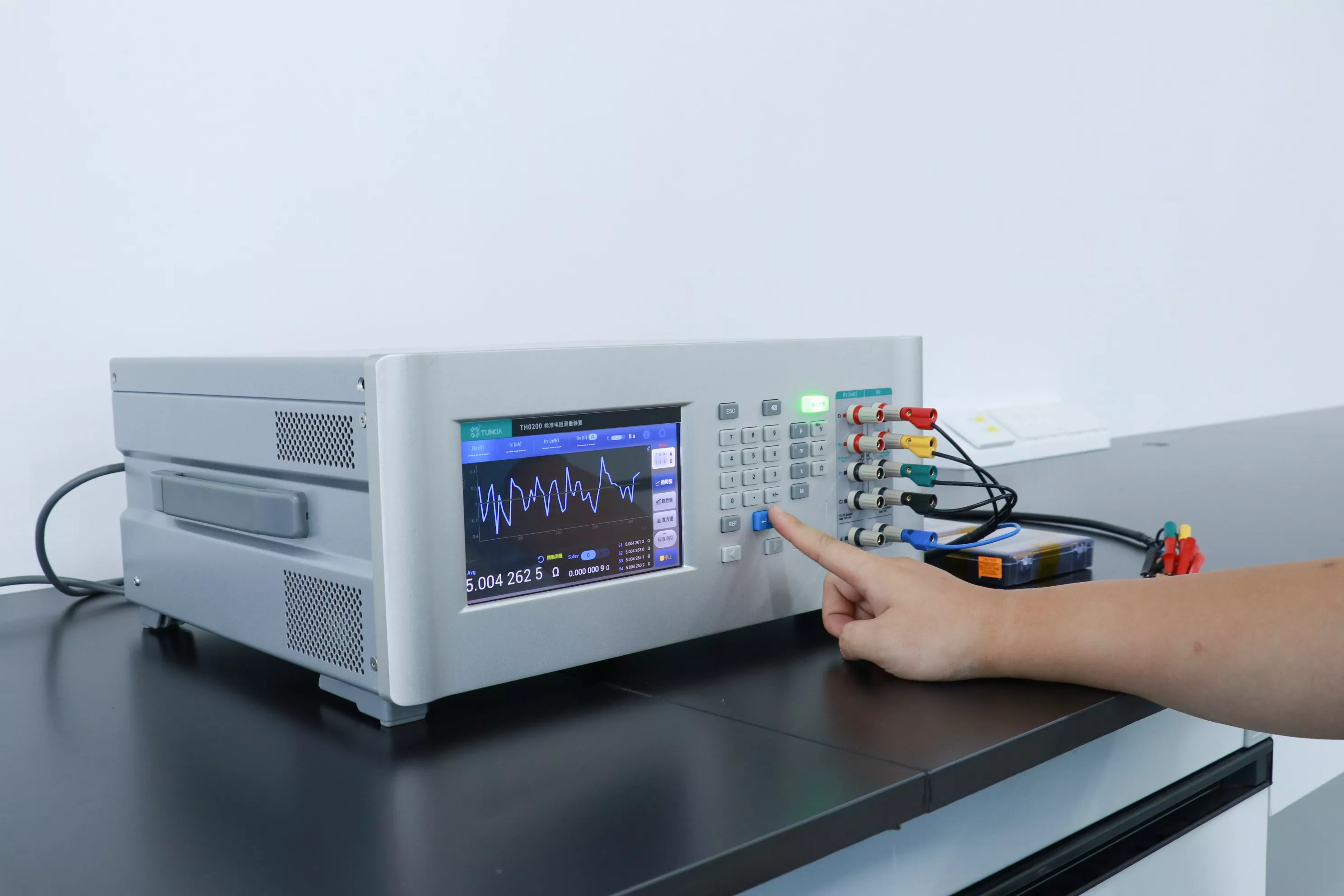

The TH0200 is a high-precision, wide-range resistance measurement standard. It comes with a built-in reference resistor, enabling fast and accurate measurement of Class 0.01 or lower standard resistors/resistance boxes. It also supports external connection of a standard reference resistor for achieving even higher measurement precision.
This device utilizes a comparator bridge principle, making it ideal for metrology laboratories to perform measurement, comparison, transfer, and calibration of standard resistors or resistance boxes.
References:
JJG 166-2022 Verification Regulation of DC Standard Resistors.
JJG 982-2022 Verification Regulation of DC Resistance Boxes.
