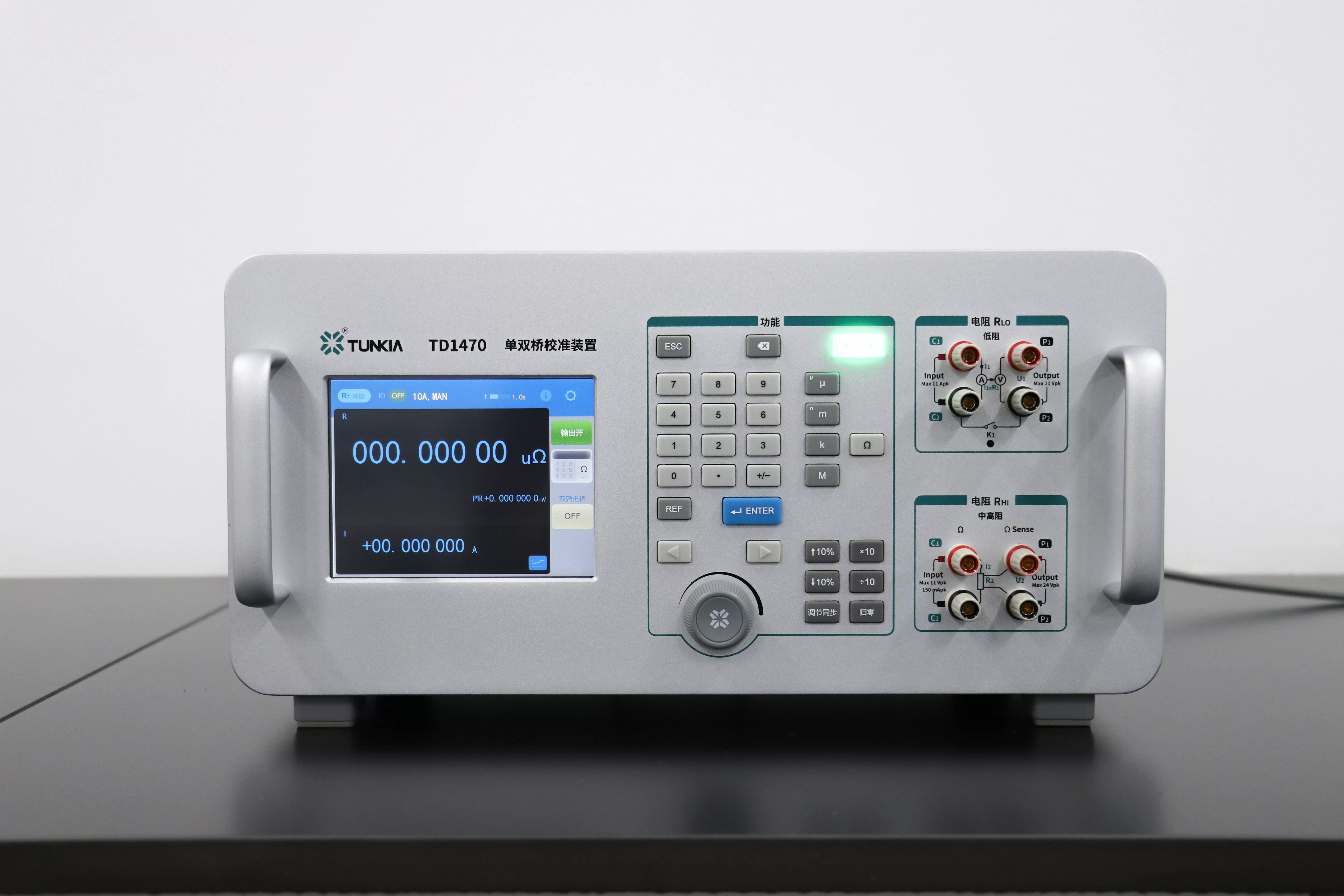

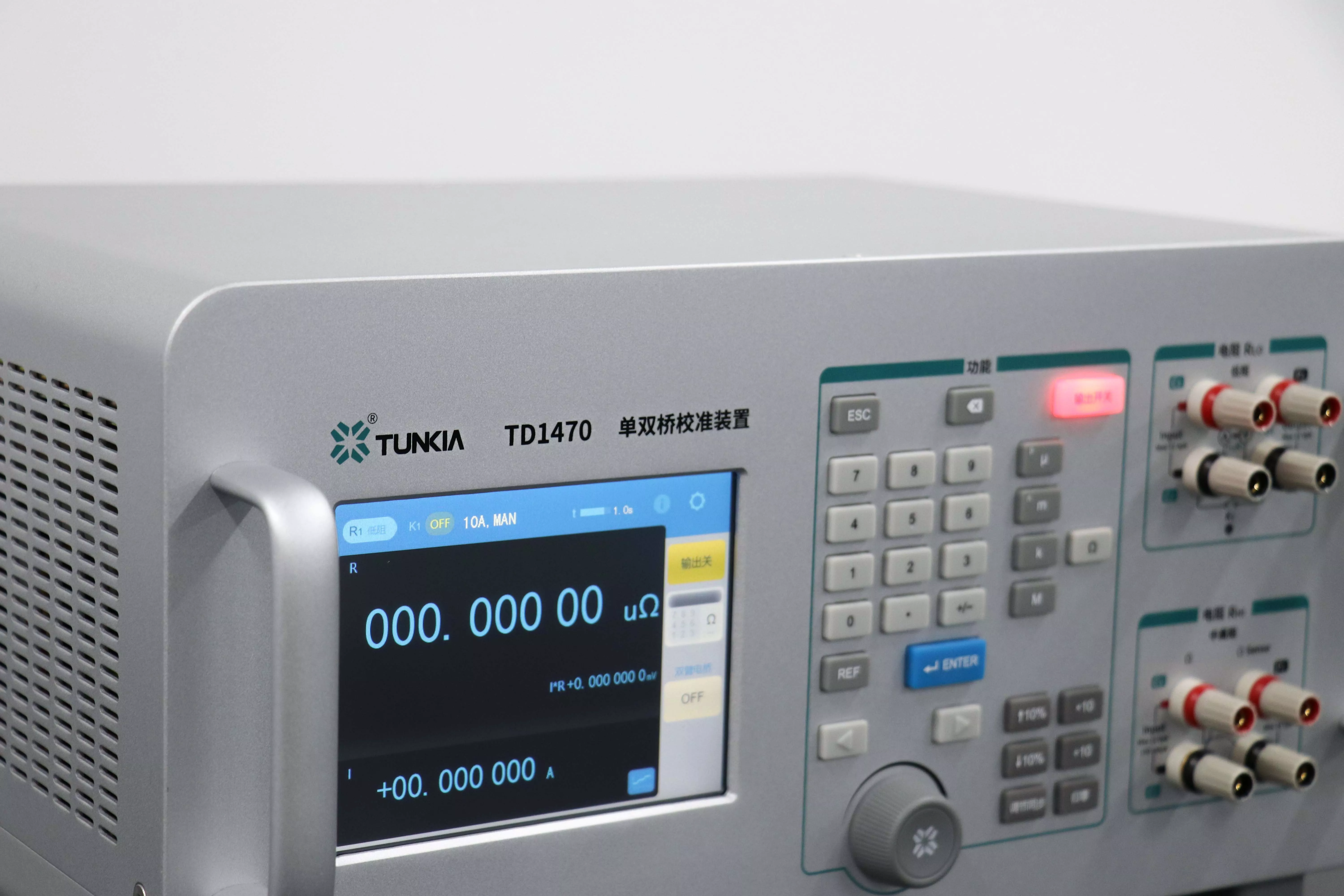

표준저항 Single and Double Arm Bridge Calibration Device 모델명: TD1470
► DC current measurement range: 1 mA ~ 11 A
► Resistance simulation range: 100 μΩ ~ 11 MΩ
► Best measurement uncertainty of resistance: 100 ppm
► Two-wire and four-wire resistance modes
► RS232 interface
► Large-size LCD touch screen
※ For industry and laboratory application only
제품 카달로그
제품문의
TD1470 is an instrument that can accurately simulate a wide range of DC standard resistance.
It can realize the verification and calibration of single-arm bridges, double-arm bridges, high-precision DC resistance meters and digital micro-ohmmeters.
