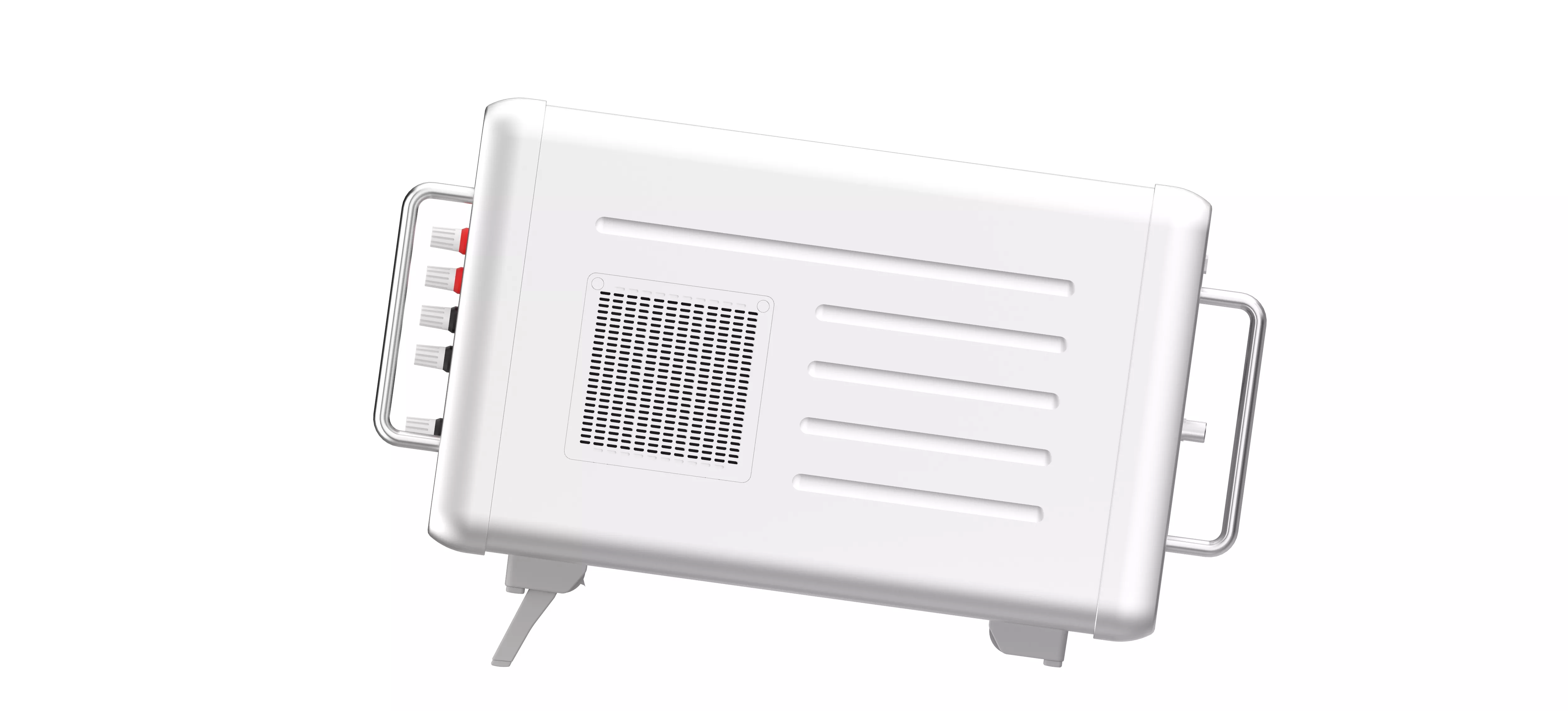

표준저항 Standard Resistance Measuring Device 모델명: TH0210
► Current output: 100 μA ~ 3.2 A.
► Resistance measurement: 1 mΩ ~ 100 kΩ (wider resistance range can be customized).
► Resistance measurement uncertainty: 0.5 ppm ~ 3 ppm (external primary standard resistance)
► Typical test cycle: about 4.5 min/time.
► The typical value of constant current output stability is 2 ppm/min.
※ For industry and laboratory application only
제품 카달로그
제품문의
TH0210 is a direct-current-comparator bridge designed for the automatic measurement and display of the ratio of two resistances to high accuracy.
It’s applied for the measurement, comparison, transmission, verification of standard resistance.
