► DC voltage output: ± (0 ~ 1020 V),
► DC current output: ± (0 ~ 20.5 A)
► AC voltage output: 1 mV ~ 1020 V
► AC current output: 29 μA ~ 20.5 A
► Sine wave frequency: 10 Hz ~ 500 kHz
► Simulated DC resistance: 0 Ω ~ 1100 MΩ, continuously adjustable
※ For industry and laboratory application only

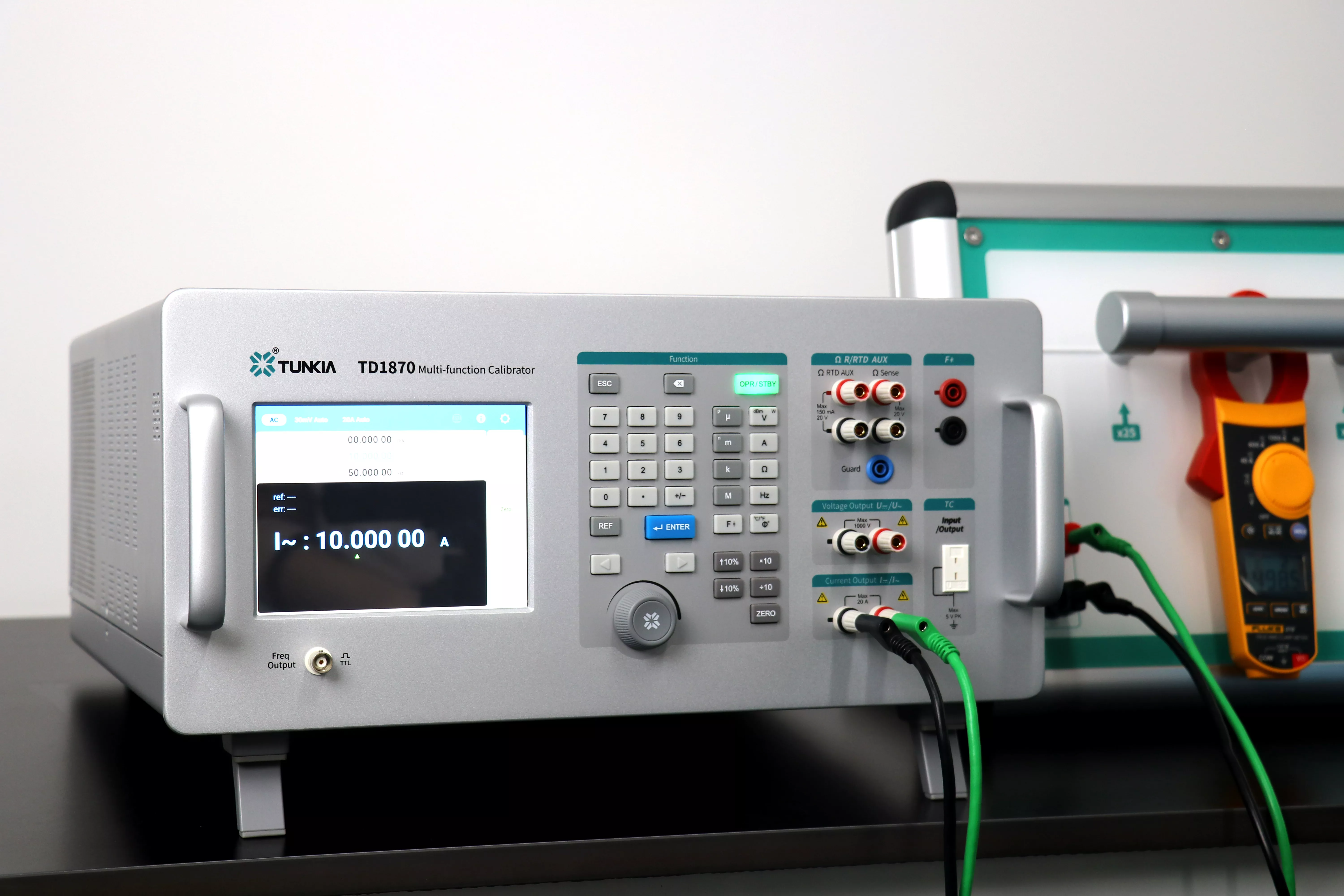

TD1870 multifunction calibrator is a wide-range, high-precision multifunction calibrator. It integrates ultra-precise DC and AC voltage and current sources, capable of generating high-performance DC voltage, DC current, DC power, as well as AC voltage, AC current, AC power, phase, and frequency.
Additionally, it features resistance simulation, thermocouple and RTD simulation, and pulse output functions. It is specifically designed for calibrating 5½-digit and lower digital multimeters and other precision electrical measurement instruments.
