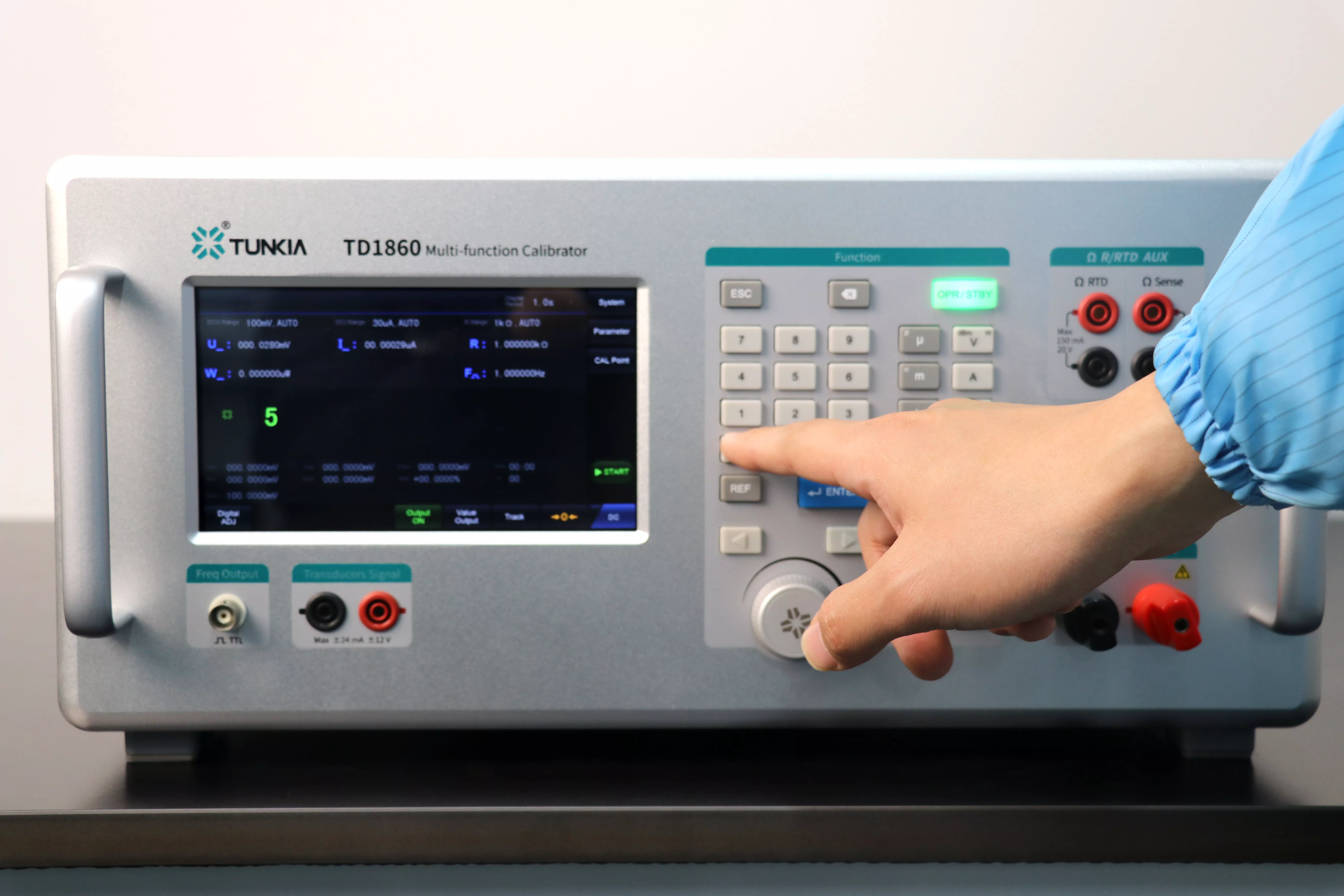

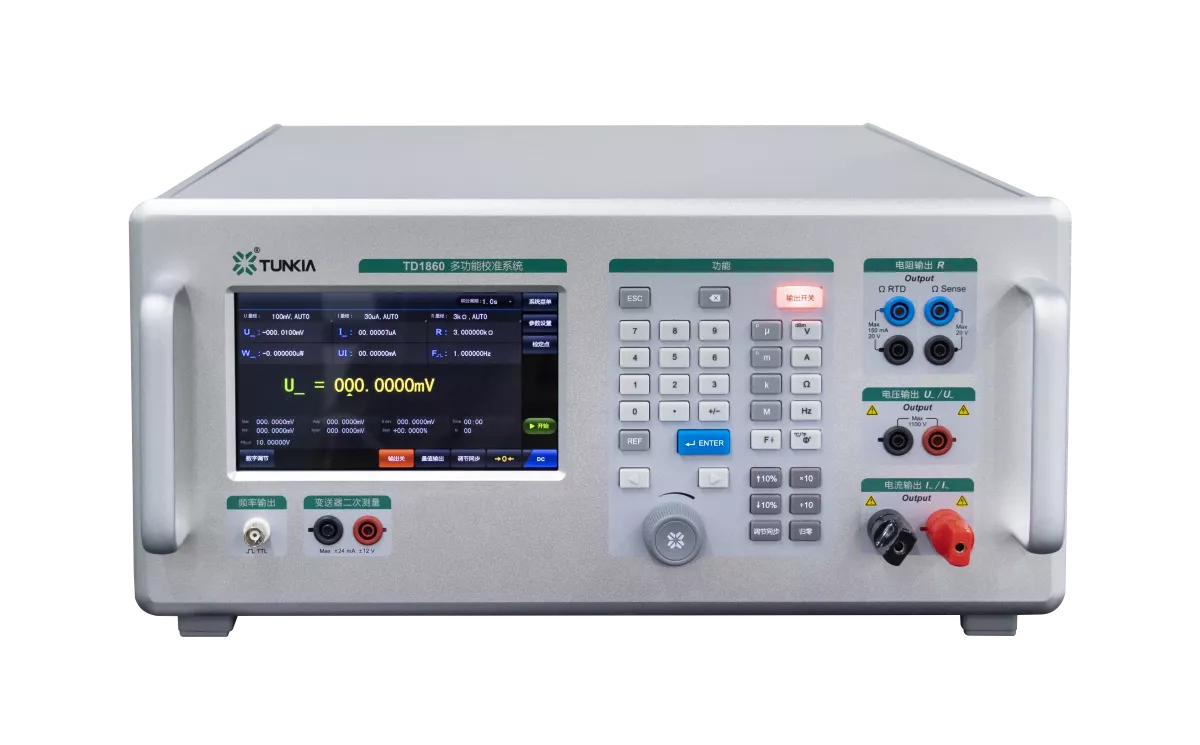

다기능 교정기 Multifunction Calibrator 모델명: TD1860
► DC voltage output: ± (10 mV ~ 1100 V)
► DC current output: ± (3 μA ~ 22 A)（33 A optional）
► AC voltage output: 3 mV ~ 1100 V
► AC current output: 30 μA ~ 22 A（33 A optional）
► Sinusoidal wave frequency: 45 Hz ~ 1500 Hz
► Simulated DC resistance：0 Ω ~ 220 MΩ, Continuously adjustable
※ For industry and laboratory application only
제품 카달로그
제품문의
TD1860 is a multi-function calibrator with wide range and high precision, integrates AC\DC voltage source, AC\DC current source, DC resistance source, etc.
The DC accuracy class is up to 0.01, and the AC accuracy class is up to 0.05. It’s applied for calibrating 4.5 digits multimeter, voltmeter, ammeter, ohmmeter, power meter.
