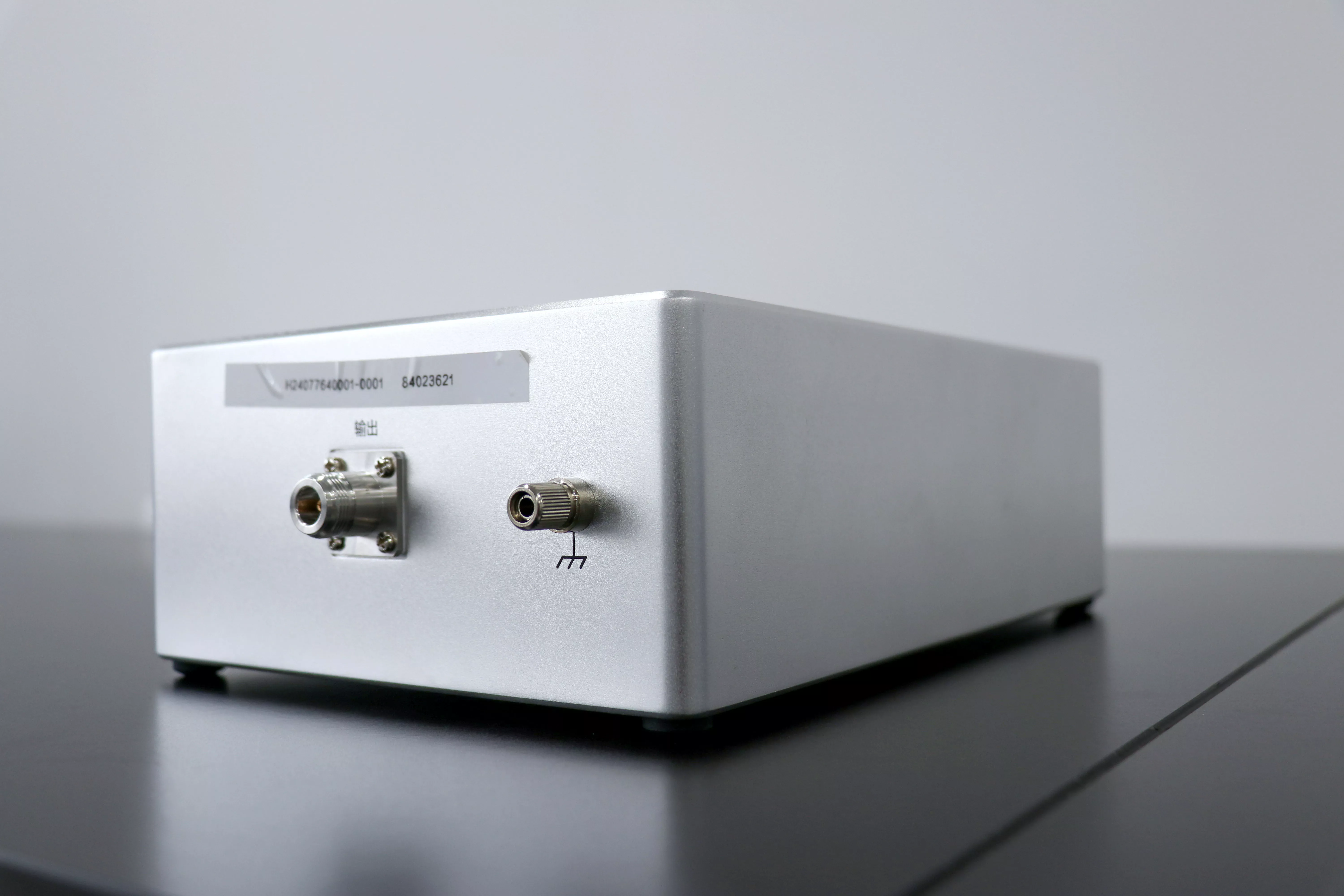

광대역 전압 분배기 Wideband Voltage Divider 모델명: TH0150
► Frequency: DC ~ 100 kHz.
► Optimal proportion uncertainty of DC: 20 ppm.
► Optimal AC/DC difference: 5 ppm@53 Hz.
► Optimal Phase displacement: 2 μrad@53 Hz.
► Nominal output voltage is 1 V (other voltage values can be customized)
※ For industry and laboratory application only
제품 카달로그
제품문의
TH0150 is a set of wide frequency voltage dividers with 9 different ranges, the nominal input voltage of 10 V~1 kV can be converted into a small voltage of 1 V to realize the voltage measurement of wide frequency or complex waveform, which is suitable for calibrating wideband voltage sources, voltmeters, voltage dividers, transformers and other equipment.
