정밀 전류 및 전압 측정 표준 Precision Current and Voltage Measurement Standard 모델명: TH0520
► Direct current measurement: 10 μA~2 A
► Direct voltage measurement: 10 mV~10.5 V
► Frequency range: DC, 40 Hz~5 kHz
► Current measurement uncertainty up to 50 ppm @DC
► Voltage measurement uncertainty up to 30 ppm @DC
※ For industry and laboratory application only
제품 카달로그
제품문의

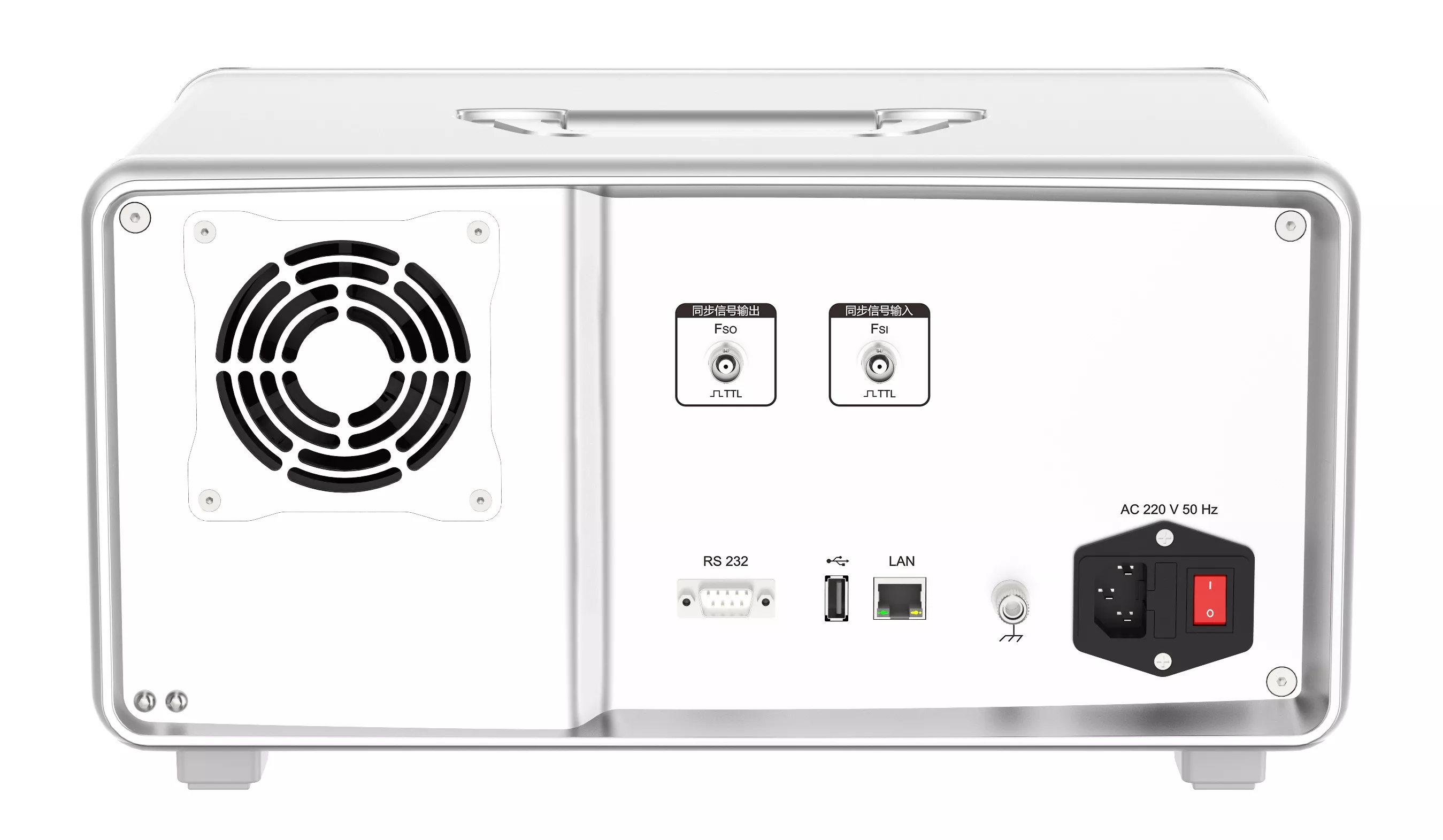

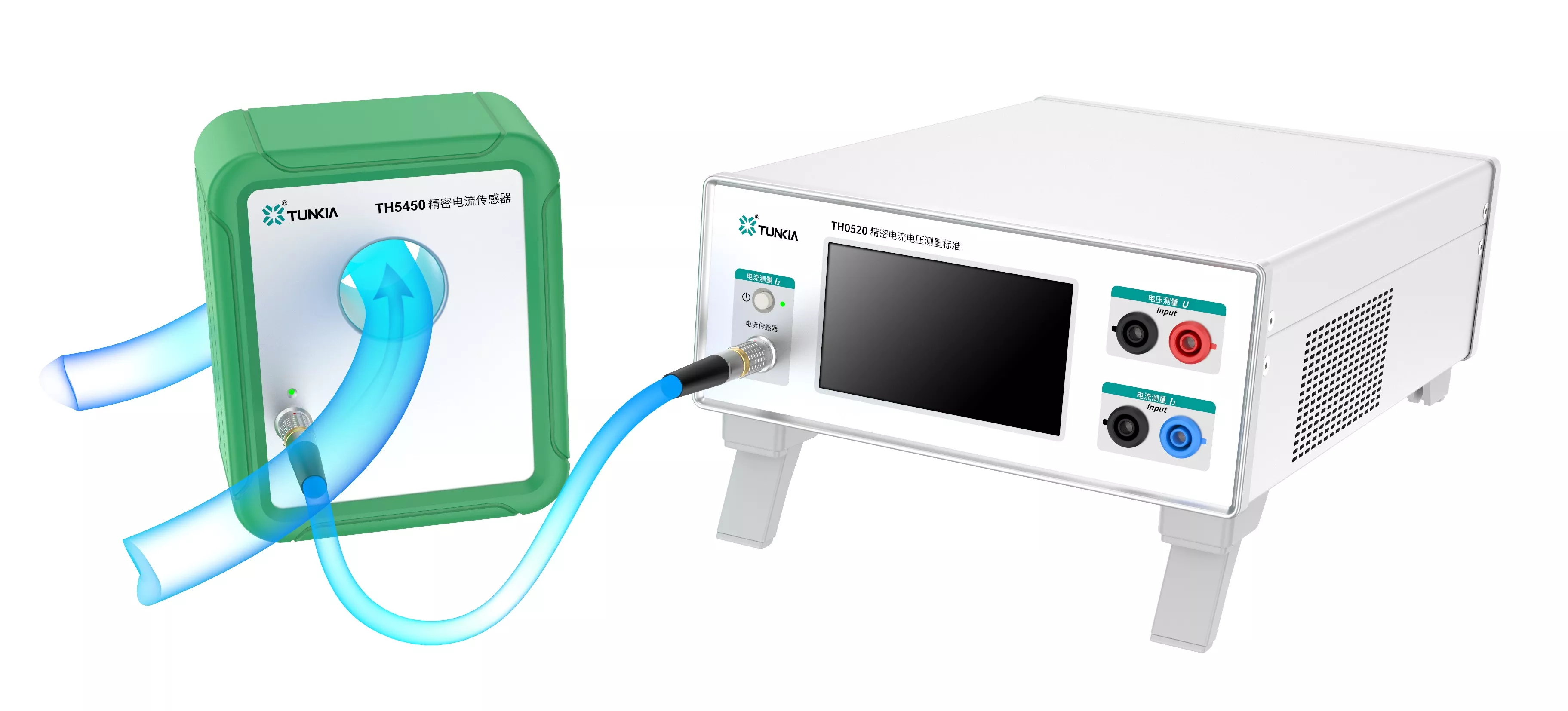

TH0520 is a precision electrical measuring instrument that directly measures currents up to 2 A or 1 0.5 V voltage, mated to precision I/V, V/V conversion standards, current sensor can be set AC DC high current or high voltage measurement system.
