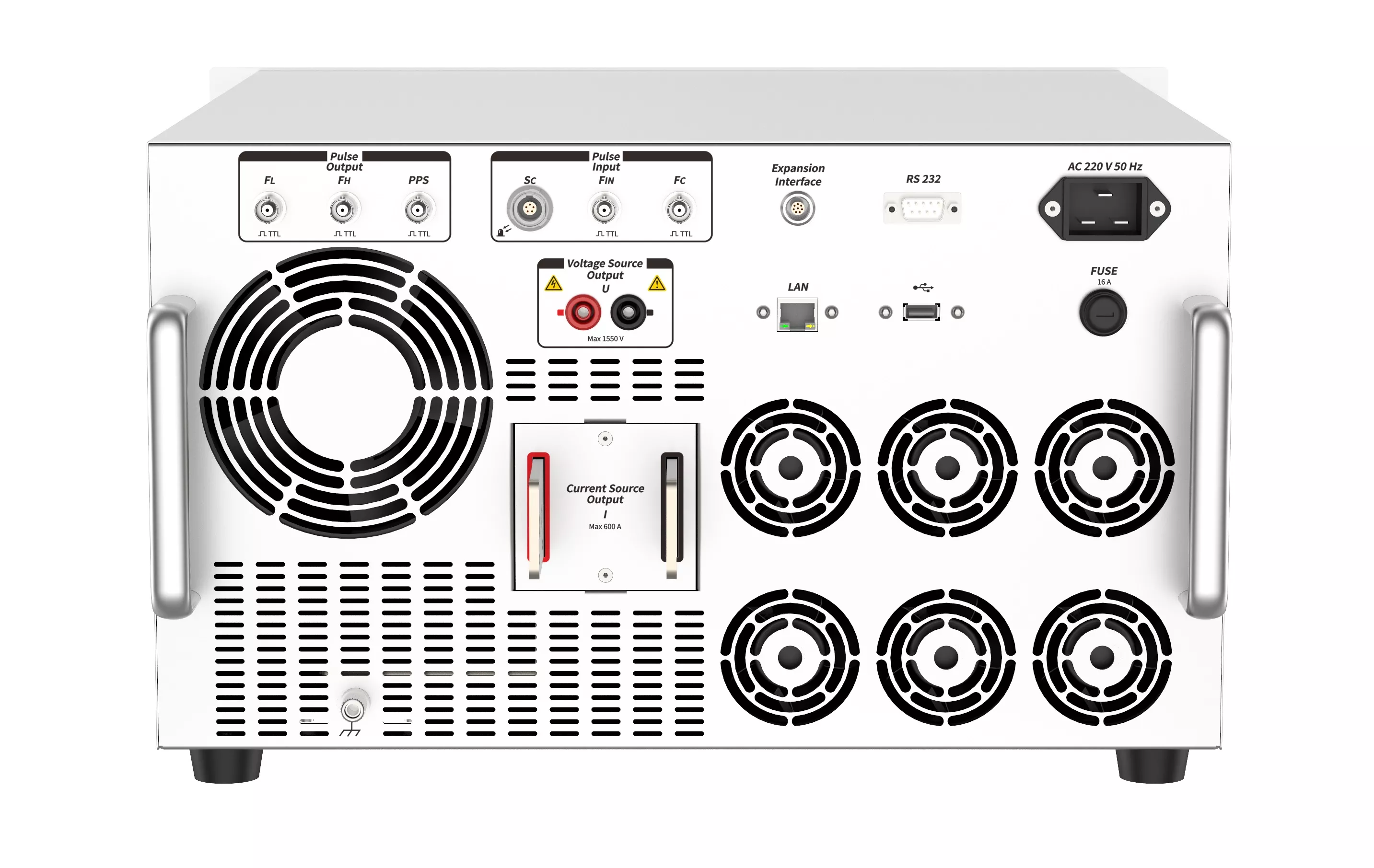

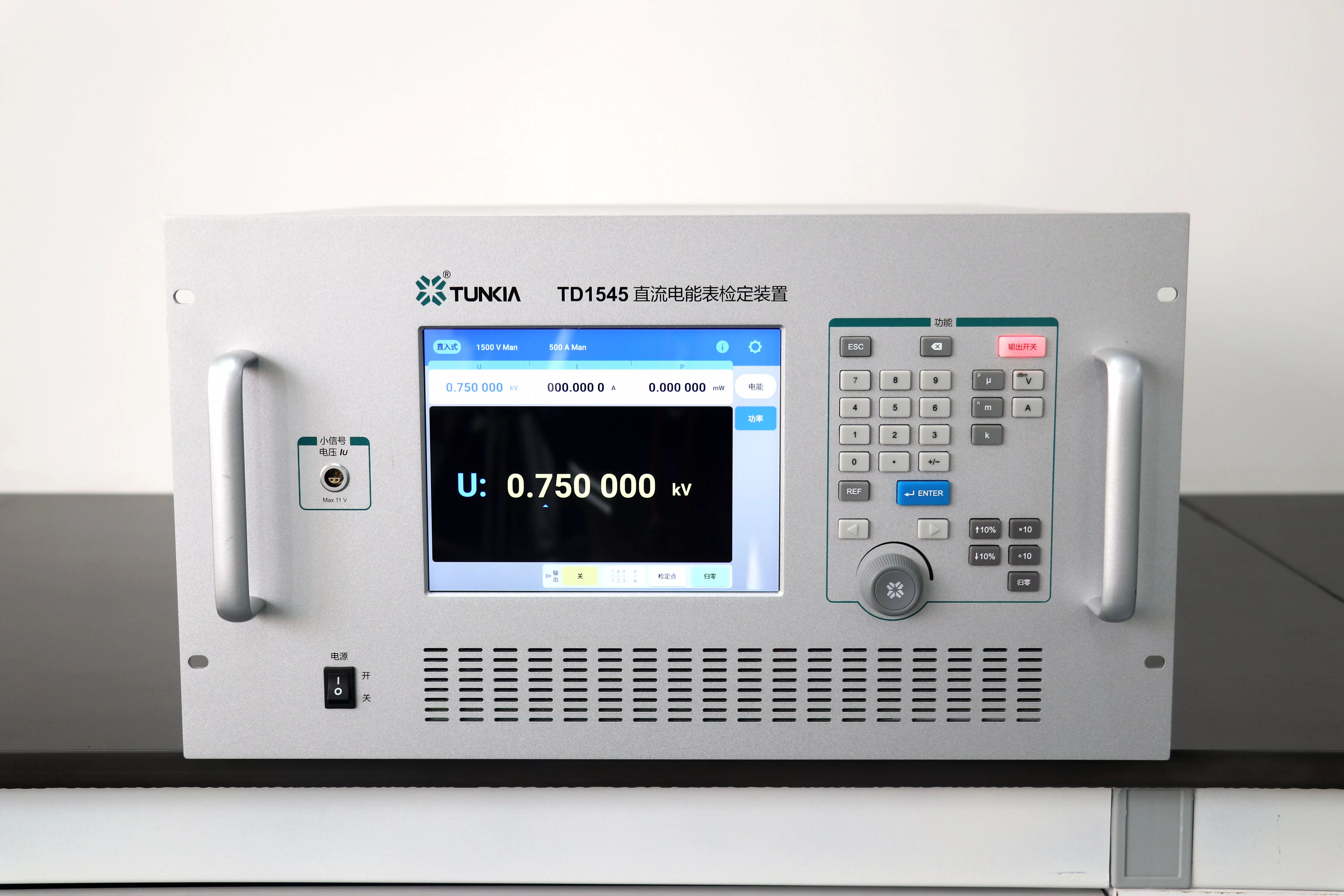

DC 전력량계 검증 장치 DC Energy Meters Verification Device 모델명: TD1545
► Accuracy: class 0.02, class 0.05
► DC standard voltage source：10 mV～1150 V / 1550 V（option）
► DC standard current：1 mA～600 A
► DC small signal voltage source(four-line)：10 μV～11 V
※ For industry and laboratory application only
제품 카달로그
제품문의
TD1545 is a multi-functional instrument dedicated to the verification and calibration of DC electrical meter. It consists of DC voltage standard source, DC current standard source, DC small signal voltage source, DC standard virtual power source etc.
It can verify not only conventional DC electrical measuring instruments, such as DC voltmeter/ammeter/power meter, but also DC shunt, direct and indirect connected DC energy meters.
