DC 전력량계 검증 장치DC Energy Meters Verification Device 모델명: TD1575
► Power/electric energy measurement: class 0.02, class 0.05.
► DC standard voltage source：10 mV～1150 V / 1550 V（option）
► DC standard current source：20 μA～120 A
► DC four wire small signal voltage source：10 μV～4.4 V
※ For industry and laboratory application only
제품 카달로그
제품문의

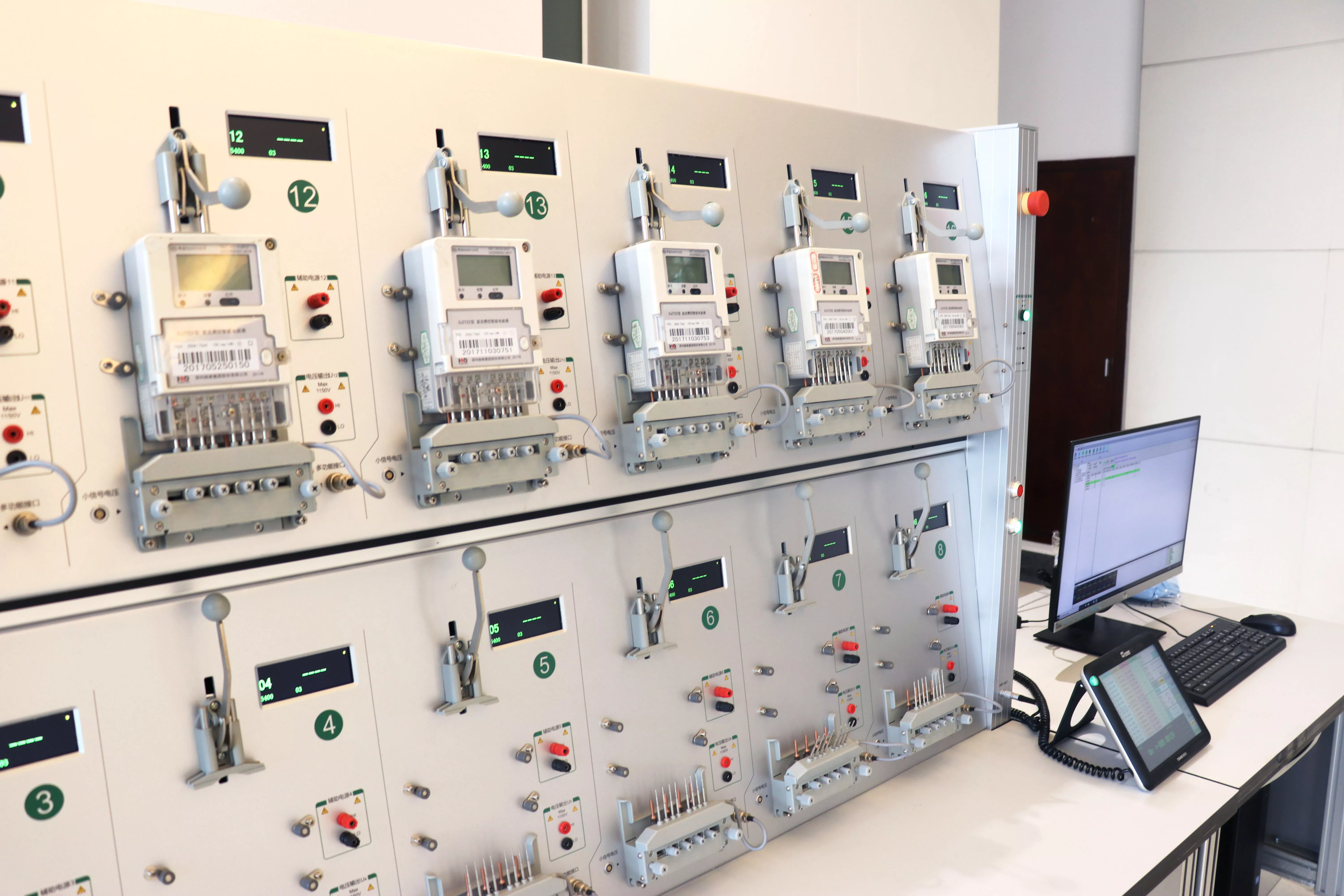

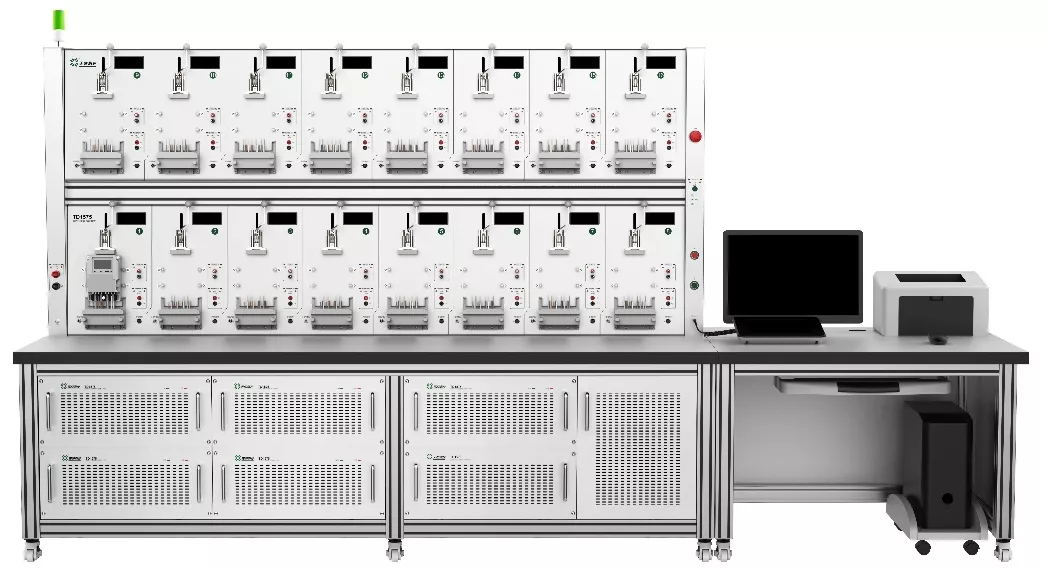

TD1575 is a platform device dedicated to the verification of DC electric energy meters, which consists of DC voltage standard source, DC current standard source, DC small signal voltage standard source (corresponding to the voltage of the shunt), multi meter position verification platform, verification software, etc.
Support verification of direct connected and indirect connected DC energy meters at the same time.
