► Power / energy measurement uncertainty: class 0.01
► Voltage measurement range: 6 V ~ 528 V (a wider range can be customized)
► Current measurement range: 1 mA～120 A
► Fundamental frequency: 45 Hz ~ 65 Hz (400Hz optional)
※ For industry and laboratory application only

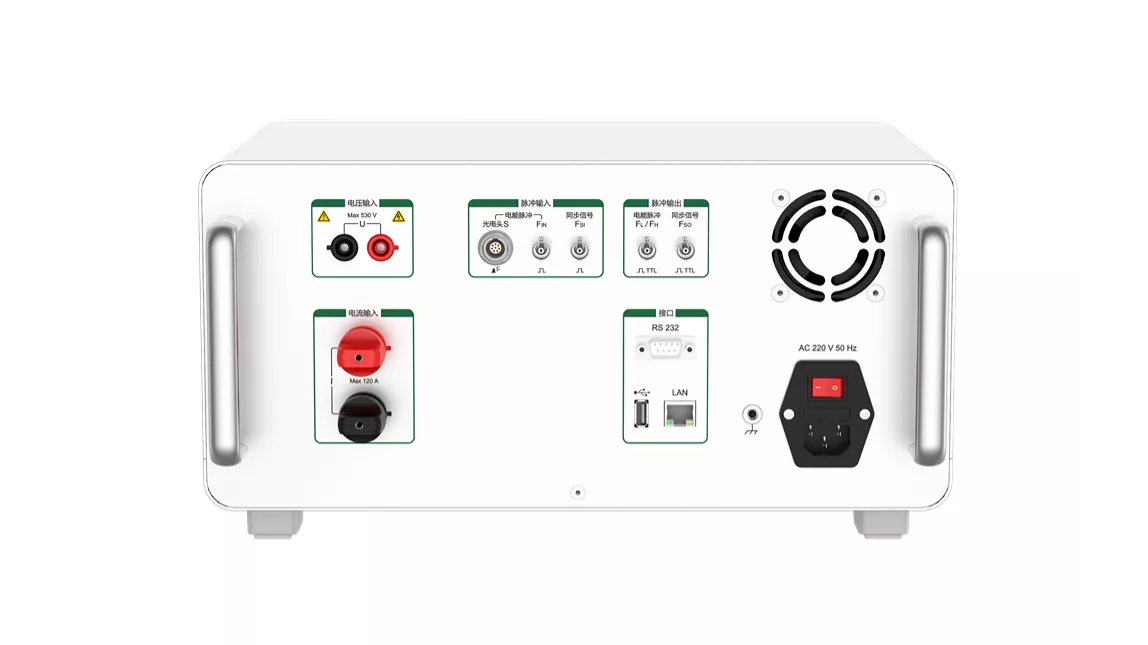

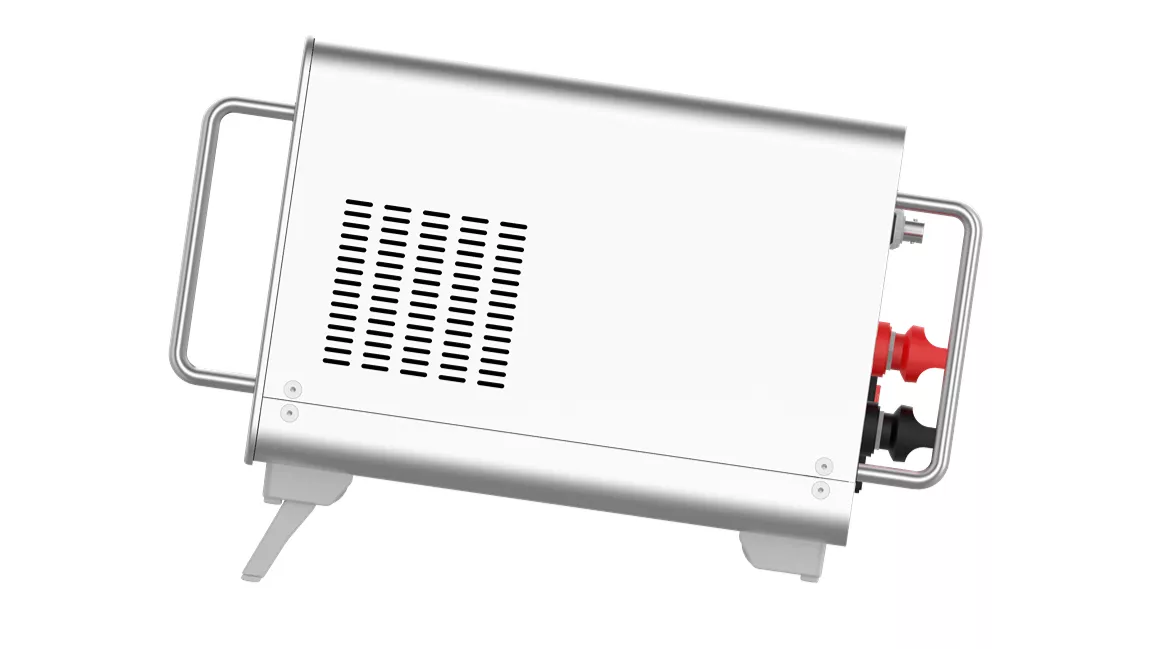

TD3110 is a high-precision single-phase standard instrument that can simultaneously measure multiple electrical parameters in the circuit such as: voltage, current, frequency, phase, harmonics, active power / energy, reactive power / energy, apparent power, power factors etc.
This instrument has a wide range of applications. It can be used as a standard meter for single-phase energy meter calibration devices that meet the new national standards and R46.
It is also suitable for calibrating single-phase power standard sources/meters.
