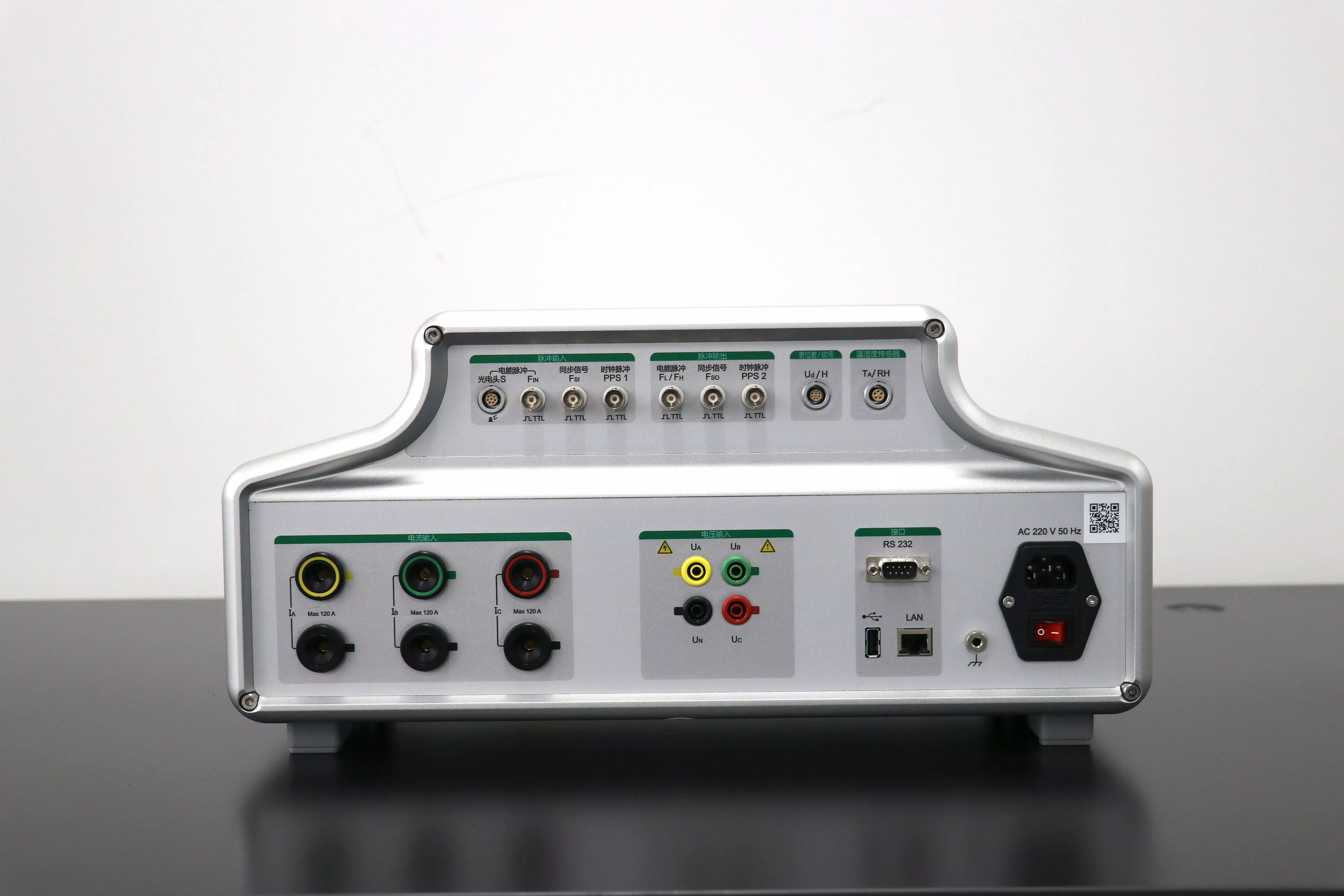

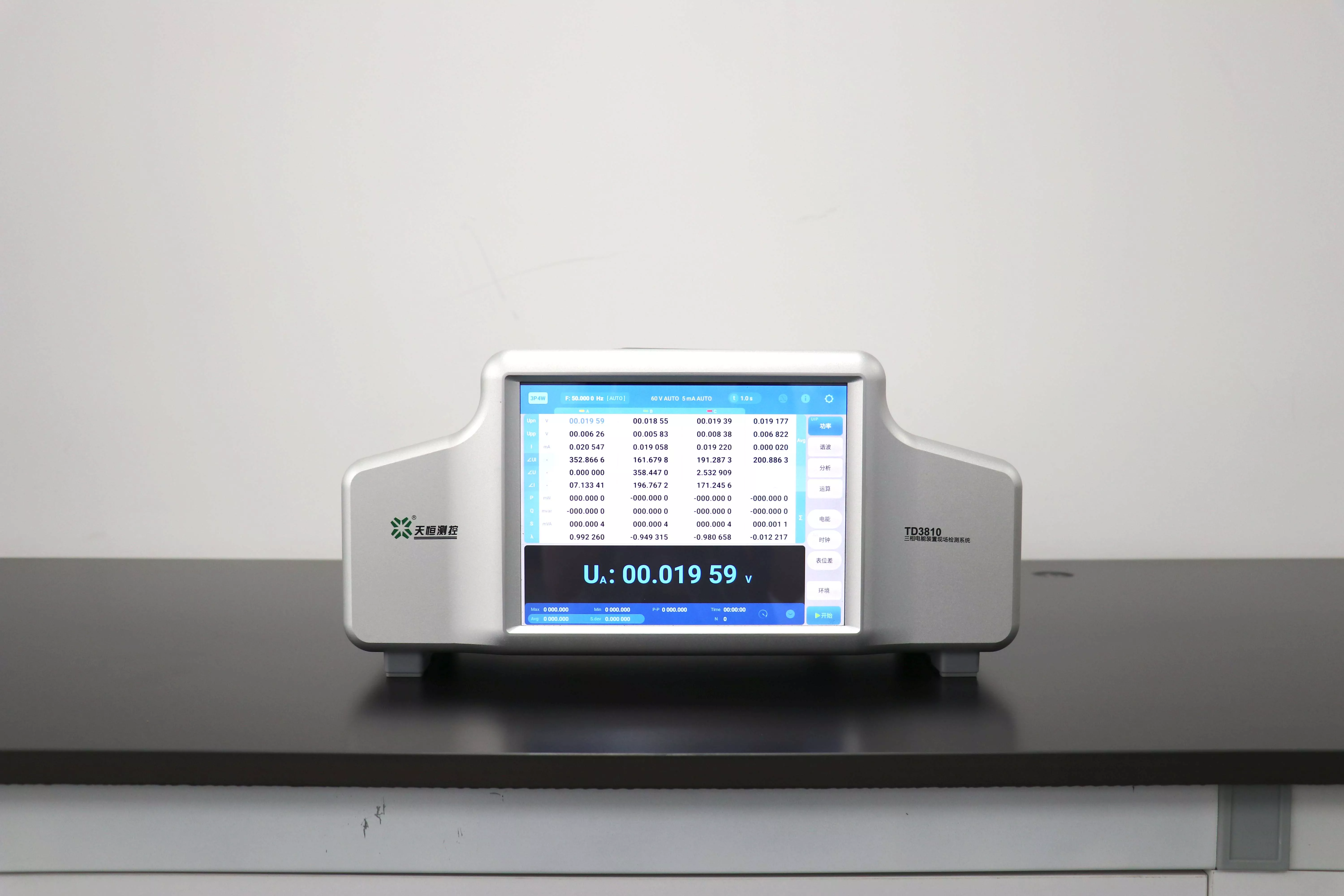

3상 에너지 장치 현장 검사 시스템 Three-phase Energy Device Field Inspection System 모델명: TD3810
► Power / power accuracy 0.01,0.02 optional
► Voltage measurement range: 6 V ~528 V (customized for wider range)
► Current measurement range: 0.2 mA ~ 120 A
► Basal wave frequency: 45 Hz ~65 Hz (optional 400Hz)
※ For industry and laboratory application only
제품 카달로그
제품문의
TD3810 is a comprehensive testing system dedicated to the on-site assessment of the AC electricity meter verification device.
The functional integration of the instrument is extremely high, and a set of equipment can complete the verification items specified by JJG 597 (insulation and voltage test require the cooperation of safety equipment). It is not only suitable for assessing the three-phase energy standard device, but also used as a high grade energy standard meter.
