제품소개 Products

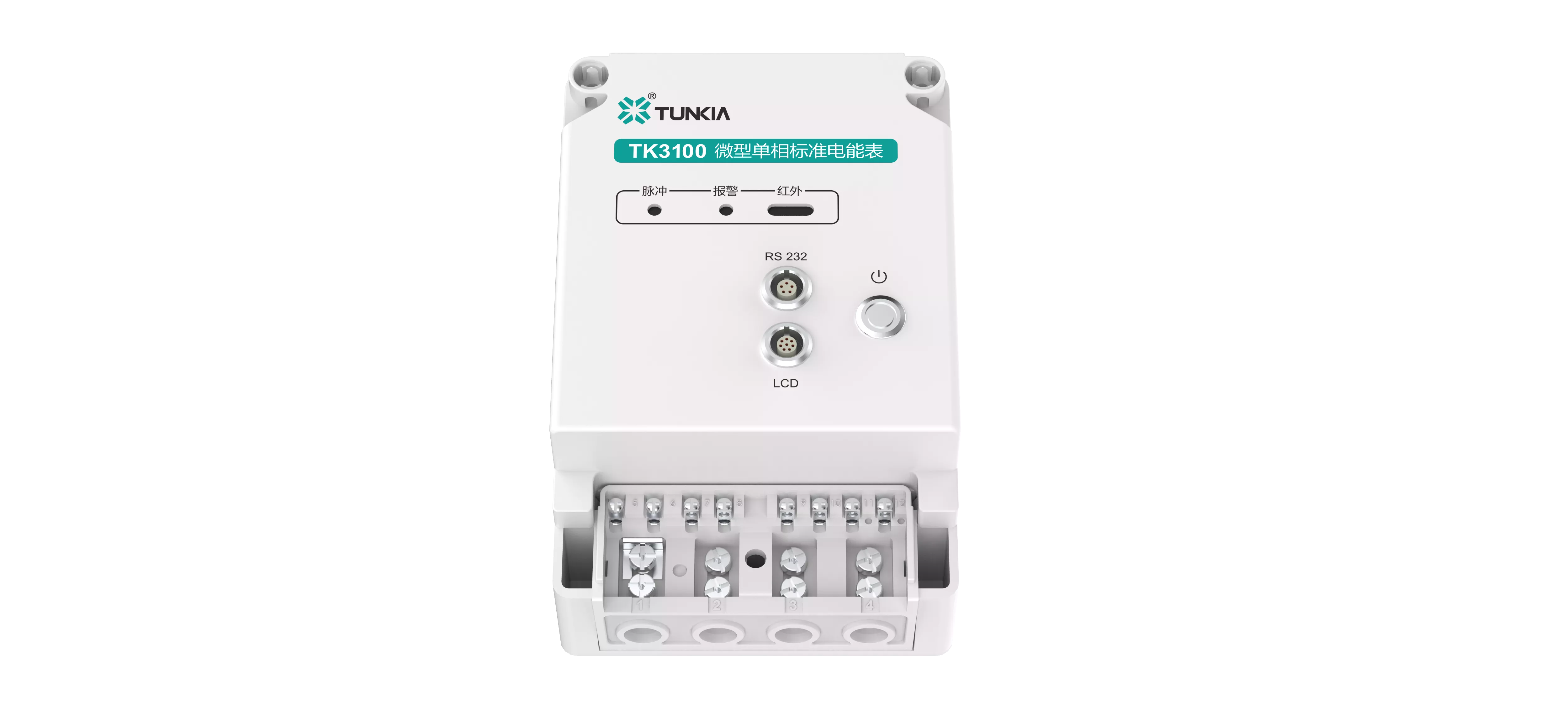

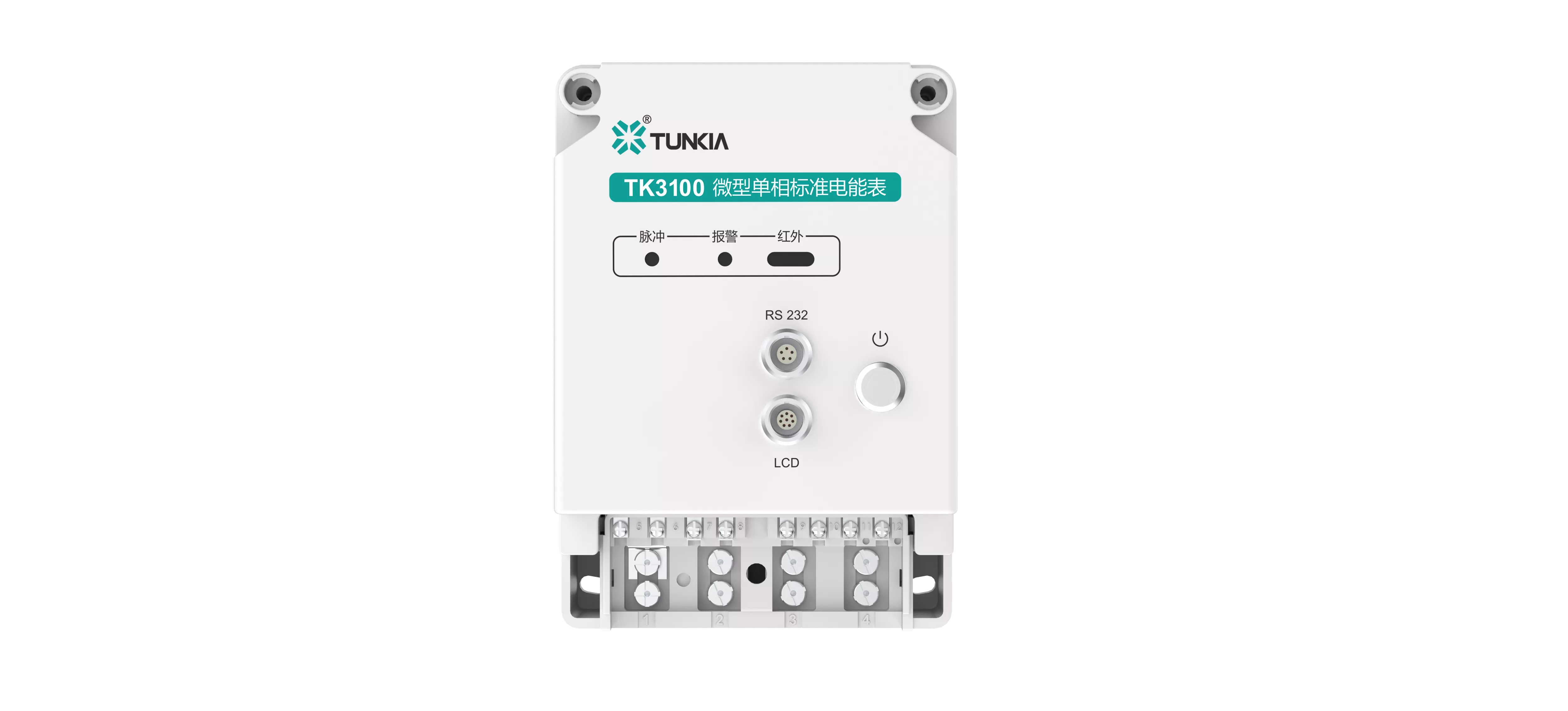

설치형 단상 전력량계 Installed Single-Phase Energy Meter 모델명: TK3100
► Accuracy class 0.02 and class 0.05 are optional
► Voltage measurement range: 50 V ~ 288 V
► Current measurement range: 5 mA～120 A
※ For industry and laboratory application only
제품 카달로그
제품문의
The TK3100 miniature installed single-phase standard energy meter is a standard energy meter with the same physical dimensions as conventional installed single-phase energy meters.
It is specially used to verify the AC energy meter calibration devices or energy measurement calibration units in AC energy meter automated test system.
It can complete testing items such as basic error and multi-channel output consistency.
