► High accuracy: Accuracy class 0.01, output power stability is 0.01% / 2min
► High reliability: Automatic range switching. It can guarantee the measurement accuracy even when the machine is switched on and off in the limit state (500 V, 100 A)
► Reliable quality: Temperature coefficient ＜0.5 ppm/K
► Harmonic output / measurement: The 2nd ~ 63st @ 50 Hz / 60 Hz, Harmonic content and phase are programmable
※ For industry and laboratory application only

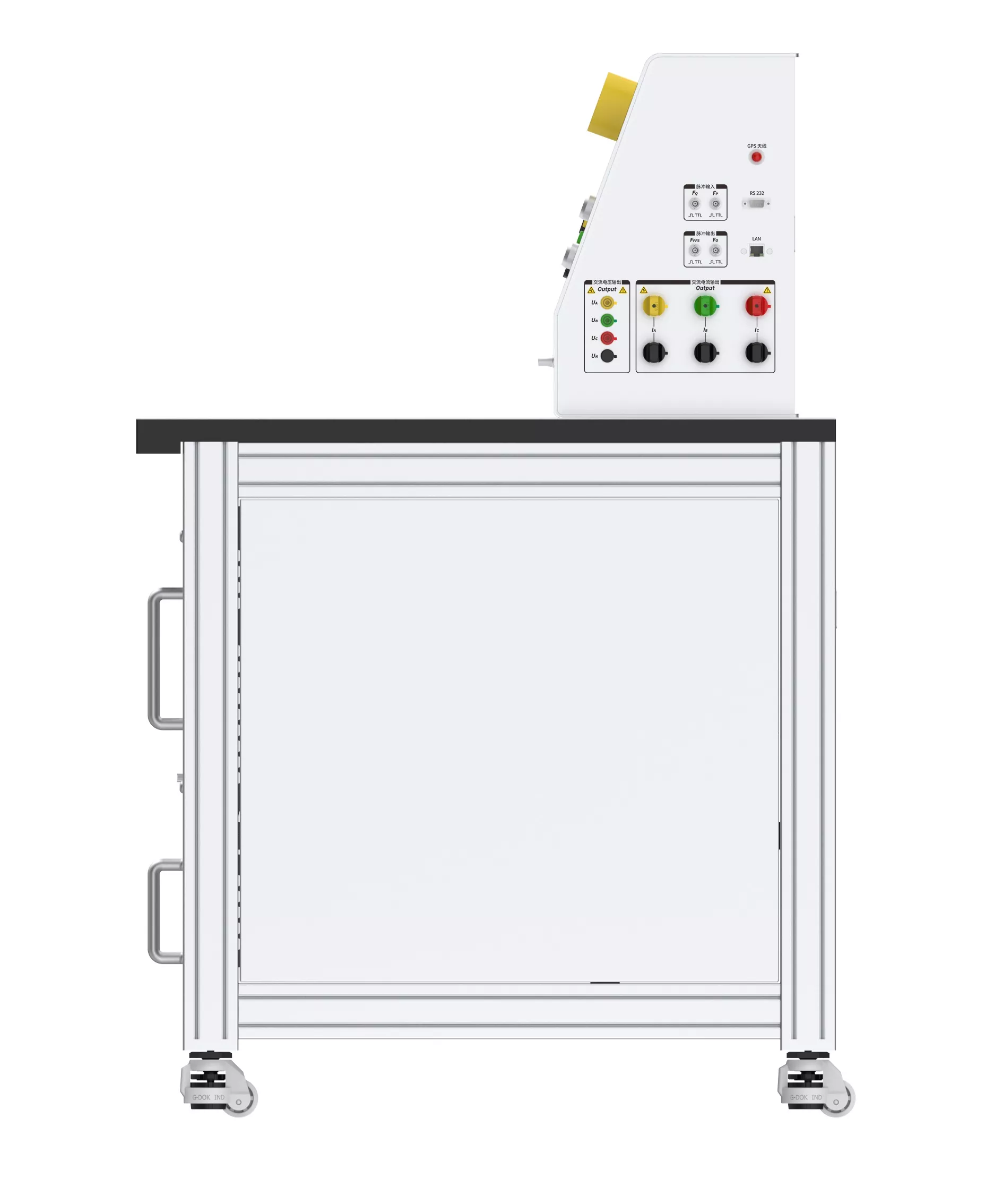

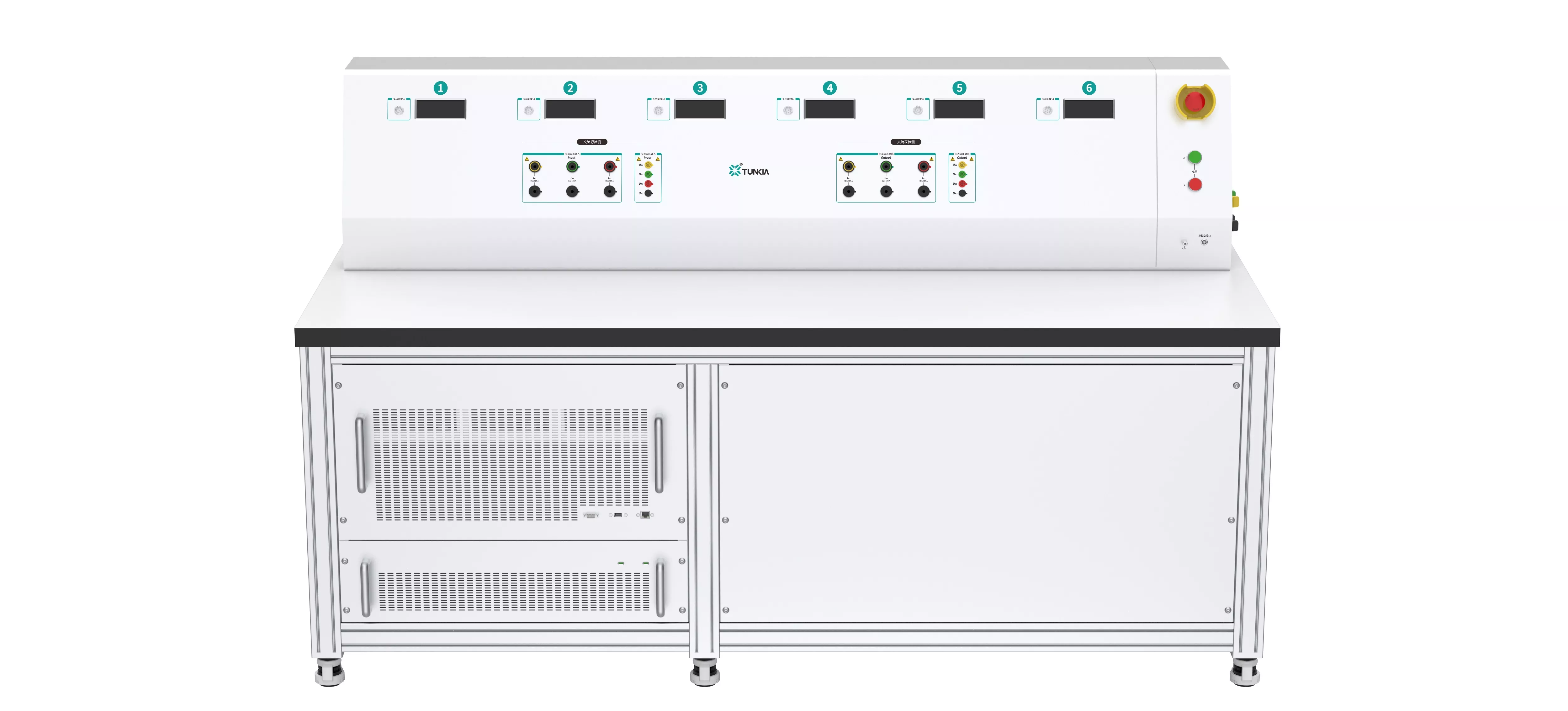

TD3610 is applied for the verification of three-phase energy reference standard.
It mainly consists of three-phase precision standard power source, Class 0.01 three-phase standard watt-hour meter, measurement and control platform, PC(optional) and verification software.
TD3610 can automatically complete the class 0.02 and the following class of R46 AC standard electricity meter or AC standard source verification.
