► Three-phase voltage standard source: 0~11 kV;
► Three-phase current standard source: 2 A～1.1 kA
► F: 45 Hz～1100 Hz
► Can measure single-phase, three-phase three-wire or four-wire, positive/reverse phase sequence and other power and electric energy (including negative direction)
► Power/energy accuracy: class 0.05
※ For industry and laboratory application only

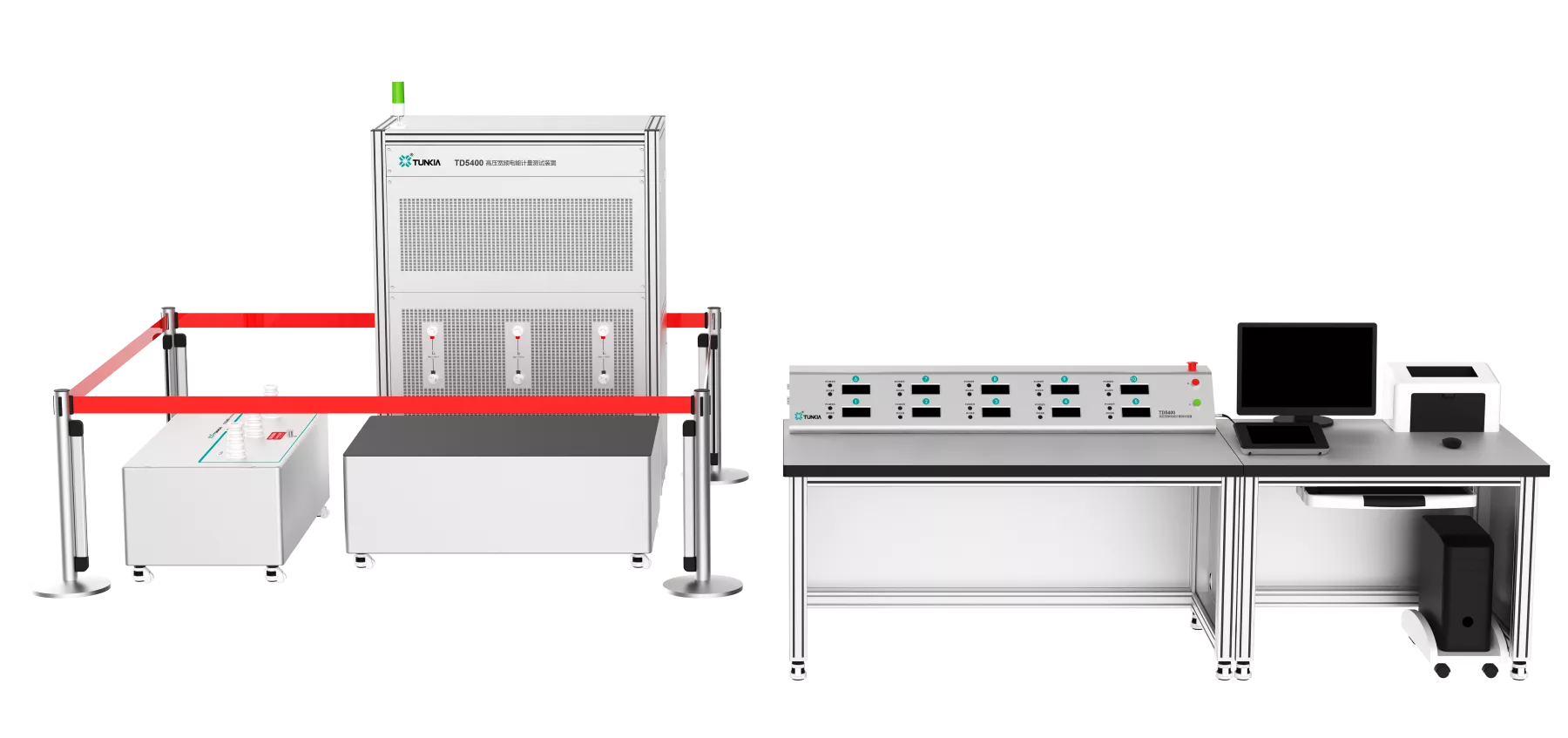

TD5400 is a comprehensive high-voltage electric energy measurement device that can simulate on-site working conditions and test the impact on metering equipment.
The annual measurement uncertainty of power/electric energy of the device reaches class 0.05.
It is suitable for establishing high-voltage wideband electric energy measurement test platforms in the fields of electric power, measurement, manufacturing, scientific research and other fields.
