DC 고전압 센서 시험 장치 DC High Voltage Sensor Testing Device 모델명: TI5100

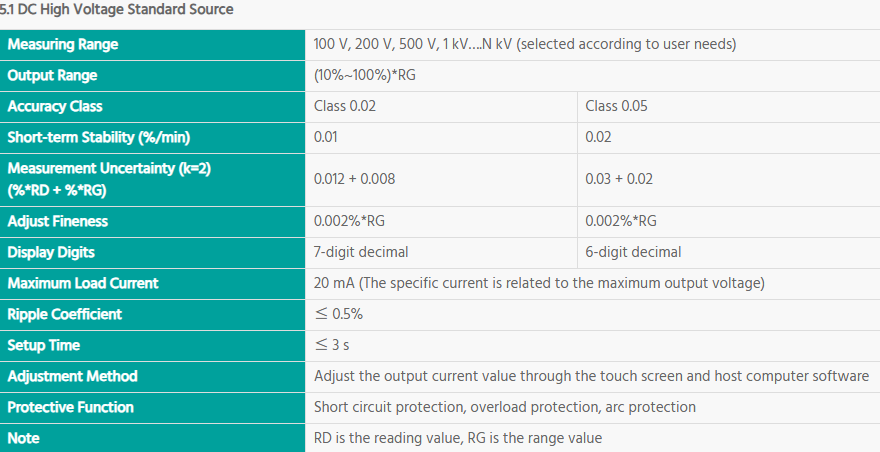

► DC high voltage standard source: 10 V ~ N kV
► Accuracy: Class 0.02, class 0.05
► Typical value of short-term stability is better than 0.01%/min

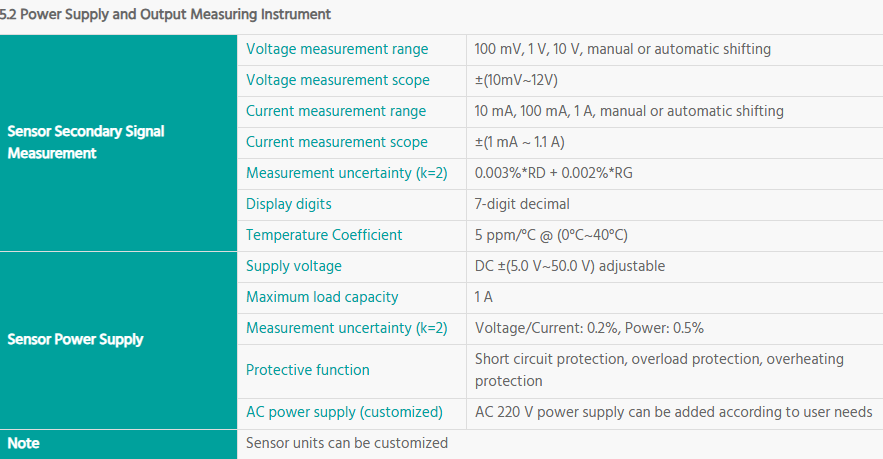

► Sensor secondary output power measurement: class 0.005
※ For industry and laboratory application only
견적문의

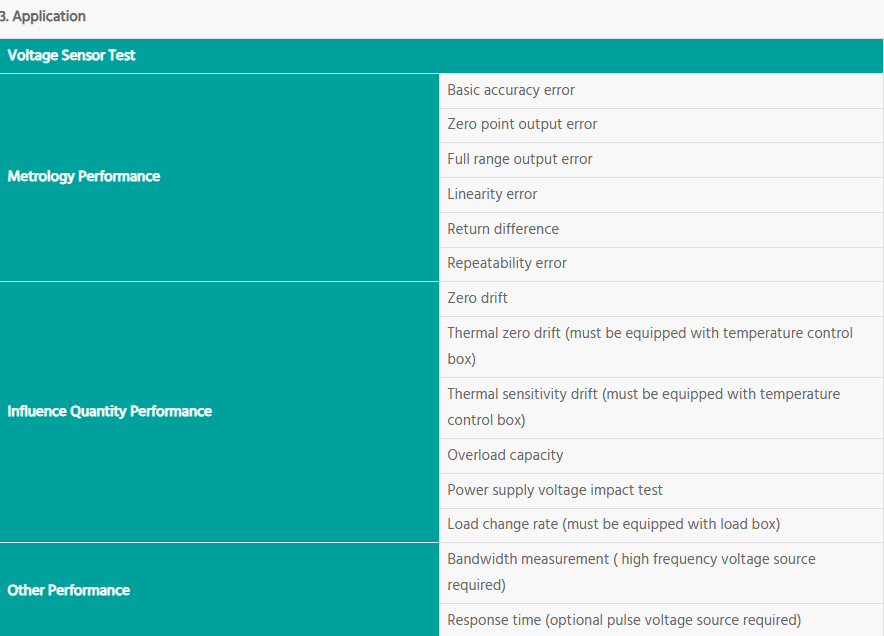

TI5100 is a multifunctional device for testing the measurement performance of DC high-voltage sensors.
It consists of a DC high-standard source, sensor secondary signal measurement module, auxiliary power supply, sensor test tooling, workbench, computer and special test software.
It can be flexibly configured according to user needs, including output voltage and accuracy, the number of sensor units being tested, etc.
