► Wideband constant current output: 2 μA～21 mA
► Wideband constant voltage output: 0.5 V～25 V
► Current source frequency: DC, 10 Hz～3 kHz;
► Voltage source frequency: DC, 10 Hz～1 MHz
► AC voltage measurement: 0.01 V～600 V
※ For industry and laboratory application only

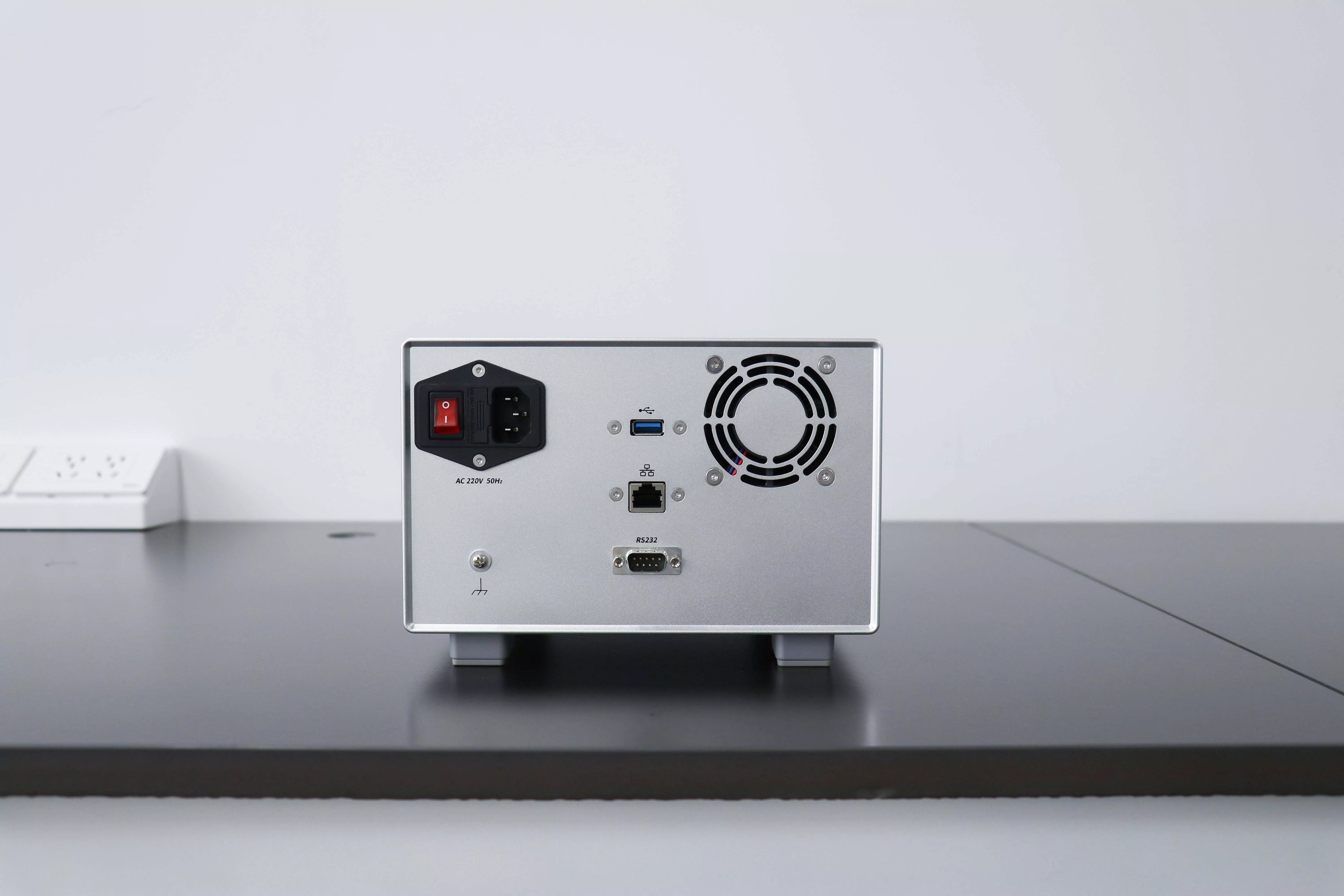

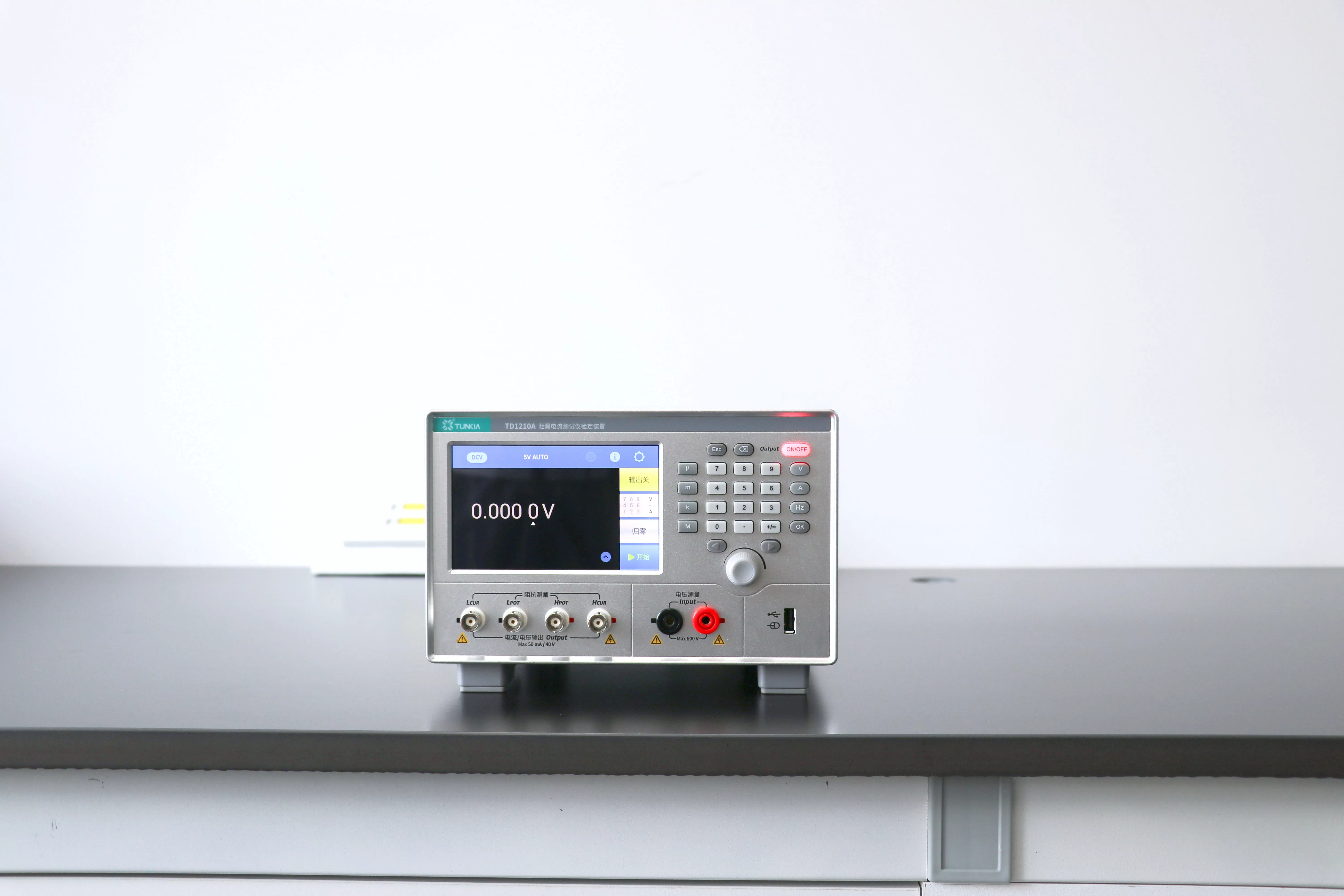

TD1210A leakage current tester Verification device refers to JJG 843-2022 Leakage Current Tester and JJG 1188-2022 Medical Leakage Current Testers (Tunkia participated in drafting of these two regulations).
It integrates a wideband constant current standard source, constant voltage standard source, DC resistance meter, impedance tester, and AC voltage standard meter.
A single device can complete the verification of conventional leakage current testers, touch current testers, and medical leakage current testers.
Compared to traditional multi-standard instrument solutions, it offers advantages such as simplified wiring, easy operation, and high testing efficiency, making it highly convenient for on-site traceability work.
