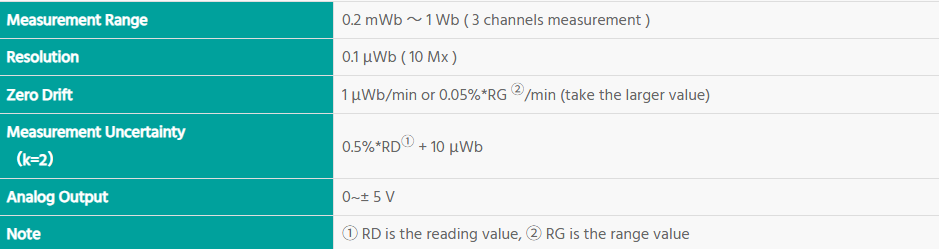

► Measurement Range: 0.2 mWb～1 Wb
► The drift after zero adjustment is very small, the typical value is lower than 1 μWb/min
► 5-digit display, the minimum resolution is as low as 0.1μWb
► Measure XYZ axis magnetic flux vector components and composite values
※ For industry and laboratory application only

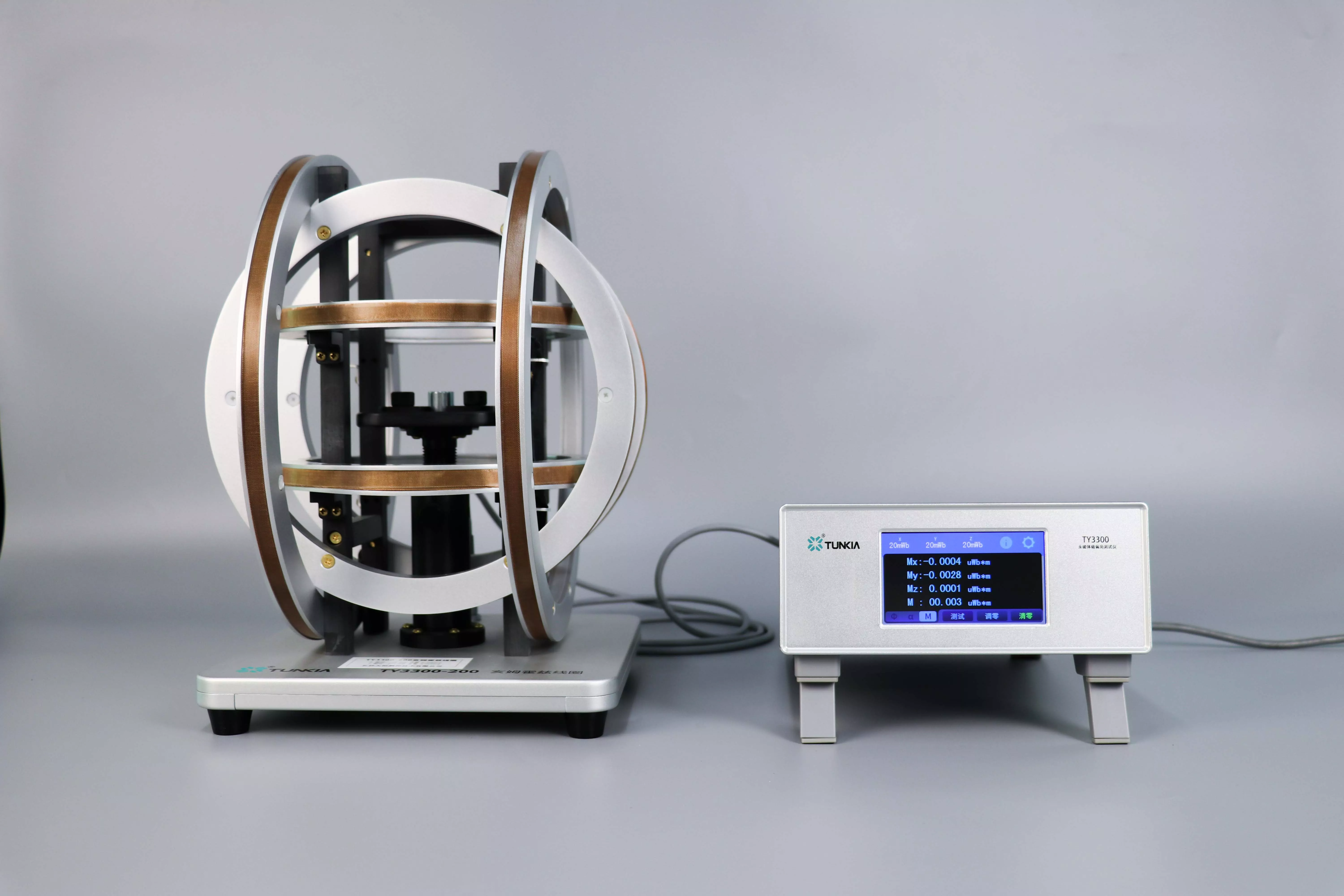

TY3300 is a system dedicated to measuring the magnetic declination of permanent magnet materials. It is composed of three-dimensional Helmholtz coils, three-channel electronic flux meters, and computer software.
It is suitable for measuring the three magnetic flux components,ΦX、ΦY、ΦZ, on the XYZ axes of permanent magnet materials such as permanent magnet ferrite, AlNiCo, NdFeB, and Samarium Cobalt (SmCo) Magnets. It automatically calculates the magnetic moments MX, MY, MZ, the total magnetic moment M, and the magnetic declination α for each axis.
It is ideal for analyzing and evaluating the magnetization performance of permanent magnets.
Reference Standard IEC 60404-14:2002 "Methods of measurement of the magnetic dipole moment of a ferromagnetic material specimen by the withdrawal or rotation method".
