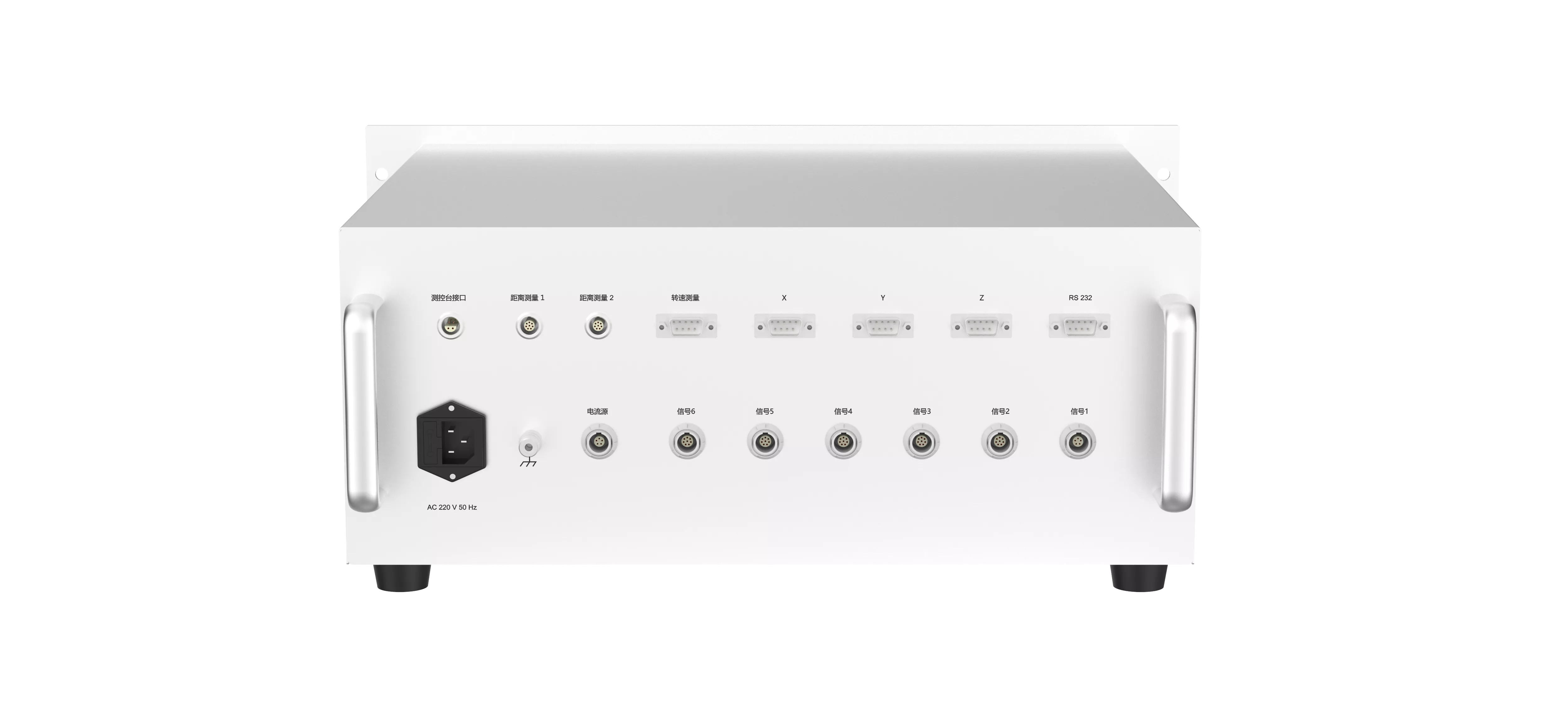

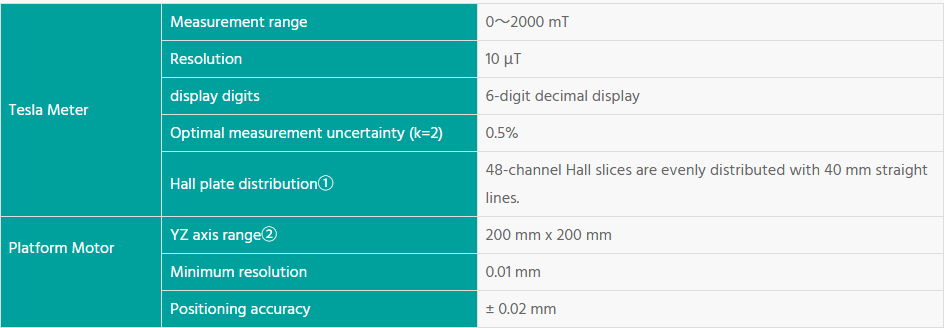

► The test host integrates a 48-channel Gaussmeter, with a measurement range of 0 to 2000 mT, a minimum resolution of 0.1 mT, and a measurement uncertainty of 0.5%
► The Hall probe integrated board integrates 48-channel Hall probes for magnetic field measurement, with a single-channel sampling speed of 100 points/s
► The sensor chip of the Hall probe is encapsulated by wear-resistant material, which is elastic and not easy to break
※ For industry and laboratory application only

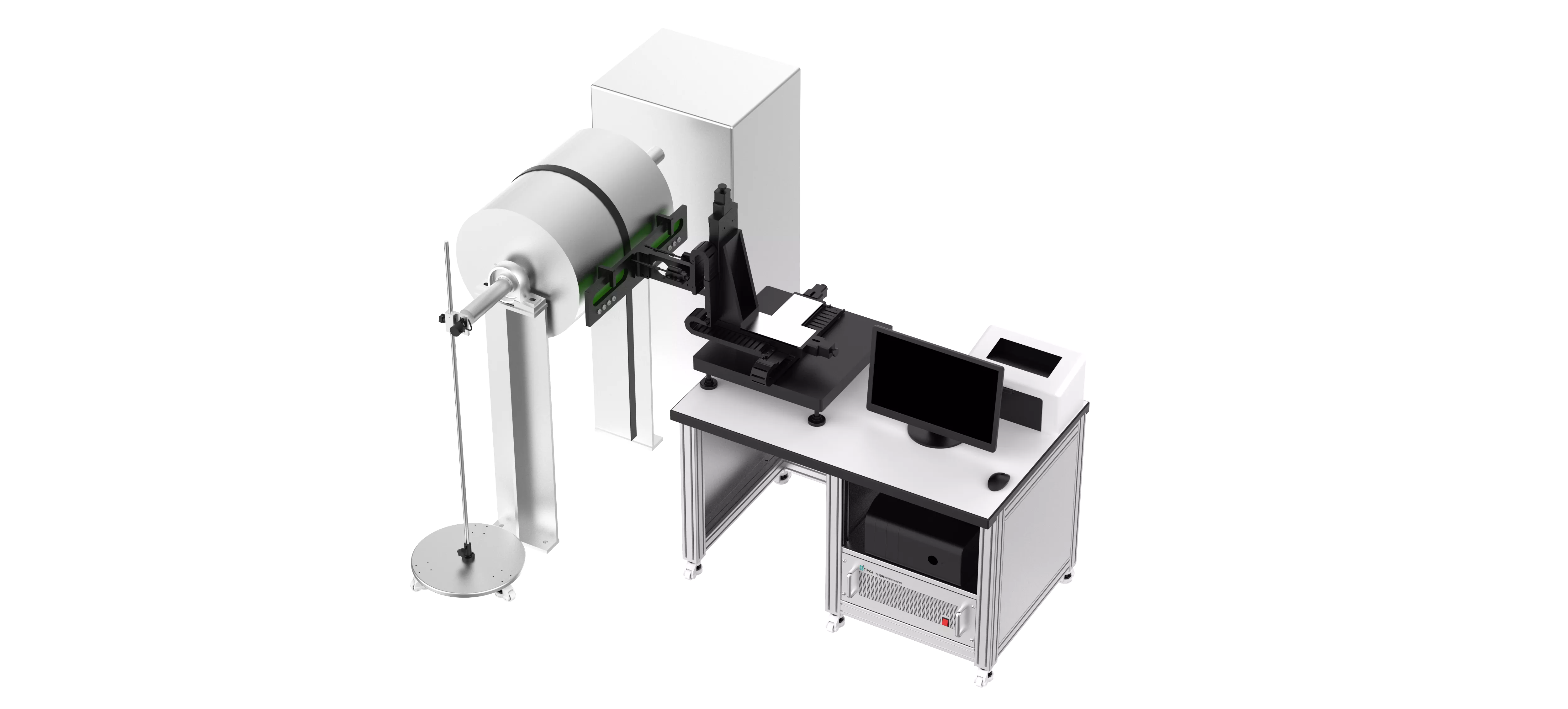

TY2500 Multi-Probe Surface Magnetic Distribution Testing Device is suitable for measuring the surface magnetic distribution of permanent magnet rotors in wind power generation systems.
The system uses 48-channel hall probes to sample simultaneously, and controls the sensing distance between the probe and the rotor through horizontal and vertical movement.
The frequency converter drives the rotor to rotate to scan the magnetism of the rotor surface.
The PC simultaneously draws a 2D diagram of the surface magnetic field distribution. After the test is completed, it can output the 3D diagram.
The computer can display, print and store measurement data, curves, magnetic field distribution diagrams and test reports, etc.
