▶ Residual oil measurement of the vaporous oil content from 0,001…5 mg/m³, 3…9 bar
▶ High-precision PID-Sensor, innovative „Forced Pressure Variation“ measuring method, with integrated display,
▶ With 4...20 mA analog output and digital Modbus RTU interface, incl. calibration certificate

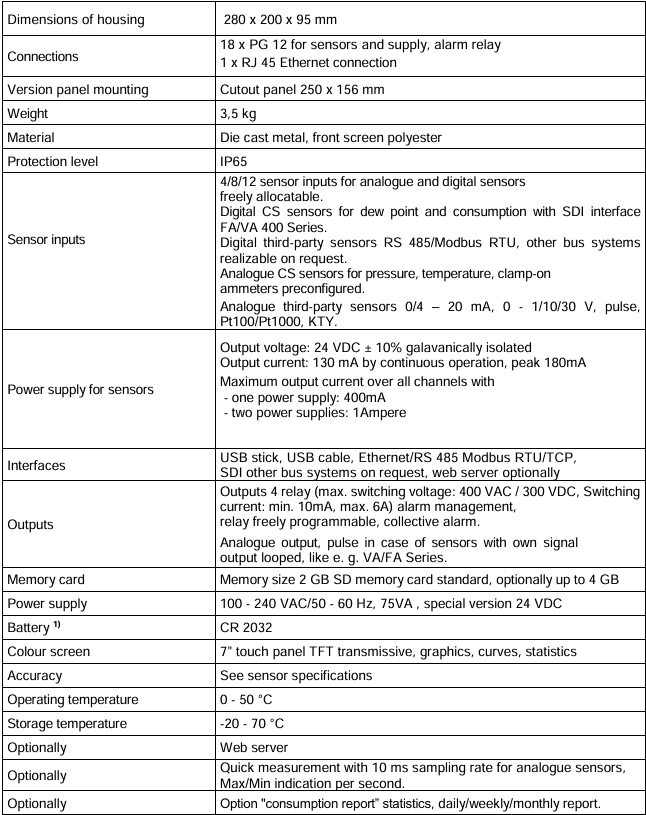

► 깔끔한 레이아웃: 터치가 가능한 7"의 컬러스크린
► 다용도 기능: 12개까지의 추가적인 센서 연결
► 산업의 적용에 적절: Metal housing IP 65 또는 panel mounting
► world wide web 을 통해 데이터 이용가능: 웹 서버를 통한 호환네트워크와 원격전송제어
※ For industry and laboratory application only

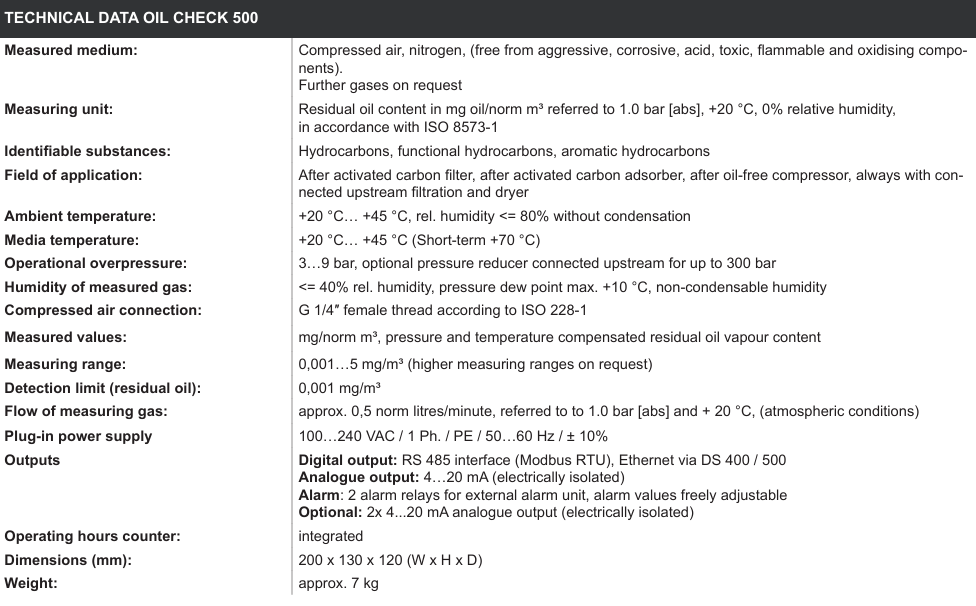

Residual oil measurement - OIL CHECK 500
Permanent, highly accurate measuring of the vaporous residual oil content from 0.001 mg/m³ to 5 mg/m³. Due to the low detection limit of 0.001 mg/m³, compressed air quality class 1 (ISO 8573) can be monitored.
PC 400 particle counter
The high-precision, optical particle counter PC 400 measures particles from a size of 0.1 µm and is therefore suitable for monitoring compressed air quality class 1 (ISO 8573).
Residual humidity - dew point sensor FA 510
The FA 510 measures the pressure dew point down to -80 °Ctd. Here too, continuous measuring ensures that an alarm can be triggered immediately if the compressed air dryer fails.
