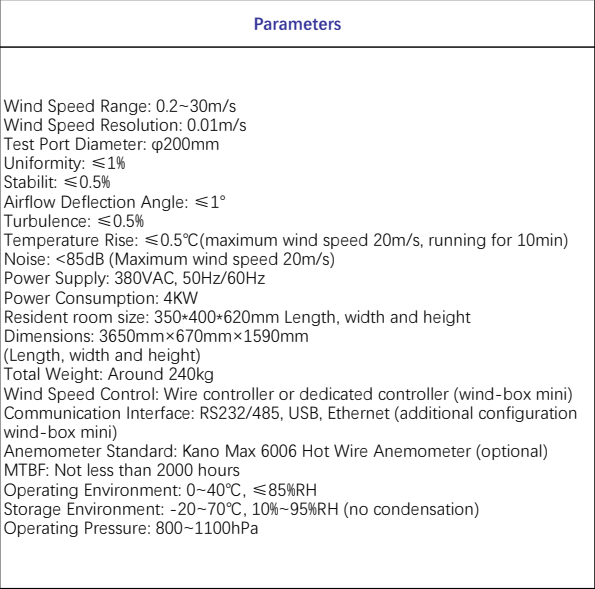

► Wind Speed Range: 0.2~30m/s
► Wind Speed Resolution: 0.01m/s
► Test Port Diameter: φ200mm
► Uniformity: ≤1%
► Stabilit: ≤0.5%
► Airflow Deflection Angle: ≤1°
► Turbulence: ≤0.5%
► Wind Speed Control: Wire controller or dedicated controller (wind-box mini)
► Communication Interface: RS232/485, USB, Ethernet (additional configuration wind-box mini)
※ For industry and laboratory application only
The WZ820030-E open-jet wind tunnel is a small wind tunnel developed for low-velocity applications, based on the ne eds of customers in the tobacco, HVAC, and other industries. It has a wind speed range of 0.1~30m/s and is suitable fo r manually testing various small anemometers.
The WZ820030-E open-jet wind tunnel includes the WZ series wind tunnel, equipment platform, wind tunnel power dis tribution cabinet, wired controller (DSR-THP-RA temperature, humidity, and pressure recorder and windboxmini wind t unnel controller are optional). Other equipment can be expanded according to customer needs, such as a serial server, wireless router, differential pressure gauge, and heat wire meter.
