1050 Pt100 Simulator
1050 Pt100 Simulator
1050 Pt100 Simulator
1050 Pt100 Simulator 모델명: 1050 Pt100 Simulator

1050 Pt100 Simulator

► –100 °F to +1000 °F

► ± 0.5 °F accuracy

► Based on ITS 90 EN60751

► 23 set points

► Exceeds class A

► Good temperature stability

► Passive resistance source

제품 카달로그
제품 메뉴얼
견적문의
제품특징
상세사양

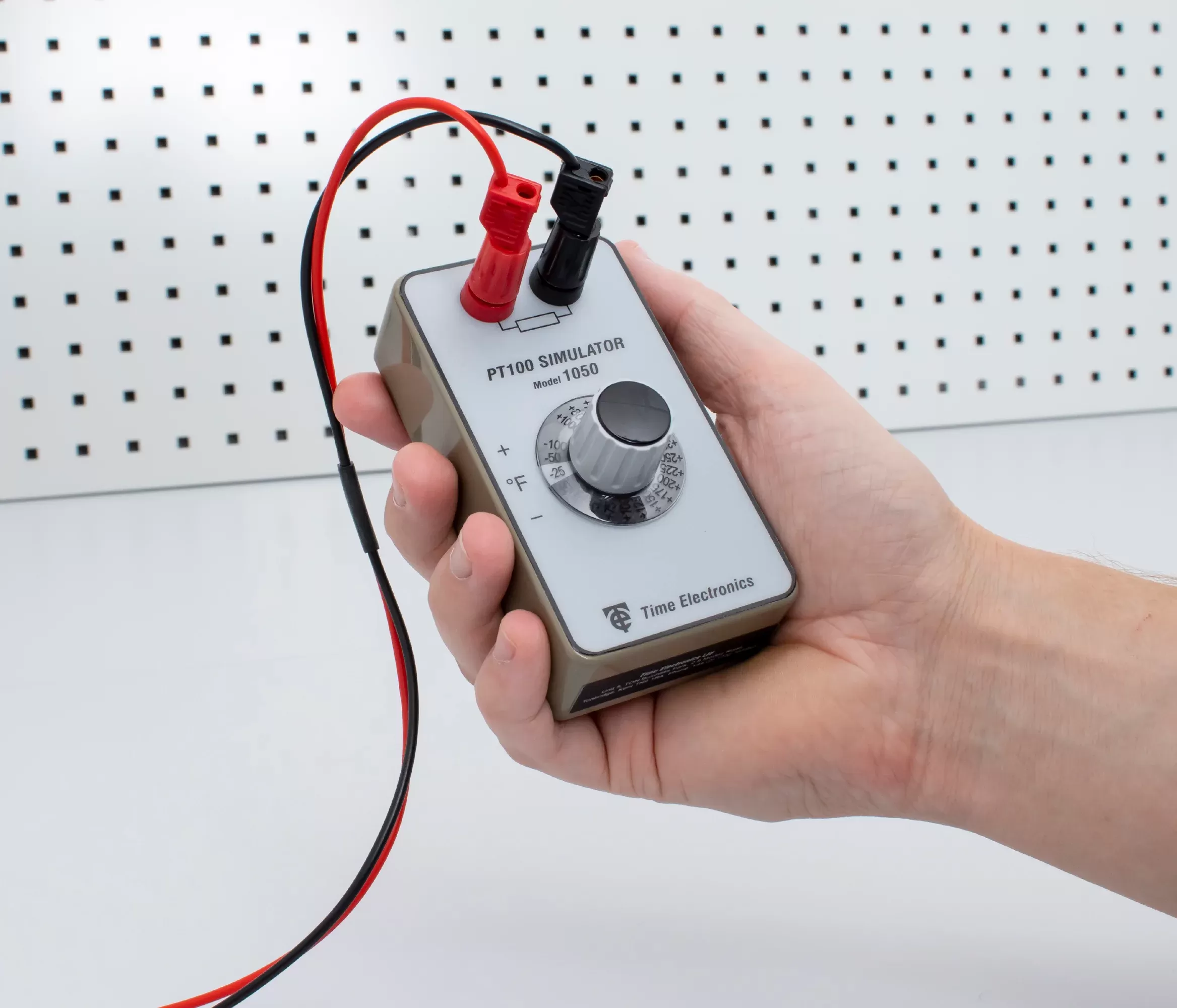

The 1050 is a handheld precision simulator for Pt100 0.3850 platinum resistance elements used for accurate temperature measurement.

It follows the Pt100 scale from -100 °F to +1000 °F with 23 set points. High performance metal film resistors are used to ensure a good temperature coefficient and long term stability.

The specification is in accordance with DIN EN 60751 (ITS 90).

Offering high accuracy across the full operating range of Pt100 devices it exceeds the performance of Class A and B. The 1050 will be of particular interest to those operating in the -80 to +140 °F range and requiring performance exceeding class A (better than ± 0.3 °C at 0 °F).

Since the 1050 output is a purely passive resistance it will operate with all types of Pt100 measuring equipment including the live systems using pulsed, or interrupted excitation current.

The pocket sized design (112 x 61 x 55 mm) makes it easily portable for field use. The instrument is supplied as standard with a carry case.
