1065 Power Resistance Decade Box
1065 Power Resistance Decade Box
1065 Power Resistance Decade Box
1065 Power Resistance Decade Box 모델명: 1065 Power Resistance Decade Box

1065 Power Resistance Decade Box

► 0.1 Ω to 120 kΩ

► 1 % accuracy

► 10 W per resistor dissipation

► Residual resistance < 20 mΩ

► In-line readout

► Mechanically/electrically robust

► Fully screened

제품 카달로그
제품 메뉴얼
견적문의
제품특징
상세사양

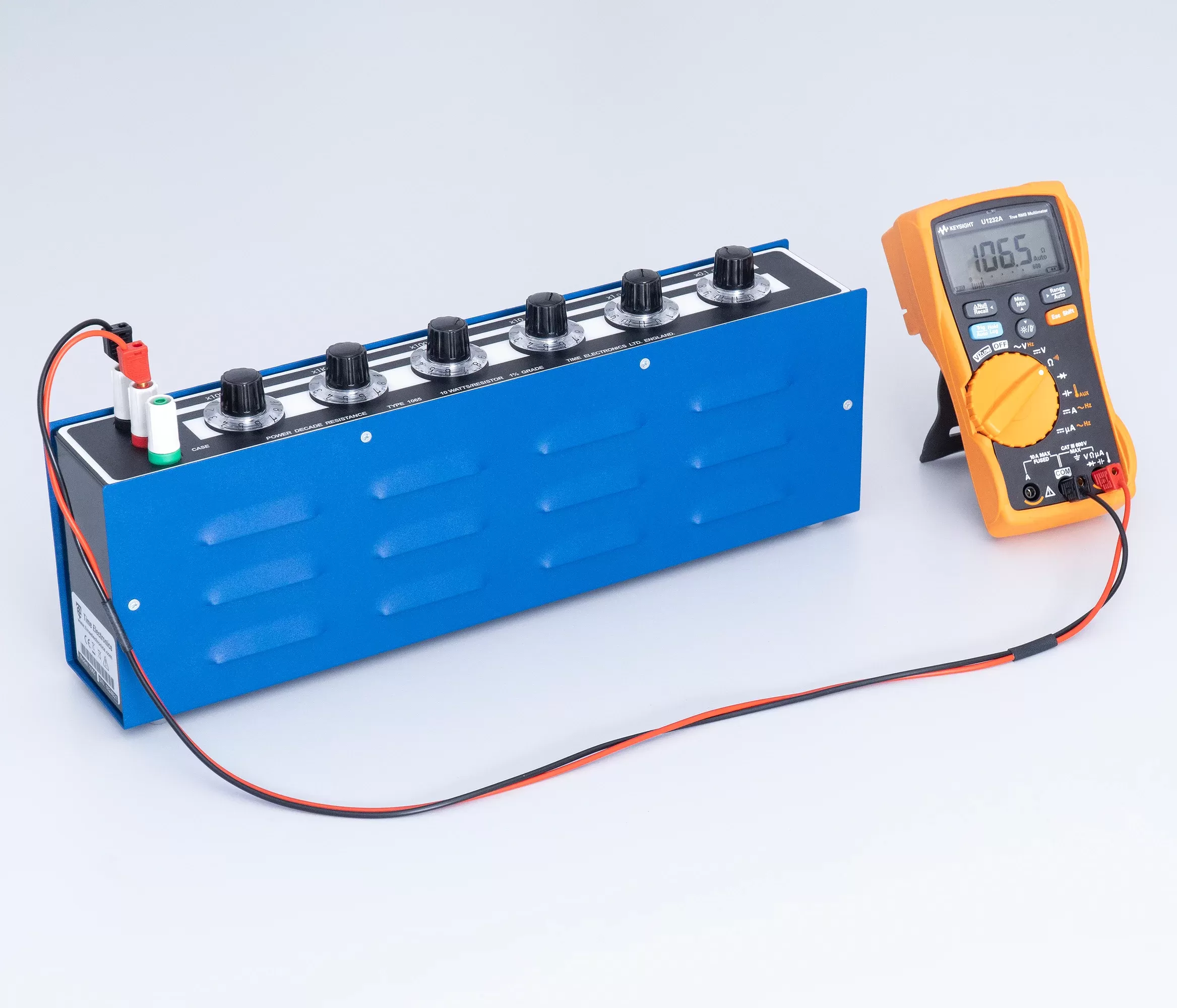

A power resistance decade box designed to meet the standard for industrial use and technical education purposes.

Housed in a robust ventilated case, the 1065 can withstand arduous use whilst maintaining accuracy and reliability.

The slimline design means it takes up minimum bench space and is easily transportable.

The high dissipation of 10 watt per resistor make the 1065 suitable for power electronics applications, and the 500 V maximum working voltage is ideal for select-on-test use in high voltage circuits.

Resistance selection is quick and easy via the rotary knobs.

Switch contact resistance has been kept to a minimum by the use of multi-wafer switches, each with four parallel, silver-plated, self-cleaning contacts.
