A compact 5 fixed value resistance box designed for industrial, general laboratory, and education requirements.

Housed in a robust case the 1068 is easily portable and takes up minimal bench space.

Being a low cost and simple operation instrument it is a popular model for physics and electronics laboratories in universities and schools.

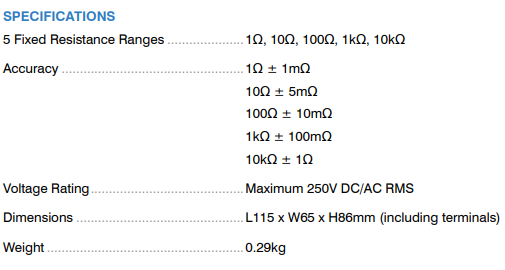

The high accuracy obtained in the 1068 is achieved by the use of precision resistors.

To select a value simply connect test leads to one of the fixed value resistors; 1Ω, 10Ω, 100Ω, 1kΩ, or 10kΩ.

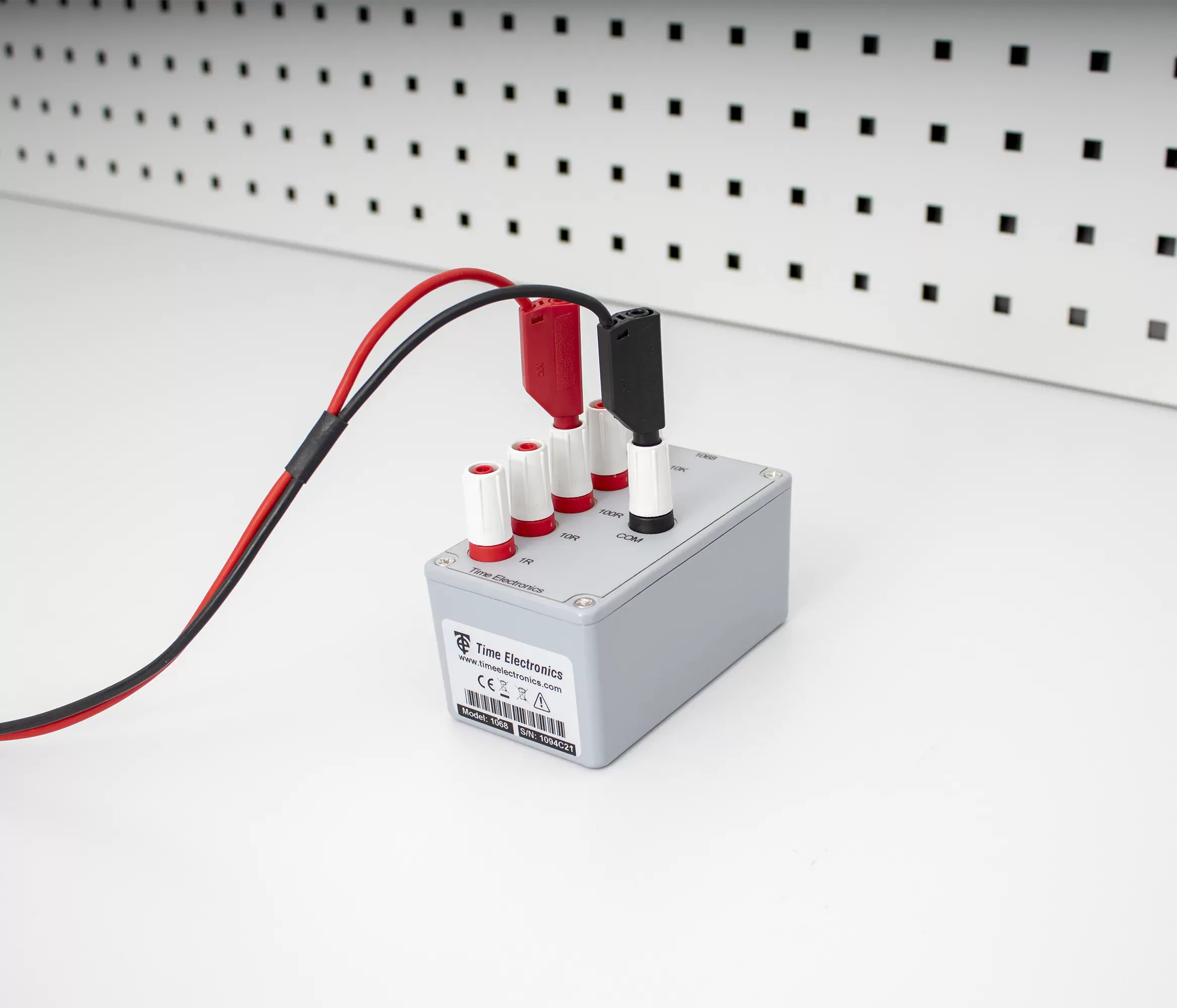

Connection to the box is via 4 mm binding posts and the values are clearly indicated beside each terminal.
