A precision DC current source for calibration and test applications from nanoamp levels to 100 mA.

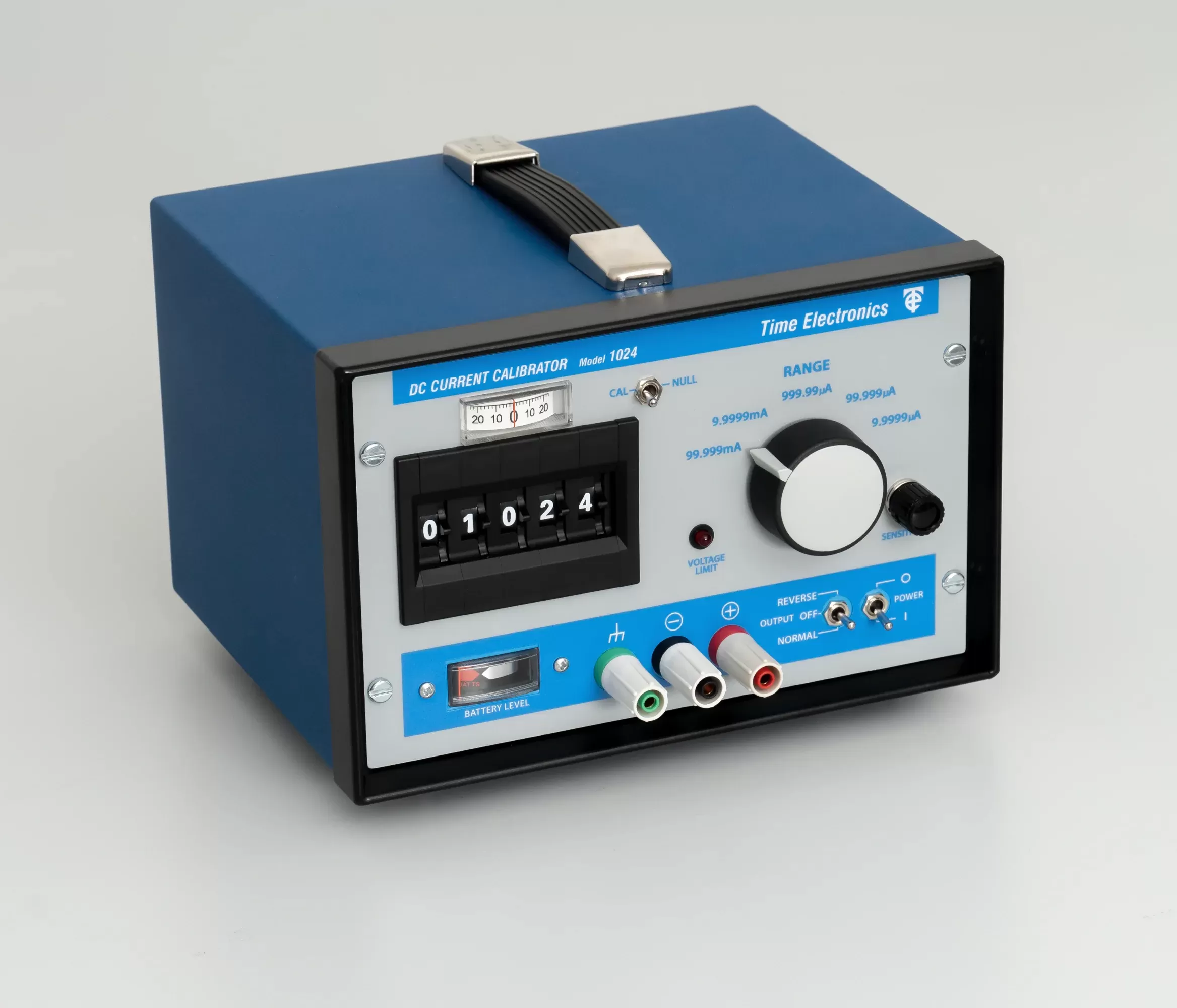

The 1024 is a solid state battery powered instrument which is easily portable and convenient for laboratory, field, or industrial use.

It incorporates many of the well-proven circuit techniques of the Time Electronics 1010 DC voltage calibrator.

The null balance system enables the 1024 to be used for making accurate current measurement in addition to its basic function as a calibrator.

Operation is by backing the current source output against the current to be measured, with the difference being displayed on a sensitive centre zone null meter.

At the null point, there is no voltage drop across the 1024.

Stability and Temperature Coefficient: The 1024 employs a precision aged reference diode as a basic reference source.

Excellent zero stability is ensured by the use of a high performance FET chopper amplifier system.

Precision metal film resistors with temperature coefficients of less than 10 ppm per °C are used to maintain the accuracy and stability of the initial calibration.
